Place of Origin:
China
Brand Name:
YUYANG
Certification:
GB/T3903.2
Model Number:
YY1503

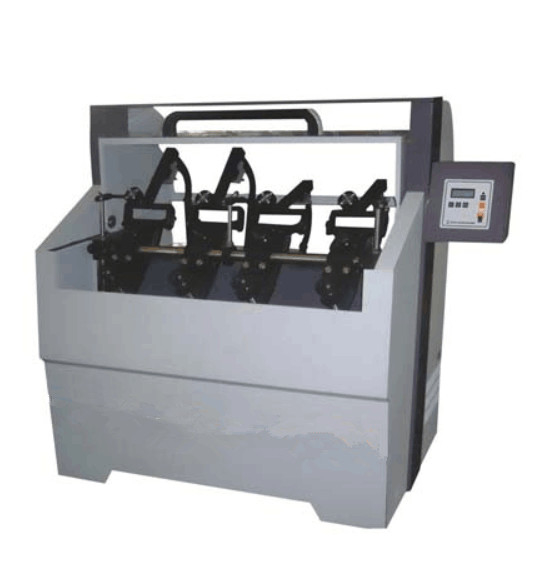

LCD Display Shoe Flexing Footwear Testing Equipment Flexing Angel 30° 45° 60° 90°
Description:
This tester is used to determine the flexing durability for whole shoe or shoe sloe at room temperature. Flex the specimen under a specified angle and frequency to assess its cracking degree and observe the change of it`s upper.
The number of flex cycles can be set and displayed on the control panel;The counter and the machine will stop automatically when the set value has bee reached;The protective shield is equipped for safety operation and noise reduction;A fan is installed on each set of clamps to prevent shoes from changing characteristics caused by high temperature during flexing.
Specification:
Testing sample quantity : 4pcs shoes
shoes size: 18 ~ 45
Bending Angle: 50° , 30 °, 45 °, 60 °, 90 ° (adjustable)
The test speed: 50 to 150 r/min
Allow the specimen length: 150 ~ 400 mm
Allow the maximum width of the specimen: 150 mm/each (MAX)
Counter : LCD display 0 ~ 99999999 adjust
Motor : DC1/2 HP
Product: 97 * 77 * 77 cm
Weight: 236 kg
Power : 1∮,AC220V,2.8A
Function:
1. Setting blending times and show actual blending times,reach the setting number,the machine will automatically stop .
2. Bleeding speed convenient adjustment ,high control precision .
3. The Two groups can be set different test angle .
