Place of Origin:
China
Brand Name:
YUYANG
Certification:
AATCC-15、GB/T 3922、ISO-105EO4
Model Number:
YY1505

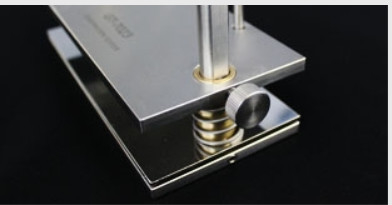

Professional Footwear Testing Equipment Acrylic Plate Perspiration Tester
Description:
Completely and averagely soak specimen into acid and alkaline artificial sweat liquid for 30 minutes. Use the meter to press it then put into oven at temperature of 37°C for 4 hours. Take out specimen from oven to appraise grade of dry-endurance against comparison of grey scale mark after dry.
Specification:
|
Specification |
Specimen |
Acrylic plate |

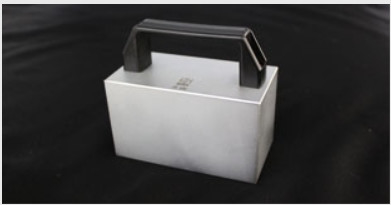

Load |
|
ISO |
40×100 mm |
115×60×1.5 mm(D) |
5 kg |
|
JIS (A) |
60×60 mm |
115×63×1.5~3mm(D) |
4.6 kg |
|
JIS (B) |
40×100 mm |
155×63×1.5~3mm(D) |
5.1 kg |
|
AATCC |
60×60 mm |
_ |
4.5 kg |
|
Model |
AATCC |
JIS |
|
Dimension (W×D×H) |
196x77x220 mm |
142x74x244 mm |
|
Weight |
8 kg |
|
Accessories such as the different grips, elongation measuring-devices..., etc. are
equipped according to the requirements specified in the contract; our sales
representative will also give the proper suggestions to the customers beforehand.
