Place of Origin:
China
Brand Name:
YUYANG
Certification:
ISTA 1A, ASTM D999
Model Number:
YY1409

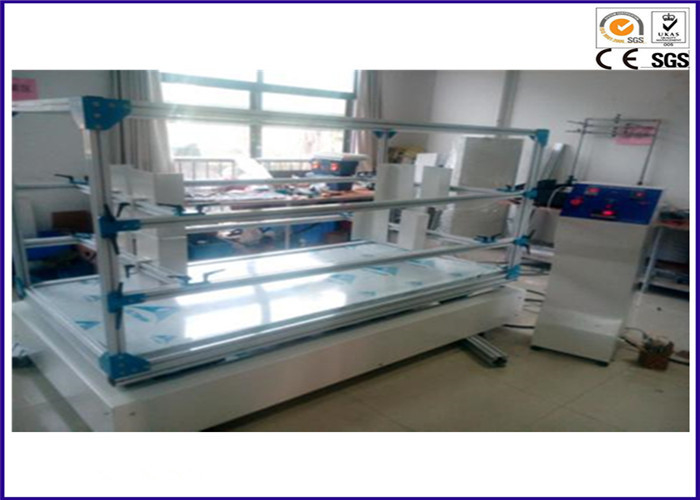

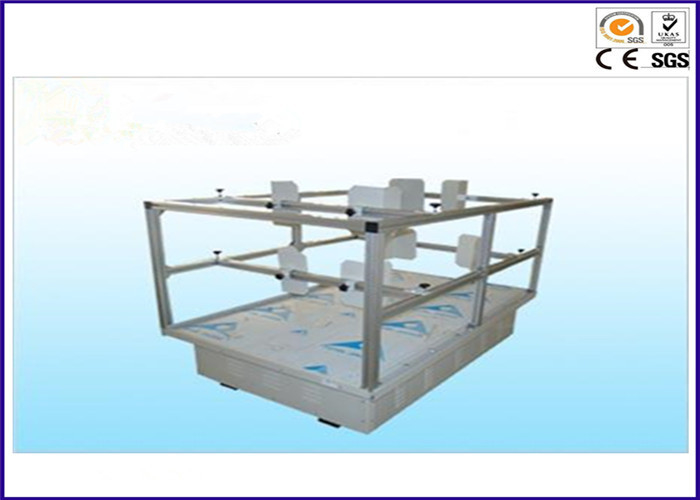

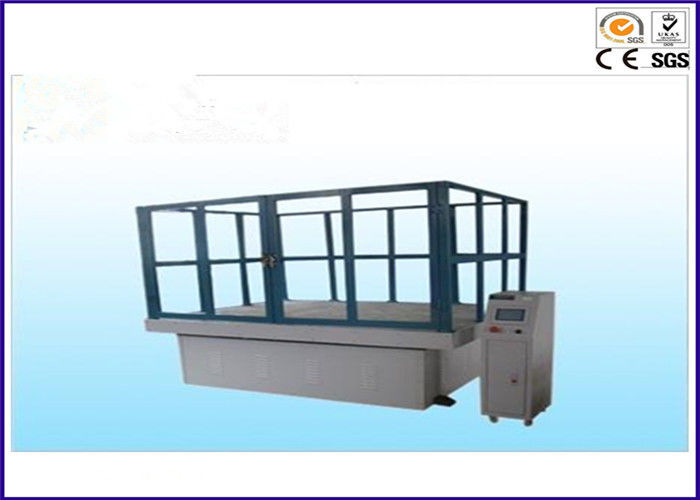

ISTA 1A, ASTM D999 Large-scale Package Vibration Testing Equipment Simulate Transportation
Description:
Vibration Test Instrument is used for testing the vibration resistance of large furniture, home appliance,toys,electronics,gifts,packaging etc. Also can be used for simulating the transportation under vibration.
Stainless steel working table.Adjustable speed electrical machine supply powerful motive power,strong loading ability.
Synchronous belt transmission,heavy channel beam base equipped with damped rubber, stable running, low noise.
Digital display the vibrate frequency and test time.Intelligent time relay to set the running time.
Standards:
ISTA 1A,,ASTM D999
Specifications:
| Item | Specification |
| Allowed max load | 500 kg |
| Vibration speed | 100CPM-300 CPM |
| Vibration range | 1 inch(25.4 mm) |
| Vibration type | Rotary Motion |
| Simulation speed | 25km/h-40km/h |
| The worktable size | 2000mm*1000mm (L*W) |
| Barrier height | 1000 mm |
| control motor | AC frequency conversion motor |
| The power supply voltage | 380 v, 50 HZ,3 A |
| The machine weight | About 350 kg |
| The whole machine size | 2100 mm * 1100 mm * 1450 mm (L*W*H) |
