Place of Origin:
China
Brand Name:
YUYANG
Certification:
BS 3424/5690，IWTO 40-88，BS EN 388/530，IWSTM 112/196，ASTM 4966/4970, IS 12673，JIS L1096, SFS 4328，PR EN ISO 12947-1，PR EN ISO 12945-2，SATRA TM31，ISO 20344
Model Number:
YY833

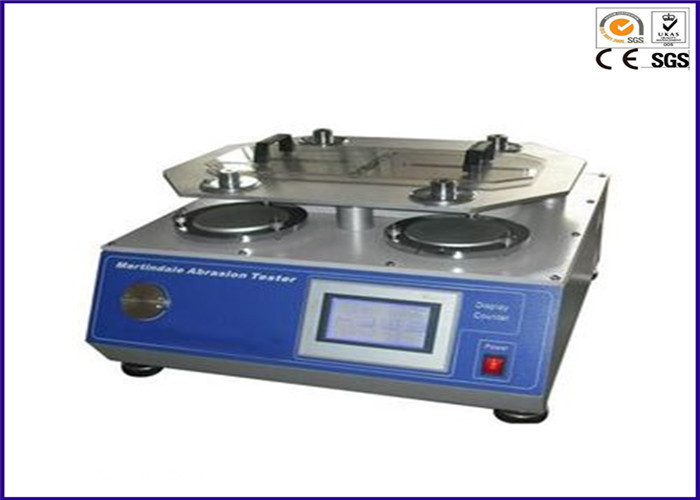

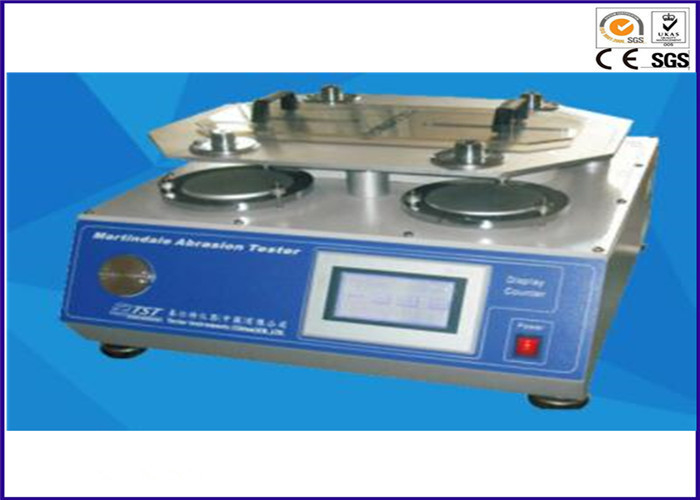

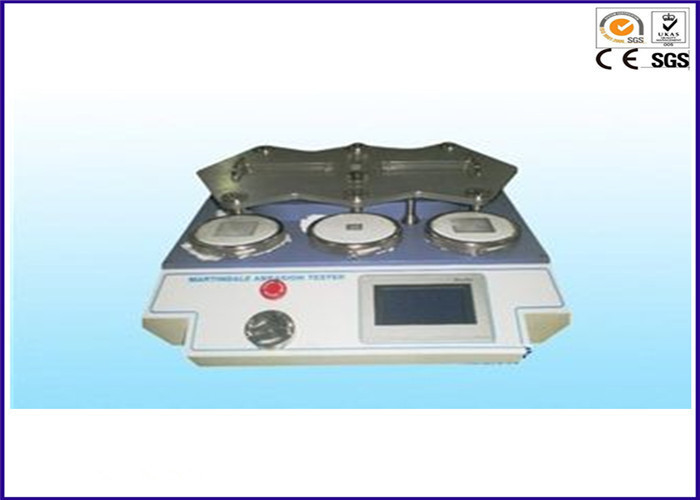

LED Display Martindale Abrasion and Pilling Tester for Textile Resistance
Description:
To determine the abrasion and pilling resistance of all kinds of textile structures.Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters. .
The tester is equipped with electronic preset batch counter, timer and pooled sample clips and load device (compatible with international testing standards)
Main technical parameters:
Testing Head: 8 (or 4 and 6 head could be selectable)
Display: LED
Accumulate count: 1~999999
Dimensions (L x W x H) 880×600×410mm
Power supply AC380V, 180W or AC220V, 180W
Pressurized material weight:
(a) wear resistance test: clamps component 200 ± 1g, cloth sample hammer 395 ± 2g , furniture decorations specimen hammer 594 ± 2g.
(b) pilling test: gripper assembly 155 ± 1g, heavy punch 260 ± 1g
Relative velocity 50 r / min
Effective friction diameter:
(a) wear resistance test: φ28.8mm (b) pilling performance test: φ90mm
Standards:
S 3424/5690,IWTO 40-88,BS EN 388/530,IWSTM 112/196,ASTM 4966/4970, IS 12673,JIS L1096, SFS 4328,PR EN ISO 12947-1,PR EN ISO 12945-2,SATRA TM31,ISO 20344
Accessories:
ballot sheet 1pcs, bowl shape specimen kit 1pcs,O-rings( 4,6,8), Abrasion weights kit(4,6,8), Pilling weights kit(4,6,8), power line 1pcs
Optional purchase consumables: wool fabric, felt, sponge, EMPA, scale, SM50 scales
Weight: Net weight: 102KG, Gross weight: 124KG
Plywood box size: 102*87*47cm
