Place of Origin:
China
Brand Name:
YUYANG
Certification:
IS9873-4, ISO 8124-4 6.1.2&6.1.4
Model Number:
YY668

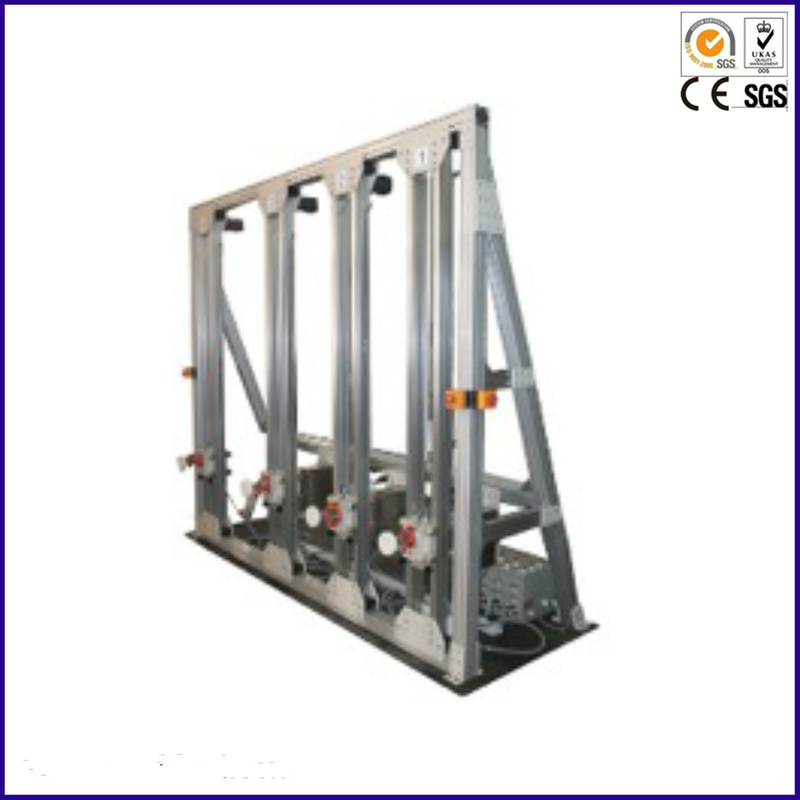

IS 9873-4 ISO 8124-4 6.1.2 Swings and Activity Toys Stability Tester-Horizontal Thrust Tester
Description:
This instrument is used to test the stability performance for activity toys and swings.
Principle:
A horizontal force is applied at the top of the toy to simulate a child climbing on the toy, observe whether the toy tips over.
A horizontal force is simultaneously applied at each suspension point to simulate the horizontal forces created by pendulum effect, observe whether the toy tips over.
Standards:
IS9873-4, ISO 8124-4 6.1.2 Stability of activity toys with a free height of fall of more than 600 mm (see 4.5.3);
ISO 8124-4 6.1.2 6.1.4 Stability of swings and other activity toys with crossbeams (see 4.7.1)
Specification:
Force capacity: 3kN
Force loading direction: horizontal
Force loading actuator: four stations
Force accuracy: dynamic ±5%
Force resolution: 1/1000
Loading stokes: 28cm
Force loading point height: 30~180cm
Test speed: 0~500mm/min adjustable
Rise and up speed: 800mm/min
Time: 0~9999 adjustable
Force control: closed-loop control
Motion: Servomotor
Control: PC+ professional test software
Dimension (WxDxH): 280x120x240cm
Weight: ≈650Kg
Power: 1∮ AC 220V 50Hz 3A
