Place of Origin:
China
Brand Name:
YUYANG
Certification:
GB, ISO, JIS, ASTM, DIN
Model Number:
YYL-008

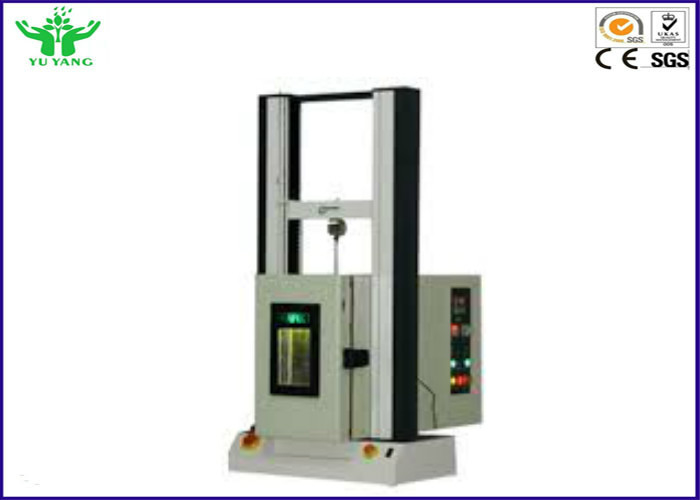

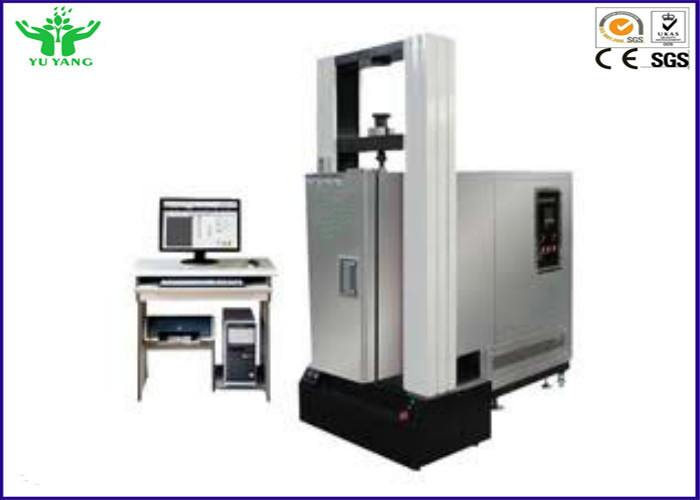

1000mm High and Low Temperature Tensile Test Machine For Wire 200KN
Product introduction:

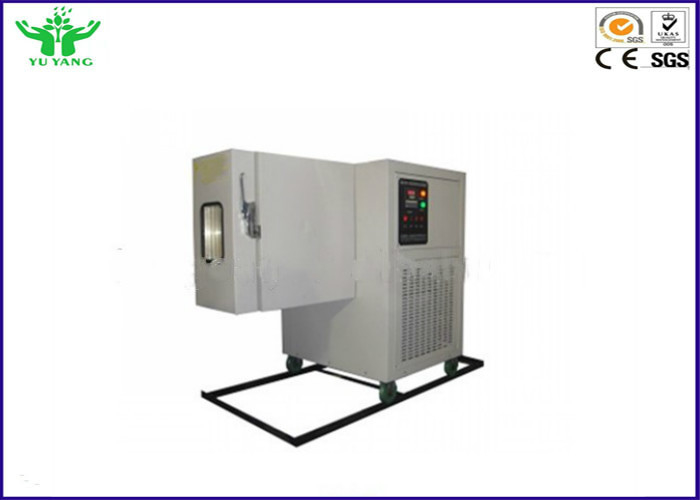

Completion-aided test devices of the high and low temperature tensile test machine: special high and low temperature box (temperature humidity chamber), temperature-protected sensor, high low temperature fixtures, sliding auxiliar.Two cooling options for highlow temperature box: electronic cooling and liquid- nitrogen refrigerating.Application in 200KN-below mechanical material tests under high and low temperature: stretching, peeling, tearing, compression, bending, shearing, piercing, low cycle fatigue. Mainly used in metal, plastic, rubber, textiles, synthetic chemicals, wire and cable, leather etc.
Temperature range:
1. Temperature range:-70~+150℃ when equipped with high and low temperature chamber;
2. Temperature range: normal temperature ~1000℃ when equipped with high-temperature furnace.
Parameters:
1. Load:1, 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000, 10000, 20000Kg
2. Force resolution:1/100000~1/1000000
3. Force accuracy:≤0.5%
4. Power magnifying multiples:seven segment
5. Displacement resolution:1/1000
6. Displacement accuracy:≤0.3%
Power units : Kg, N, KN, g, lb; displacement unit: mm, cm, inch
7. Metal extensometer resolution: 1/1000
8. Metal extensometer accuracy: ≤0.5%
9. Large deformation extensometer: ±1mm
10. Speed range: 0.001mm / min ~ 1000mm / min (special speed testing customized)
11. Walking space: 1000mm (Holder excluded,special test space customized )
12. Test Width: 400mm (special test width customized)
13. Power supply:220V 50HZ (110V as required)
14. Machine Size: about 500 × 500 × 1800 mm (L × W × H)
15. Machine weight: 250~800KG
| Model | YYL-008-300 | YYL-008-30/300G | YYL-008-60/300G |
| Temperature control range | Room temperature ~ +300°C | +300°C~-30°C | +300°C~-60°C |
| Inside size | 500*500*1800 (for electronic universal testing machine whose pillar span is 400mm and above) | ||
| Model of control temperature | PID automatic temperature control | ||
| Temperature accuracy | 0.3% | ||
| Temperature fluctuation range | ±0.5°C | ||
| Temperature uniformity | ±2°C | ||
| Manner of heating | Magnesium powder heating tube | ||
| Manner of refrigeration | / | single compressor or liquid nitrogen | double compressors or liquid nitrogen |
| View window of hollow heating glass | Yes | Yes | Yes |
| Working power | 380V 50Hz 1kW | 380V 50Hz 2kW | 380V 50Hz 3kW |
Standards:
GB, ISO, JIS, ASTM, DIN
