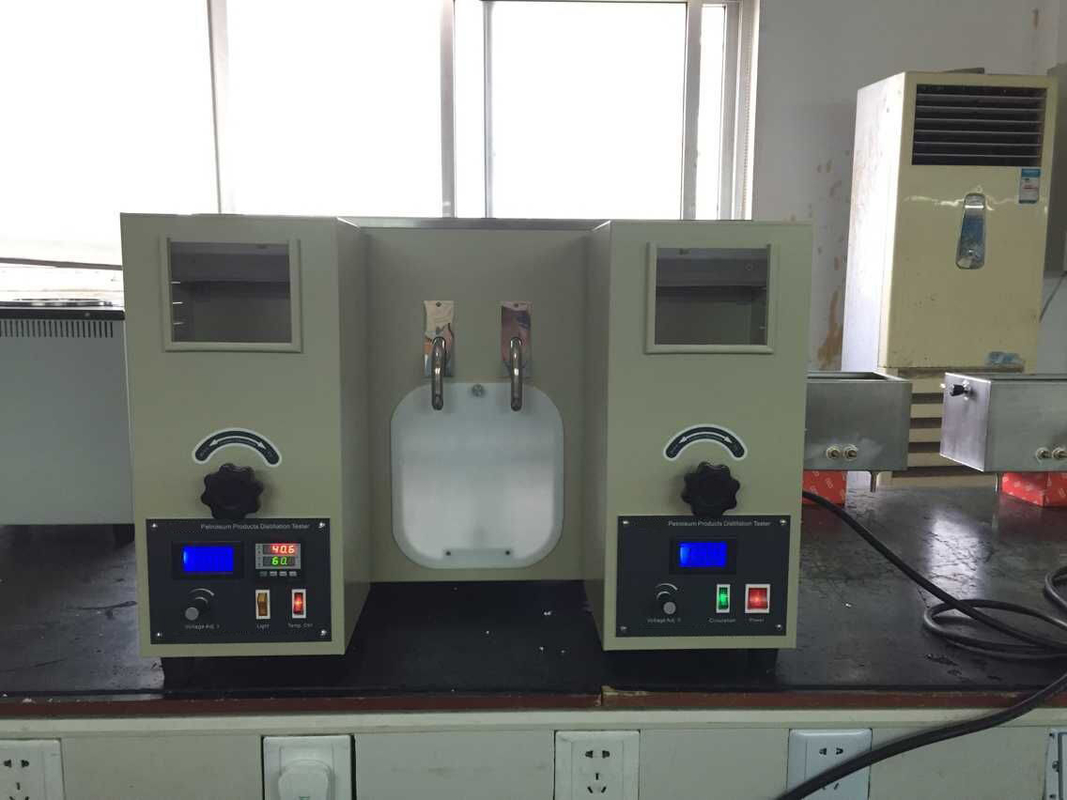

DA-II ASTM D86 Manual Type Distillation Apparatus
Summary
DA-II Distillation Tester is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products.
This instrument is not only suitable to the organizations of high frequency with various of samples but also accelerate the test speed for common users. It is an ideal distillation tester for petroleum products.
I. Main technical features
1.The apparatus adopts double units working mode, can do test for one sample as well as two samples which having the same specification or different specifications.It highly improves the work efficiency.
2.It adopts two groups of independent digital temperature controller, heater, electric stirrer to constitute two constant temperature baths. Each bath temperature can be adjusted and controlled independently.The temperature in the bath is uniform,can fully meet the requirements of test.
3.DA-II Distillation apparatus adopts special heating furnace to ensure the safety of test. Heating power can be continuously adjusted to meet the requirements of test.
II. Main technical specifications
1.Power supply: AC(220±10%)V, 50Hz
2.Heating power: 1000W×2, continuously adjustable.
3.Receiving cylinder: 100ml, division value 1ml.
4.Distillation flask: 125ml,meet the requirements of GB/T 6536 and ASTM D86
5.Thermometer: (-2~300)℃ and (-2~400)℃, division value 1℃
6.Flask support board: SiC, bore diameter φ32mm, φ38mm, φ50mm.

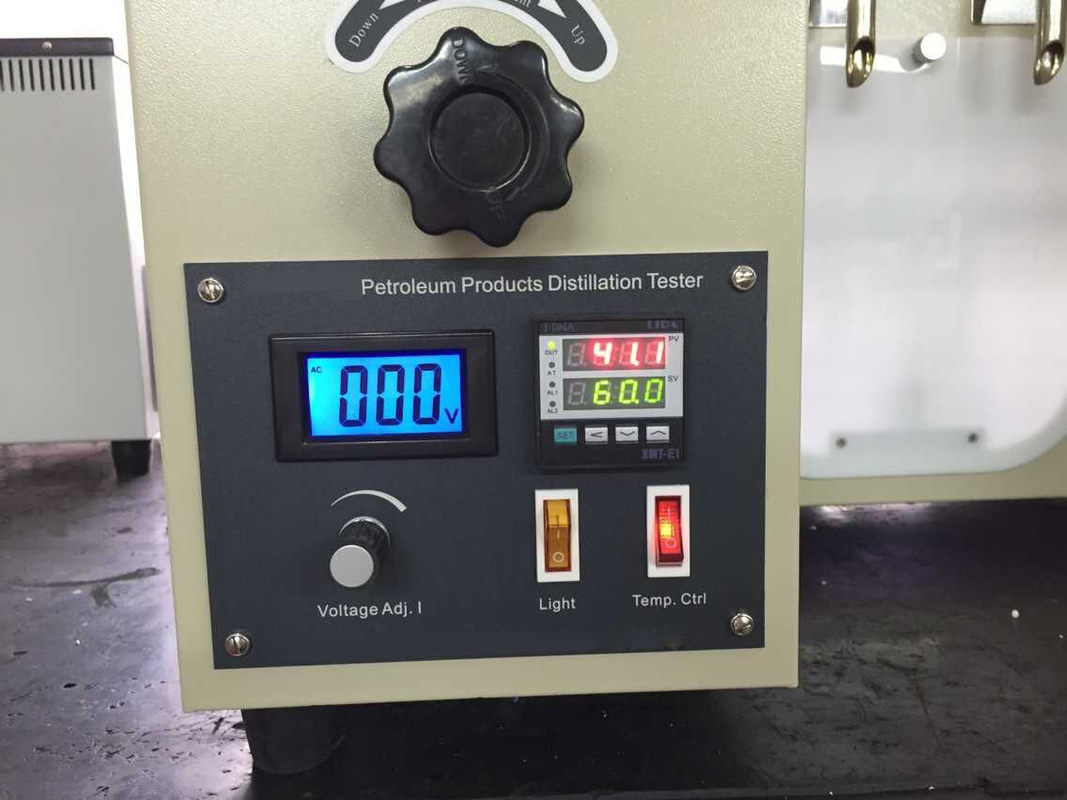

7.Temperature controller: 1) Range: (Ambient +10)℃～60℃
2) Accuracy: ±0.5℃
3) Display: LED
Note: The temperature control is to control the temperature of condensate in the condenser pipe.
8.Ambient temperature: ≤35℃
9.Relative humidity: ≤85%
10.Maximum power consumption: 2200W
11.Dimension:760mm×520mm×500mm
III.Accessories
| No. |
Item |
Unit |
Qty |
Remarks |
| 1 |
Distillation flask (125 ml) |
Piece |
2 |
|
| 2 |
Thermometer (－2∼300)℃,(－2∼400)℃,scale division is 1℃ |
Piece |
2 for each |
|
| 3 |
Glass container (Φ100mm×240mm) |
Piece |
2 |
|
| 4 |
Silica gel stopper (3#) |
Piece |
4 |
|
| 5 |
Silica gel stopper (4#) |
Piece |
4 |
|
| 6 |
Silicon carbide board, pore size Φ32mm,Φ38mm,Φ50mm |
Piece |
2 for each |
|
| 7 |
Graduated flask (100 ml) |
Piece |
2 |
|
| 8 |
Iron block |
Piece |
2 |
|
| 9 |
Test platform (pad under the test vessel) |
Piece |
2 |
|
| 10 |
10 A fuse (Φ5×20) |
Piece |
3 |
|
| 11 |
Condensate pipe outlet cover |
Piece |
2 |
|
| 12 |
Stopping ring for thermometer (1 #) |
Piece |
8 |
|
| 13 |
Observation window glass |
Piece |
2 |
|
