ASTM D189 Conradson Carbon Residue Apparatus Simple Design Accessories Complete

ASTM D189 Conradson Carbon Residue Apparatus Simple Design Accessories Complete

oil analysis machine

oil testing machine

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

ISO

Model Number:

CRT-I

Contact Us
Request A Quote
Product Details
Keyword:
Carbon Residue Tester
Warranty:
1 Year
Color:
Black
Test Standard:
ASTM D189
Test Method:
Conradson
Condition:
New
Highlight:

oil analysis machine

,

oil testing machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
USD600
Packaging Details
Plywood case
Delivery Time
15 days
Supply Ability
100 Sets per month
Product Description

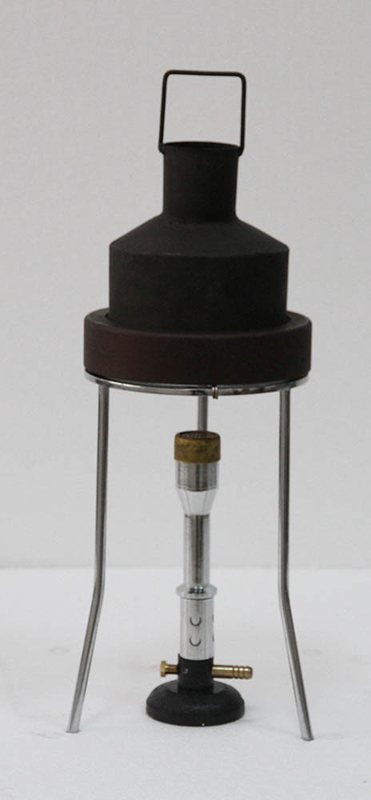

ASTM D189 Carbon Residue Tester by Conradson Method Oil testing Equipment

Summary
The carbon residue tester is designed and made as per national standard of People’s Republic of China GB/T268 Standard Test Method for Carbon Residue of Petroleum Products by Conradson Method. It is used to determine the amount of carbon residue of petroleum products after evaporation and paralysis, so as to check coke forming property of petroleum products. It can also meet requirements of ASTM D189 Standard Test Method for Conradson Carbon Residue of Petroleum Products.

I. Main technical features
1. The design can totally meet requirements of standard GB/T 268.
2. Simple design. Accessories complete. The test can be done as loon as equip civil gas.

II. Main technical specifications
1. Porcelain crucible: About 30ml.
2. Inner iron crucible: About (75±5)ml.
3. Outer iron crucible: About (190±10)ml with cover.
4. Supporter: Height: (250±10) mm Bore diameter: Ф (130±5) mm
5. Flame shield: Diameter of upper port:Ф(90±2)mm
Diameter of lower port:Ф(82±2)mm
6. Round iron cover: The height of underpart is (50~53)mm.
The height of cone in the middle is (25±2) mm.
There is a piece of iron wire as the fire bridge on the top.
The height is (50±3) mm. It is regarded as the indicator of max height.
7. Blowtorch: It adopts gas torch.
8. Dimension: Ф130mm×400mm

III.Accessories
No.ItemUnitQty
1Porcelain cruciblePiece4
2Inner iron crucible with a coverPiece1
3External iron cruciblePiece5
4Outer iron crucible CoverPiece1
5Nickel-chromium wire tripodPiece1
6Flame shieldPiece1
7Roundiron coverPiece1
8BlowtorchPiece1
9TripodPiece1


ASTM D189 Conradson Carbon Residue Apparatus Simple Design Accessories Complete 0
