High Accuracy Specific Gravity Testing Equipment / Specific Gravity Test Apparatus

Product Details

Keyword:

Specific Gravity Tester

Power Supply:

AC(220±10%)V, 50Hz

Test Standard:

ASTM D2401

Volume Of Vessel:

4000ml×2

Size:

510mm×520mm×380mm

Warranty:

1 Year

Highlight:

asphalt laboratory equipment

asphalt content tester

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD10

Packaging Details

Plywood case

Delivery Time

15 days

Supply Ability

100 Sets per month

Rolling Thin Film Oven Test Asphalt Laboratory Equipment

Get Best Price

Bitumen Testing Instruments Marshall Stability Test Apparatus

Get Best Price

ASTM D113 Asphalt Ductility Testing Machine

Get Best Price

Asphalt Ring And Ball Apparatus Softening Point Apparatus

Get Best Price

+86-13825723571

sales002@yuyangtest.com

86-769-26622869

Contact Now

Product Description

Asphalt Test Apparatus ASTM D1665 2 Units Engler Viscometer Viscosity Tester

Summary

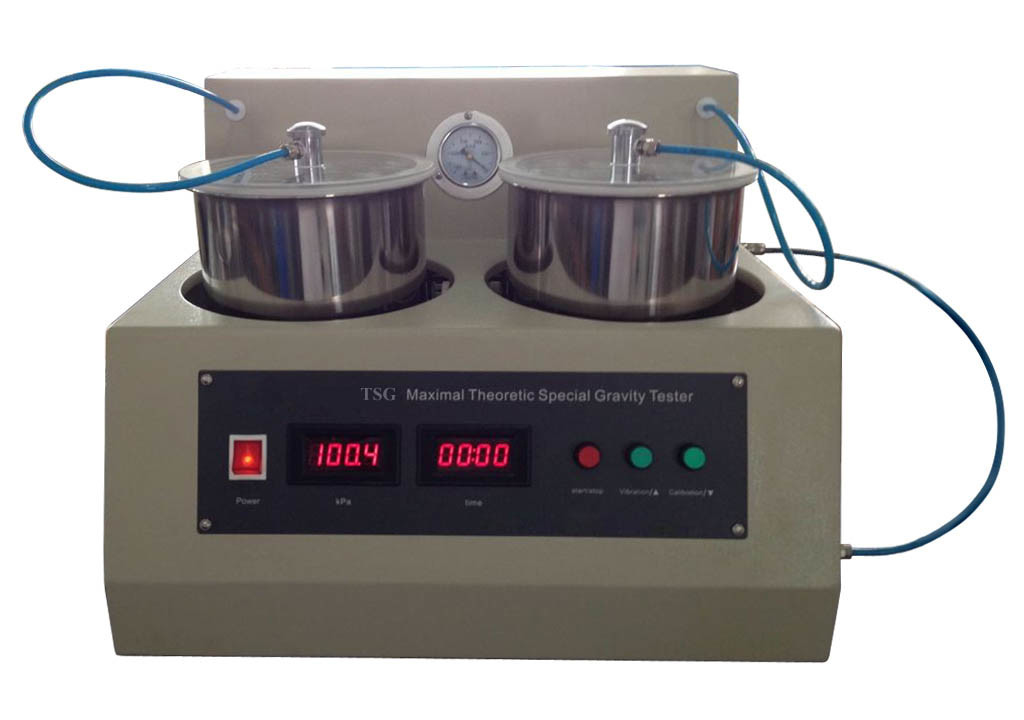

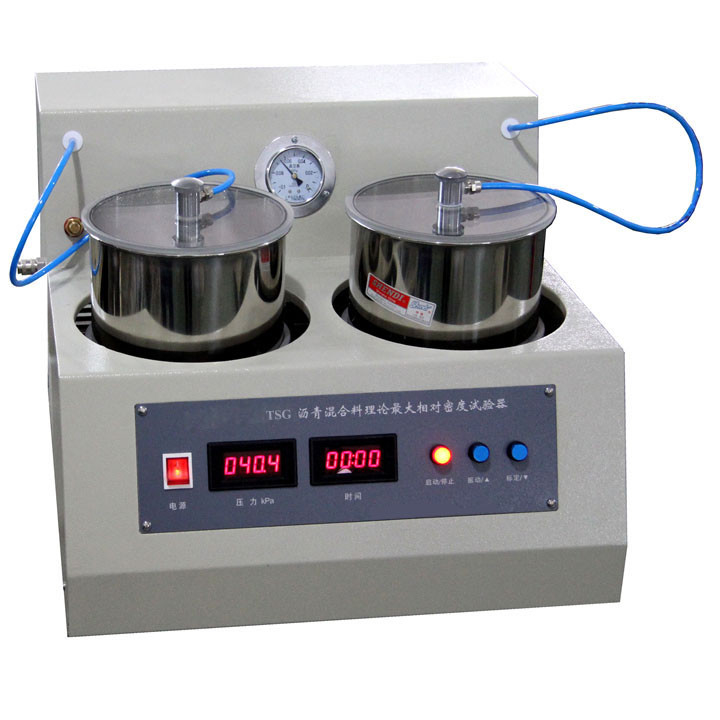

This instrument is designed and made as per T 0711-2011 Standard Test Method for Theoretical Maximum Specific Gravity of Bituminous Mixtures (Vacuum process) in JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering. It is suitable to determine the theoretical maximum specific gravity of bituminous mixtures by vacuum process. It is used to design the ratio of bituminous mixtures, survey the road condition or calculate the void ratio and compactness of road construction. It is not available to determine the lacunose bituminous mixtures which water absorption overs 3%.

I. Main technical features

1. It adopts single chip machine technology to vacuumize, shake, fill air and relieve pressure automatically.

2. Equipped with a high-accuracy absolute pressure sensor, the negative pressure can reach 3.7 kPa±0.3 kPa.

3. The working status of the vacuum pump can be reflected by a vacuum meter.

4. It equips a water buffer device to prevent the water in the negative pressure container from flowing into the vacuum pump.

5. It can determine two samples at the same time. Test efficiency is high. The structure is reasonably designed. It is easy to use.

II. Main technical specifications

1	Power supply	AC (220±10%) V, 50Hz.
2	Volume of vessel	4000ml×2
3	Power of vacuum pump	160W
4	Negative pressure	3.7 kPa(27.75mmHg) Allowable bias is ±0.3 kPa
5	Power of shaking machine	30W
6	Dimension	510mm×520mm×380mm

III. Optional accessory

1. Constant temperature water bath: WB-1 Low-temperature water bath
