Place of Origin:
China
Brand Name:
YUYANG
Certification:
ASTM D1238, ISO 1133
Model Number:
YY166

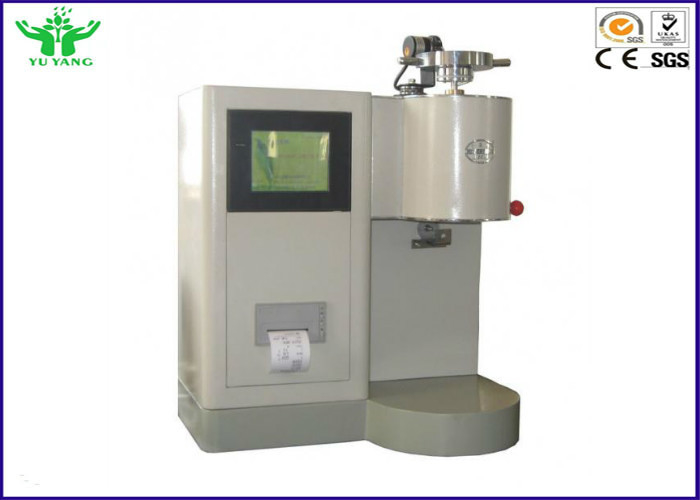

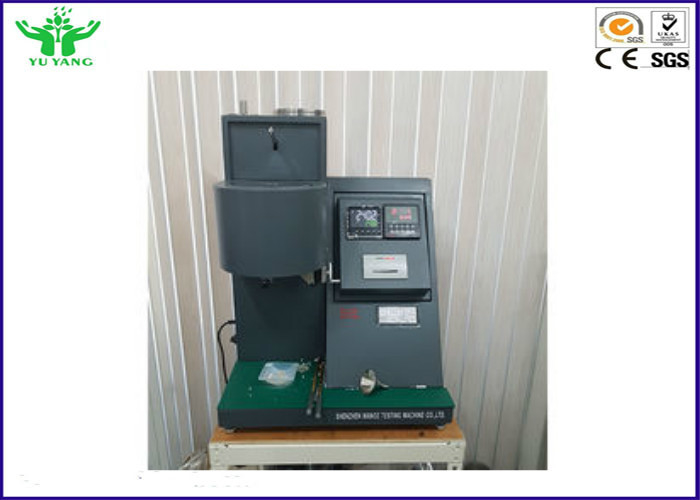

ASTM D1238 ISO 1133 Electric Melt Flow Rate Tester of PP PE Material MFR/MVR
Description:
Melt Flow Index Tester is used to test the flowability of thermoplastic polymer under high temperature, such as polyethylene, polypropylene, pom, ABS resin, polycarbonate, nylon fluorine and other plastic polymers. The automatic temperature control methods of the machine three kinds of blanking ways, manual, timing and automatic control according to operation method, which can realize melt-mass flow rate (MFR) and melt-volume flow rate (MVR) two test methods.
Application:
Melt Flow Index tester is used to determine the MFR value of melt flow rate in the viscous flow state of various polymers, it is applicable to the high melting temperature of polycarbonate, poly-aryl sulfone, fluorine plastic, nylon and other engineering plastics, also applicable to polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, poly (POM), polycarbonate (PC) Resin, such as low melting temperature of plastic testing, widely used in plastic production, plastic products, petrochemical and other industries.
Standard:
ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)...
Specification:
| Testing range | 0.1-800.00g/10min (MFR); 0.1-800.00 cm3/10min(MVR) |
| Temperature range | Room temperature-400°C |
| Controlling Accuracy | ±0.2°C |
| Timing accuracy | 0.1s |
| Displacement accuracy | 0.01mm |
| Standard loads | 325g, 875g, 960g, 1200g, 1640g, 2500g, 4100, 5000g & 5000g |
| Combination load | 325g, 1200g, 2160g, 3800g, 5000g, 7160g, 10000g, 21600g |
| Material cutting method | Manual, timing and automatic cutting |
| Time setting | 0.1~999.9min |
| Cylinder | Diameter 9.5504±0.0076mm |
| Land of piston | Diameter 9.4742±0.0076mm, length: 6.35±0.13mm |
| Thin hole pattern |
External diameter: 9.5±0.02mm; Bore diameter 2.0955±0.0051mm; length 8.00±0.025mm |
| Machine Size | (L×W×H) 40×51×60cm |
| Accessory | One set computer& software, one tool box, one piece operation video CD and one piece English manual |
| Design standard | ASTM-D1238, ISO 1133 |
