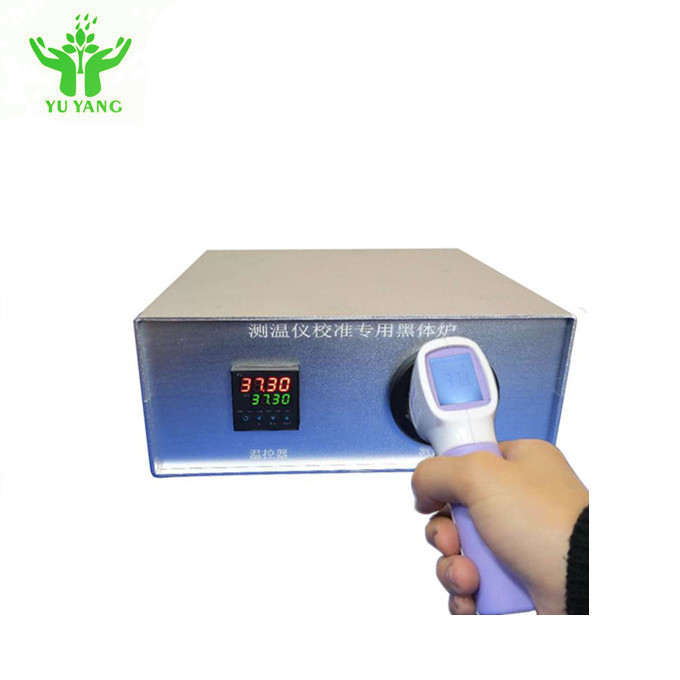

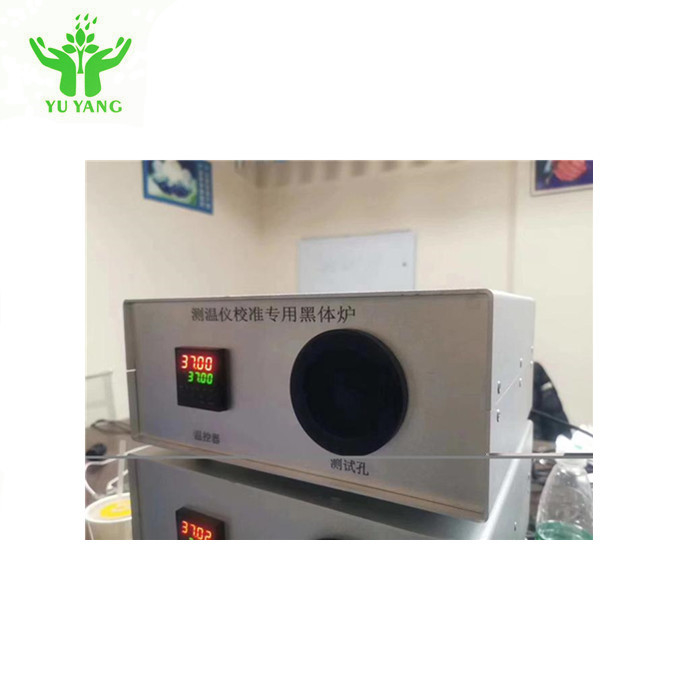

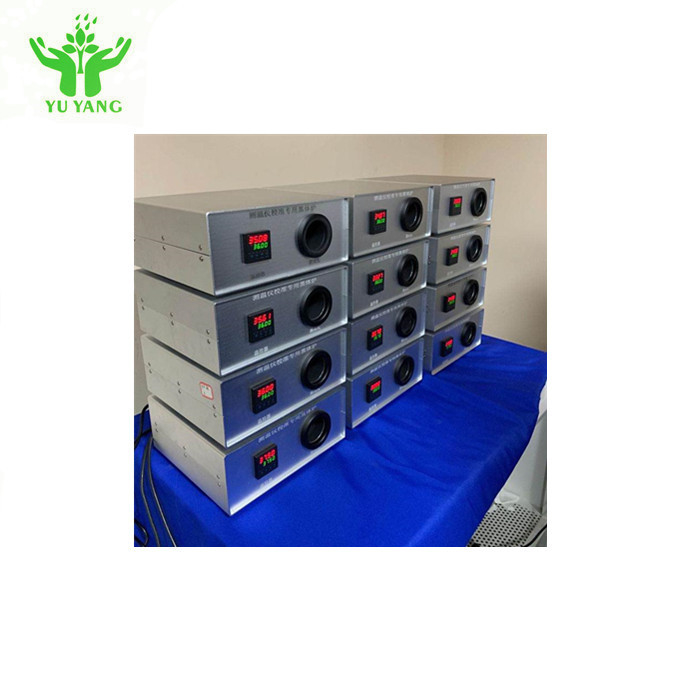

Precision Calibrate Infrared Thermometer Blackbody Furnace Cavity Diameter 56mm

New Style Infrared Thermometer Calibration Instrument Blackbody Furnace

New Style Infrared Thermometer Calibration Instrument Blackbody Furnace 220V AC 50HZ Temperature calibrator

1. Product Description

A precision blackbody (black body) is a controlled source of thermal radiation used to calibrate infrared radiation thermometers (pyrometers), thermal imagers and radiation heat flux gauges and radiometers. It is our ZONHOW R&D and manufactured product which is special used in calibration for Infrared ear temperature gun, forehead temperature gun and medical thermometer. It can also be used for the calibration of infrared body surface screening instrument. Through our main R&D of the temperature cycle system, plus the new materials, the emissivity can reach more than 0.99.

2. Application
Infrared forehead temperature gun,Infrared ear temperature gun,Portable infrared thermometer,Medical thermometer,Infrared body surface screening instrument.

This black body source has been introduced to meet the demand for a simple, cost-effective, but high accuracy calibrator for the calibration of thermal imagers and infrared thermometers used at temperatures near ambient.
A 56mm diameter, ridged plate is heated or cooled with an internal solid-state thermoelectric heat pump. The temperature of the plate can be set from 30°C to 50°C, to a resolution of 0.01°C.


3. Features

• Novel design, LED / touch screen display, easy operation.
• Isothermal blackbody cavity, a cavity mouth, the cavity mouth radiation is uniformly distributed with the spectrum, and the cavity mouth emissivity is above 0.99.
• It adopts automatic heating and temperature control method, which is safe and reliable, fast heating speed and good temperature stability.
• It is easy to use, small in size, light in weight, and easy to carry. It is not only suitable for laboratory calibration, but also for on-site calibration work.
• Using new technology such as double-row digital display of measured value and set value parameter setting, high precision, high function, and strong anti-interference ability.

4. Specifications
