Place of Origin:
CHINA
Brand Name:
YUYANG
Model Number:
YYY8

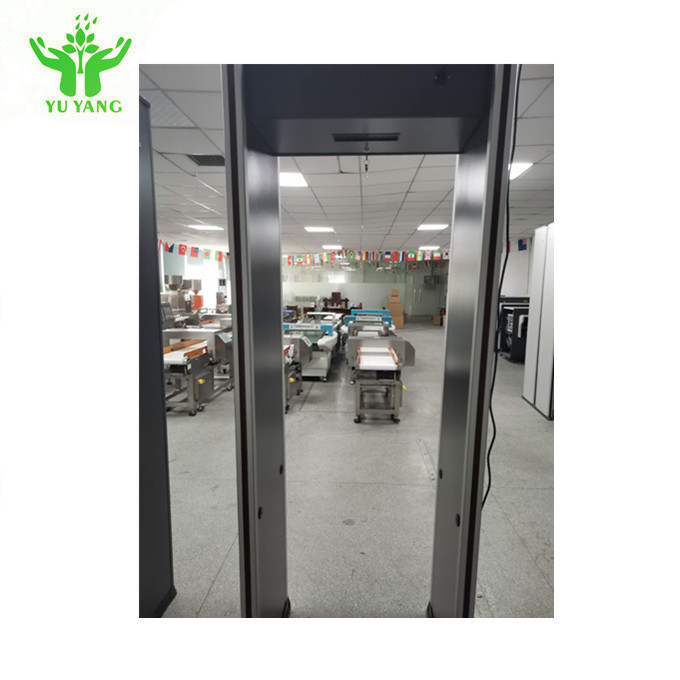

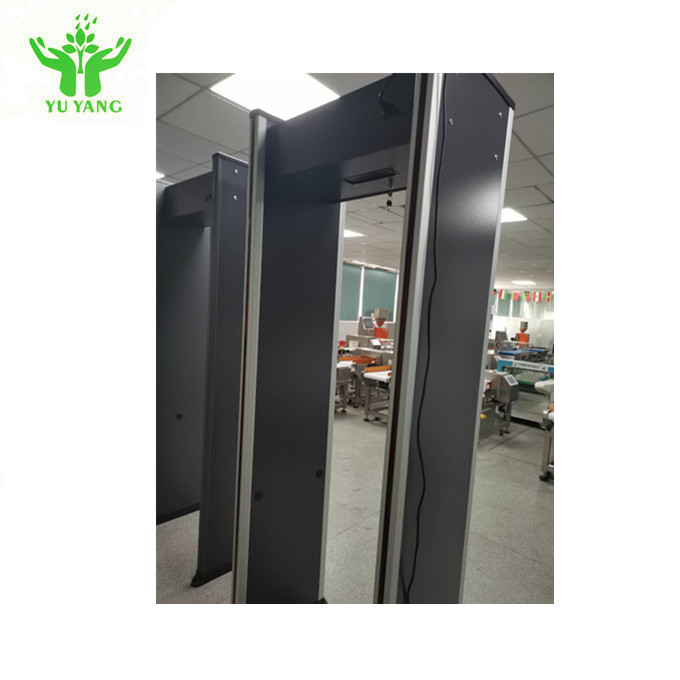

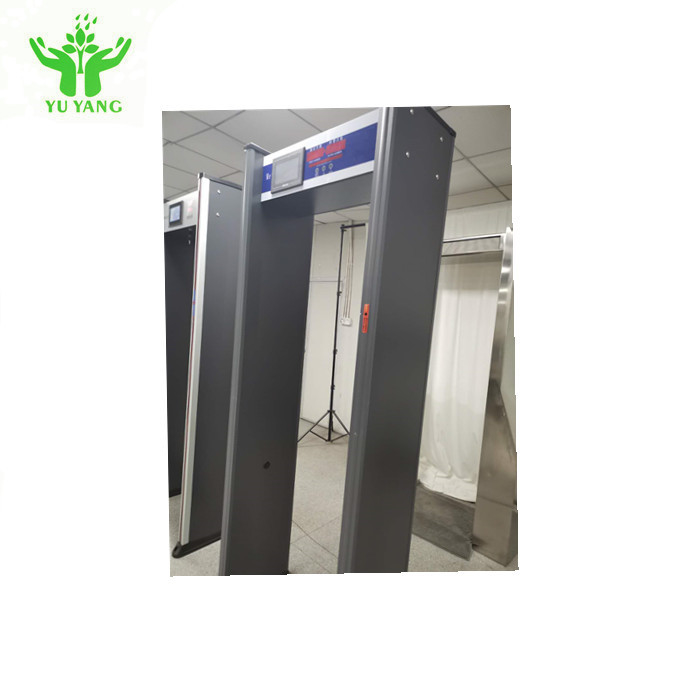

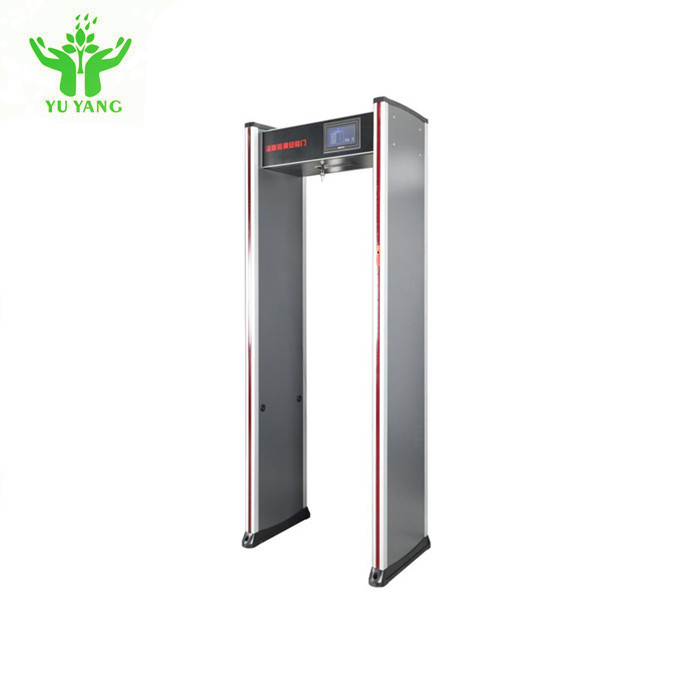

Walk Through Human Body Auto Detection Door Thermometer
Features:
Large screen, built-in 8-inch microcomputer
Data preservation and trace back, passing quickly without stopping
High temperature voice alarm captured, automatic calibration of ambient temperature, no need to add a black body
Medical device record qualification
Parameters
GW: about 60 kg
Power consumption: <15W
Working temperature: -25 ºC ~ 60 ºC
Working humidity: 95%, non-condensing
External power supply: 187V ~ 242V, 50 / 60HZ
Dimensions: 2220 (H) × 700 (W) × 510 (D) mm
Function
1. Non-sensing temperature measurement
Fast and no-stop passing, temperature measurement accuracy: ± 0.3 ºC
2. High-temperature voice alarm and snapshot, AI algorithm automatically calibrates the ambient temperature, no need to add a black body.
3. Remote network management
Built-in 8-inch microcomputer, saving photos and temperature records of people with abnormal body temperature;
4. Body temperature accuracy displayed
the minimum unit of body temperature is 0.1 ºC, the error of body temperature measurement: ± 0.3 ºC
5. The equipment adjust to the ambient temperature: 0 ºC -55 ºC
6. OEM or customized
Human body temperature screening
Built-in high-precision miniature 24-hour dynamic thermal imaging temperature monitor to conduct temperature scanning and screening for pedestrians in all directions.
8. Integrated design
Easy to install and and quick to delivery. It will be installed in 20 minutes.
9. PVC board material, fireproof, corrosion-proof, moisture-proof and anti-collision, without deformation.
Specification
| Detection distance | Forehead, 5-15CM | Temperature measurement range | 30ºC~42ºC |
| Minimum resolution | 0.1ºC | Temperature measurement module | MELEXIS |
| Temperature measurement accuracy | ±0.5ºC(indoor temperature) | Repeat accuracy | ±0.2ºC |
| Response time | 0.1S | measure time | 0.5S-1.5S |
| Display | 7-inch color touch screen | Power consumption | ≤50W |
| External power | 220V 50Hz | working environment | -10ºC─35ºC |
| (mm) Dimension | 2202(H) x 820(W) x 550(D) | (mm)Tunnel Dimension | 2000(mm) x 700(mm) x 550(mm) |
