Place of Origin:
CHINA
Brand Name:
YUYANG
Certification:
GB/T16491
Model Number:
YYD03

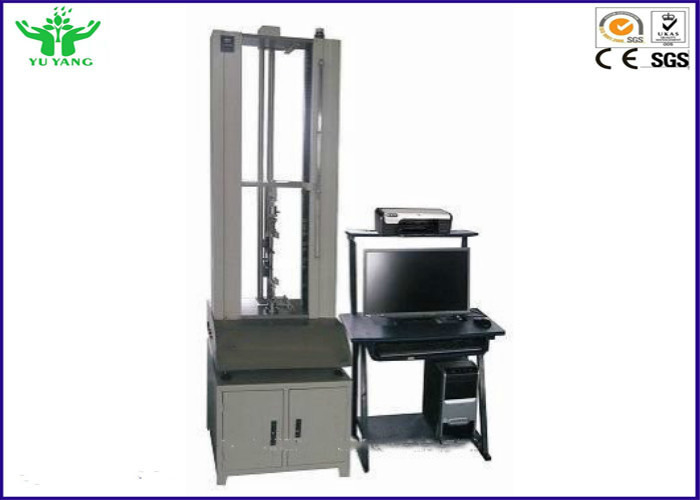

YUYANG Multifunction Tensile Testing Machine Tensile Tester In Stock
Description
YUYANG series`tensile strength testers are widely applied to determining elongation,
compression, flexing,tear,peeling,shear force,adhesive force,etc.of finished or semifinished products such as rubber,plastic, footwear, leathers, metal,wire, paqer, timber,etc.
Characteristics
1. The structure of tensile testing machine price is made of Aluminium blanking plate. The interior is used the high-accuracy, low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficiency and structure rigidity.
2. Tensile testing machine use US MKCELLDS load cell which ensure high efficiency ,steady transmission and low noise.
3. Tensile testing machine use the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
Main function

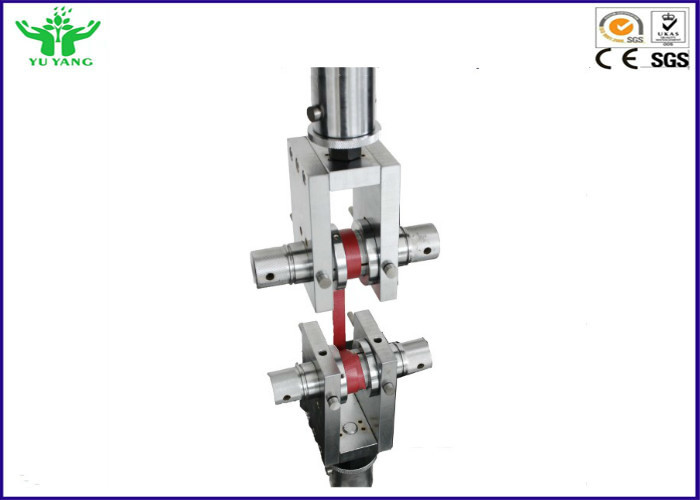

This machine can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other
mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons,thread, spring, wood,medicine packaging materials, tapes etc.
Techical Parameter:
| Model | YYL-003-1 | YYL-003-2 | YYL-003-3 | YYL-003-4 | YYL-003-5 | YYL-003-6 |
| Capacity (optional) |
50kN, 100kN | 200kN | 300kN | 500KN | 1000KN | |
| Unit(Switchable) | kgf, lbf, N, kN, kPa, Mpa | |||||
| Load Resolution | 1/200,000, 1/300,000 or specified by user | |||||
| Load Accuracy | ±0.25 | |||||
| Load Range | Rangeless(full scales at teh same amplification) | |||||
| Stroke(exclude the grips) | 1050mm | 1280mm | ||||
| Effective width | 570mm | 730mm | ||||
| Test speed | 0.001~500mm/min selectable | 0.001~250mm/min s selectable |
0.001~200mm/min | |||
| Speed Accuracy | ±0.5% | |||||
| Stroke Resolution | 0.00003mm | |||||
| Sample Rate | 200 times/sec | |||||
| Communication Interface | USB 2.0 system | |||||
| Motor | AC motor | |||||
| Dimension(W*D*H) (Main unit) |
114*70*210cm | 126*80*220cm | 126*85*250cm | 128*90*275cm | 142*110*320cm | |
| Computer /Desk | 165*65*80cm | |||||
| Weight(Main Unit) | 717kg (exclude the grips | 1050kg(exclude the grips) | 1230kg(exclude the grips) | 1750kg(exclude the grips) | 2500kg(exclude the grips) | |
| Comput /Desk | 102kg | |||||
| Power | 220V 20A /380V,15A or specified by user | 220V, 25A /380V,20A or specified by user | ||||
