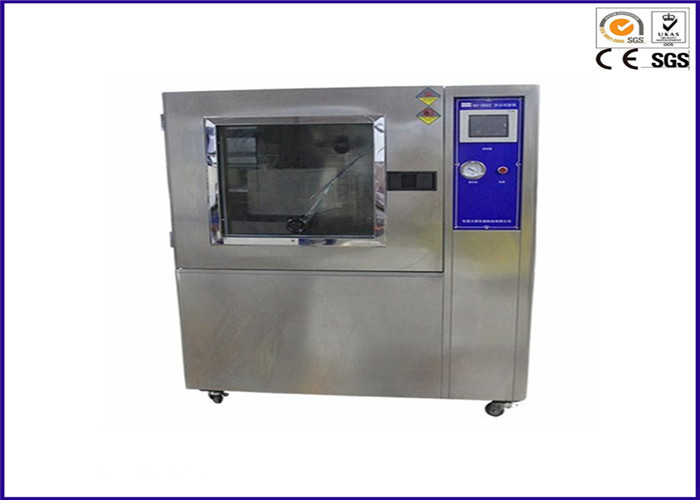

Temperature And Humidity Chamber Sand And Dust Chamber With LED Light
Product Description:
The Microcomputer Controlled LED Light Sand and Dust Testing Machine is used for dust-proof and dust resistance experiments for various automobile parts. The main test parts include lights, instrumentation, safety belt, seat regulator, electric dust cover, steering gear shaft and locks, testing it’s dust resistance and movement safety.
Features:
1. Formed using CNC machining box, nice shape, and no reaction by the handle, easy to operate.
2. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.
3. Equipment containing dust vertical circulation of air, dust can be reused for testing; device itself has a good sealing performance, test, laboratory test can clearly observe the situation; device equipped with a vacuum system to meet the needs test; equipment dust the bottom of the device can be replaced.
4. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.
5. Test with 50mm diameter holes for the external test power line or signal line.
Specifications:
| Model | YY1026-80 (A~F) |
YY1026-150 (A~F) |
YY1026-225 (A~F) |
YY1026-408 (A~F) |
YY1026-800 (A~F) |
YY1026-1000 (A~F) |
| Inner size: WHD(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 60*85*80 | 100*100*80 | 100*100*100 |
| External size: WHD(cm) | 105*165*98 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 |
| Temperature range | (Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC) | |||||
| Humidity range | 20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition) | |||||
| Temp analytic accuracy/ uniformity |
0.1ºC/±2.0ºC | |||||
| Temperature Fluctuation | ±0.5ºC | |||||
| Humidity analytic accuracy/ Humidity control accuracy | ±0.1%;±2.5% | |||||
| Heat; cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min | |||||
| Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer | |||||
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
| Cooling system | Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) |
|||||
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system |
|||||
| Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4 | |||||
| Compressor | Original France "Tecumseh" brand | |||||
| Controller | TEMI South Korea | |||||
| Power | AC220V 50/60Hz & 1 , AC380V 50/60Hz 3 | |||||
| weight (kg) | 150 | 220 | 270 | 320 | 450 | 580 |
