PLC Control Martindale Abrasion and Pilling Textile Testing Equipment with PLC control

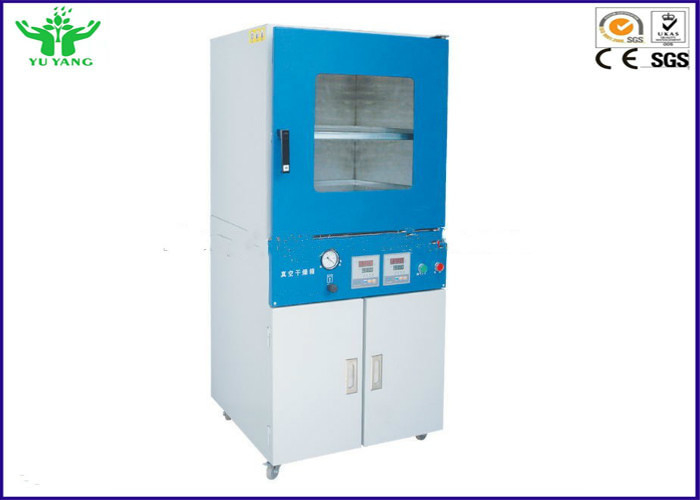

RT+10-200℃ 1.0 KW laboratory drying oven with 6 degree per min heating rate
Product Description:
Attractive appearance,widely use,Safe and reliable
Precision vacuum oven is Widely used in biochemicalm,chemical and pharmaceutical,health care,agricultural research,environmental protection and other research applications for power drying and roasting,as well as disinfection and sterilization of glass containers used.Particularly suitable for drying heat-sensitive,easily decomposed,and the complex composition of easily oxidized material items for fast and efficient drying.
Especially designed for drying heat-sensitive, easy-to-decompose and easy-to-oxidize substances; it is able to inject inert gas internally, in particular, it can even dry the substances with complex ingredients fast. It is widely used in electronic and chemical industries.
High quality materials,Good sealed,Convenient and Practical
Material of outer case The housing is processed and formed with high-quality (t=1.2mm) A3 color plates through CNC machine with surface sprayed with plastics, looking smoother and more artistic;Material of inner case Imported high-grade stainless steel (SUS304).
Special structure,Durable and operate easily
The tension of closed chamber door can be adjusted, and integral-formed silicone rubber seal can ensure high vacuum degree inside the chamber.
Door handle: Introduce the door handle without counteraction for easy operation.
High performance,efficiency and speed
Introducing IR Ni-Cr alloy high-speed heating electric heater
Totally independent high-temperature system shall not affect low temperature test, high temperature test and alternating hot and humid test.
The output power of temperature & humidity control shall be calculated by micro computer to achieve electricity use benefits of high precision and high efficiency.
Optional accessories
USB,RS-232 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.
Technical Parameters
| Model | 0-100 | 0-225 | 0-500 | 0-800 | 0-1000 | ||||
| Internal dimensions (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | ||||
| Overall dimensions (mm) | 750*880*850 | 800*950*1000 | 1100*1100*1300 | 1100*1450*1400 | 1300*1400*1400 | ||||
| Temperature range | Ambient ~+250 ºC; ( Ambient ~+400 ºC; Ambient ~+900 ºC) | ||||||||
| Temperature fluctuations | ± 0.5 ºC | ||||||||
| Temperature deviation | ± 2.0 ºC | ||||||||
| Heating rate | About 6 ºC / min | ||||||||
| Controller | Digital PID Temperature Controller | ||||||||
| Temperature Sensor | PTR Platinum Resistance PT100 | ||||||||
| Heating system | Nichrome heater | ||||||||
| Exterior material | Steel Plate with Protective coating | ||||||||
| Interior material | SUS304 stainless steel | ||||||||
| Timing Function | 0.1~999.9 (S,M,H) settable | ||||||||
| Nominal power | 2500W | 3000W | 3500W | 4500W | 6500W | ||||
| Power Supply | AC220V 50HZ | AC220V 50HZ | AC220V 50HZ | AC220V 50HZ | AC380V 50HZ | ||||
