Place of Origin:
CHINA
Brand Name:
YUYANG
Certification:
ISO5470
Model Number:
YYE005

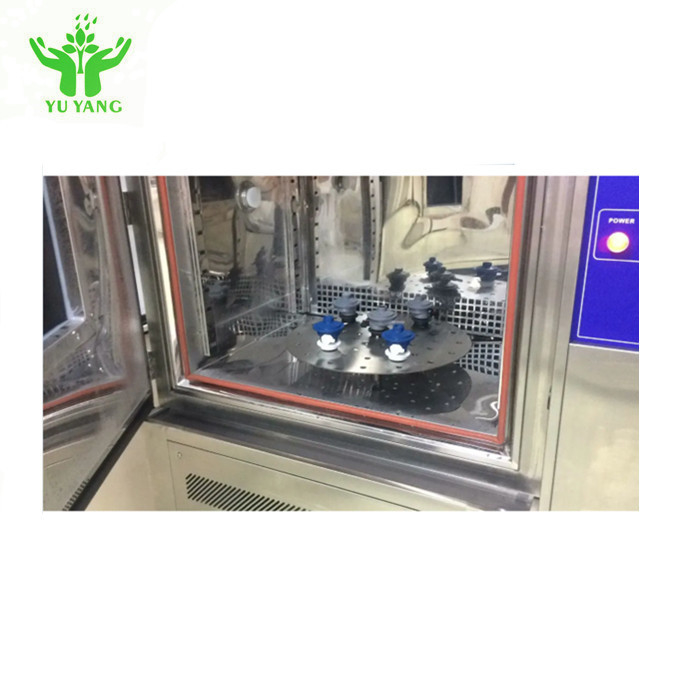

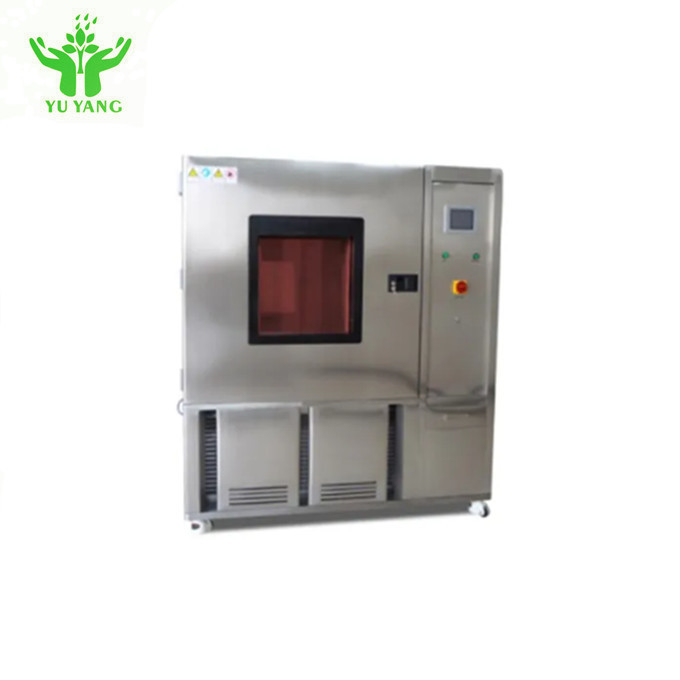

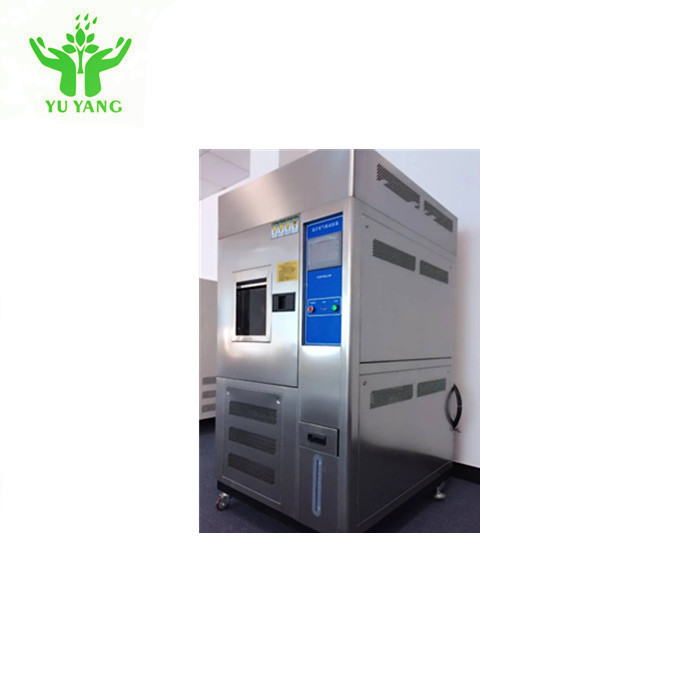

Laboratory High Precision Heating Drying Oven Equipment/Humidity Oven
RT+10-200℃ 1.0 Laboratory High Precision Heating Drying Oven Equipment/Humidity Oven
Prossional in Mosture Test Chamber:
Attractive appearance,widely use,Safe and reliable
Precision vacuum oven is Widely used in biochemicalm,chemical and pharmaceutical,health care,agricultural research,environmental protection and other research applications for power drying and roasting,as well as disinfection and sterilization of glass containers used.Particularly suitable for drying heat-sensitive,easily decomposed,and the complex composition of easily oxidized material items for fast and efficient drying.
Especially designed for drying heat-sensitive, easy-to-decompose and easy-to-oxidize substances; it is able to inject inert gas internally, in particular, it can even dry the substances with complex ingredients fast. It is widely used in electronic and chemical industries.
High quality materials,Good sealed,Convenient and Practical
Material of outer case The housing is processed and formed with high-quality (t=1.2mm) A3 color plates through CNC machine with surface sprayed with plastics, looking smoother and more artistic;Material of inner case Imported high-grade stainless steel (SUS304).
Special structure,Durable and operate easily
The tension of closed chamber door can be adjusted, and integral-formed silicone rubber seal can ensure high vacuum degree inside the chamber.
Door handle: Introduce the door handle without counteraction for easy operation.
High performance,efficiency and speed
Introducing IR Ni-Cr alloy high-speed heating electric heater
Totally independent high-temperature system shall not affect low temperature test, high temperature test and alternating hot and humid test.
The output power of temperature & humidity control shall be calculated by micro computer to achieve electricity use benefits of high precision and high efficiency.
Optional accessories
USB,RS-232 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.
Feature:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular doubleglassed watching window for the observation of the test
production during the testing process. The window is equipped with sweatproof
electrical heating device that can prevent water steam from condensing into
droplets, and with high brightness PL fluorescentbulbs to provide light inside the box.
3. Double- layer insulated airtight doors, able to insulate the internal temperature
effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment protecting coolant is used for the whole series (R232,R404)
6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
Specifications
| Application | used for drying, baking, wax-melting, sterilization, curing, heat treatment, roasting products | |||
| Performance | temp. range | RT+10~ 300ºC | ||
| temp. resolution | 0.1°C | |||
| temp. fluctuation | ±0.5ºC | |||
| temp. uniformity | ±2.5% | |||
| Structure | chamber material | Stainless Steel | ||
| shell material | High-quality cold rolled armor plate rust prevention handle, static spraying plastics | |||
| insulation material | Superfine glass filber | |||
| Inside Door | Fire resistant tempered glass | |||
| Controller | temp. control | Microcomputer intelligent digital display controller ((intelligent LCD temperature controller is optional) |
||
| timer | 1~9999minutes(with timing function) | |||
| sensor | Pt100 or K type | |||
| additional function | deviation calibration, menu buttons lock, power outage compensation, power outage memory |
|||
| Safety device | over-temperature/heat, electric leakage and sensor error alarm | |||
