Place of Origin:
China
Brand Name:
YUYANG
Model Number:
YY017

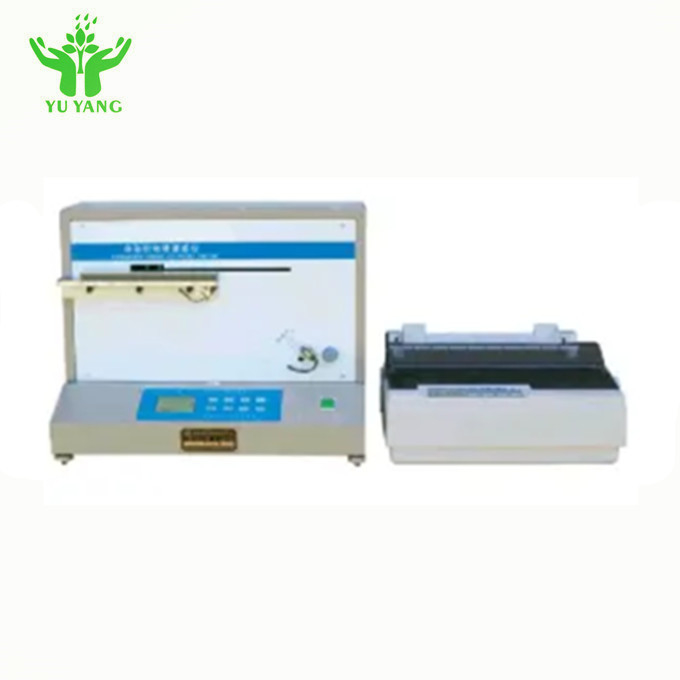

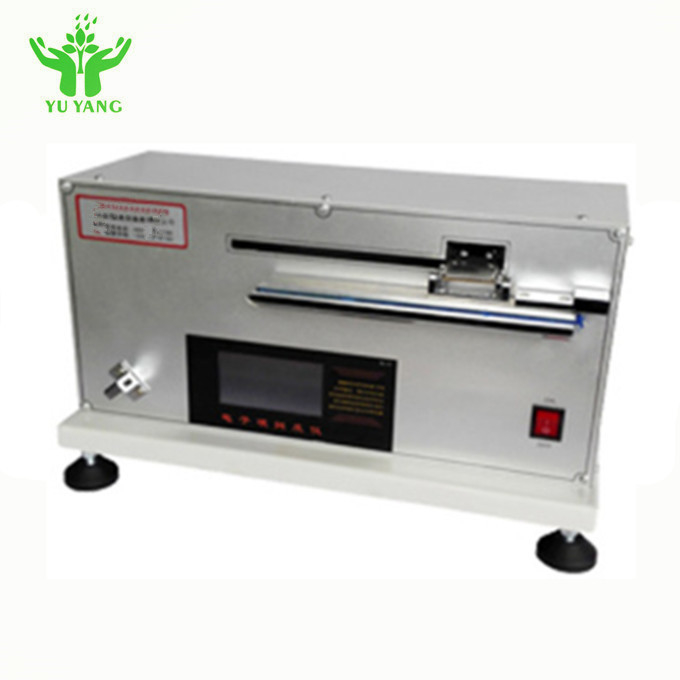

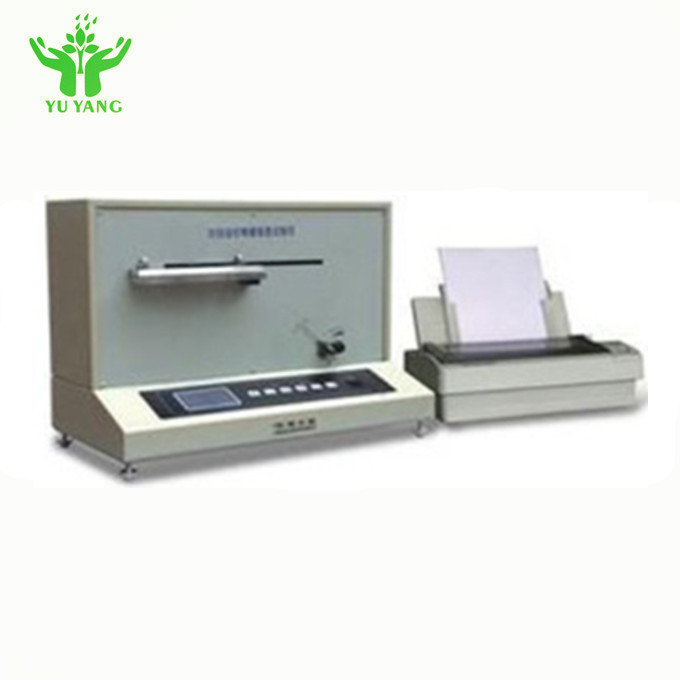

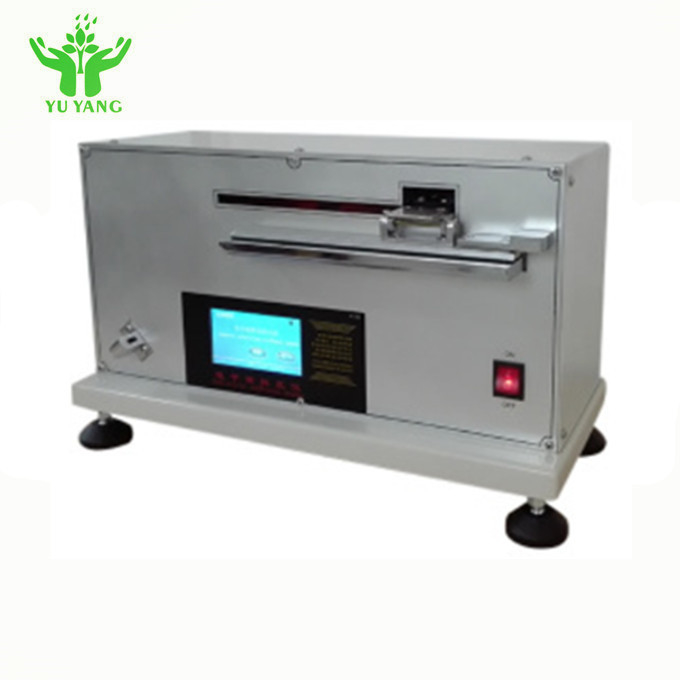

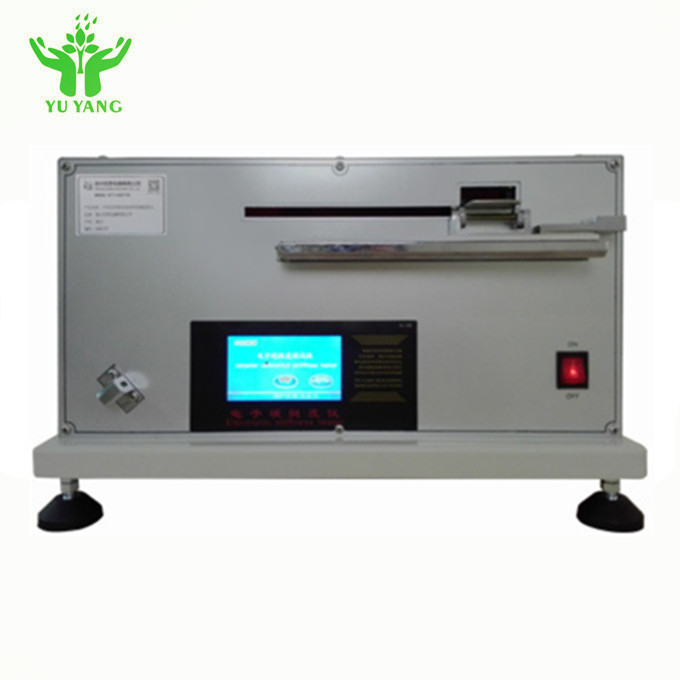

ASTM D1388 Fully Automatic Fabric Stiffness Testing Equipment
To determine the bending height, flexural rigidity and bending modulus of fabrics(cotton,hair,silk,fibres,kinitted fabrics,non-woven fabrics,coated fabric etc) by simple procedures and calculation. Also could used for the stiffness test for flexible material of paper,leather,thin film etc.
Standards: GB/T18318；ISO9073-7；ASTM D1388；BSEN22313
Technical parameters:
Angle: 41.5 degree, 43 degree, 45 degree
Extension elongation range: 5～200mm
Resolution: 0.1 mm
Measurement accuracy: 0.1 mm
Specimen size: 25×200 mm
Work platform size: 40×250mm
Specimen pressing plate: 25×200 mm
Move speed: 3～5mm/s
Dimension: 490×300×410mm(L×W×H)
Weight:20kg
