Place of Origin:
China
Brand Name:
YUYANG
Model Number:
YY021

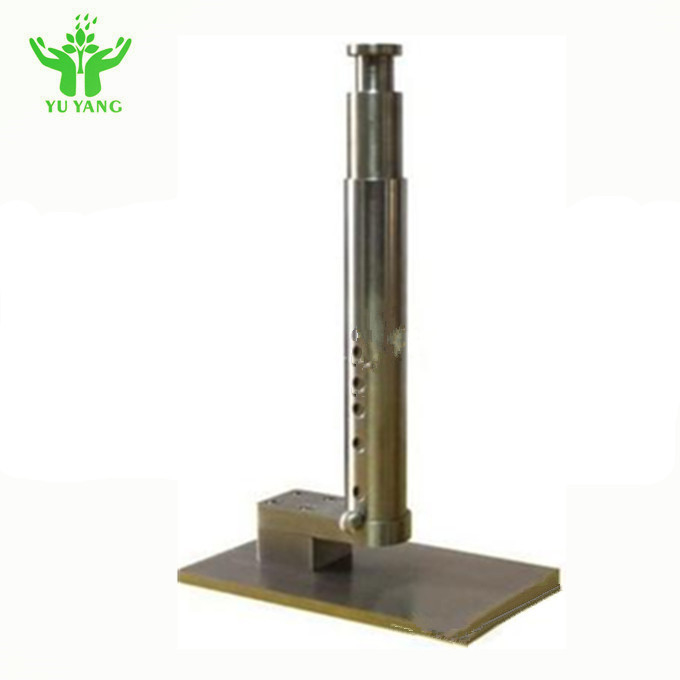

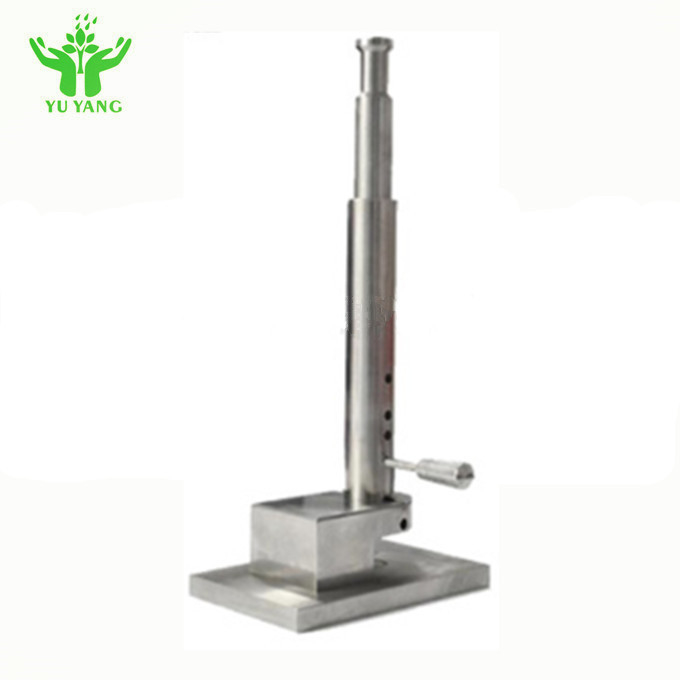

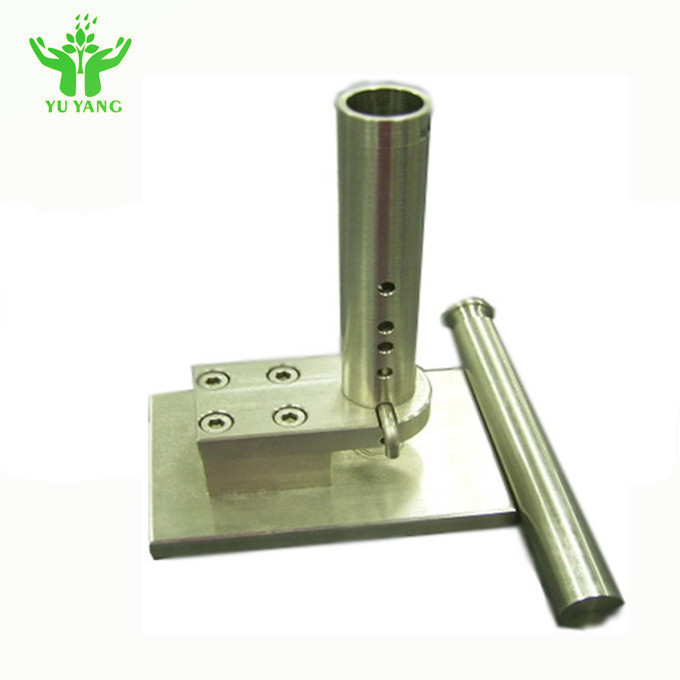

ASTM D5171 button impact tester
Application:
Button Impact Tester, to determine the impact resistance of plastic sew-through flange buttons to a falling mass of 0.84kg (29.5oz), released from a height of 67mm (2.625 inches) or other heights as required. Cracking, chipping or breakage constitutes failure.
Specifications:
1. Load: 0.84Kg
2. Testing Height: 32, 44, 67, 83, 95, 117, 200mm
3. Standards: ASTM D5171
4. Weight: 3 Kg
5. Dimensions: 360x170x170mm(LxWxH)
| Load: | 0.84Kg |
| Testing Height: | 32, 44, 67, 83, 95, 117, 200mm |
| Standards: | ASTM D5171 |
| Weight: | 3 Kg |
| Dimensions: | 360x170x170mm(LxWxH) |
| Usage: | Button Impact Tester |
