Name: IEC 60332 Single Cable Vertical Flame Tester , 45degree Flame Spread Test Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY610
Price: 2150 USD
Availability: InStock

Home > products > Fire Testing Equipment >

IEC 60332 Single Cable Vertical Flame Tester , 45degree Flame Spread Test Machine

IEC 60332 Vertical Flame Tester

45d Vertical Flame Tester

45degree flame spread test

Place of Origin:

China

Brand Name:

YUYANG

Model Number:

YY610

Request A Quote

IEC 60332 Single Cable Vertical Flame Tester , 45degree Flame Spread Test Machine

Product Details

Product Name:

Single Cable Vertical Flame Spread Tester

Ambient Temperature:

Operating 10°C To 35°C

Burner Angle:

45 ° And 0 °

Burner Inner Diameter:

12 ± 0.5mm

Blue Flame Height:

50mm ~ 60mm

Power:

AC 220V, 50/60Hz, 3A

Size:

600(W)×450(D)×1250(H) Mm

Weight:

60kg

Highlight:

IEC 60332 Vertical Flame Tester

45d Vertical Flame Tester

45degree flame spread test

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$2150

Packaging Details

Wooden Box

Delivery Time

7-30 Days

Payment Terms

T/T, Western Union, MoneyGram

BS 476-6 Propagation Flammability Testing Machine For Building Materials and Structures

Get Best Price

ISO 6941 Flammability Test Equipment , Laboratory Textile Fabric Fire Testing Machine

Get Best Price

Video

ASTM E108 Roof External Exposure Fire Testing Equipment For Wood Burning

Get Best Price

BS 476-6 Combustion Test Apparatus Lab Fire Test Equipment For Construction Materials

Get Best Price

+86-13825723571

sales002@yuyangtest.com

86-769-26622869

Contact Now

Product Description

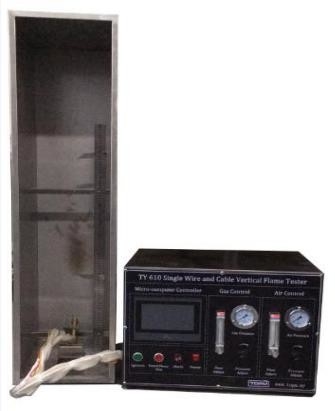

IEC 60332 Single Cable Vertical Flame Spread Tester

Description:

Single Cable Vertical Flame Spread Testing Machine is the most widely used and lower cost of cable fire performance test equipment; It meets the standards IEC 60332-1-1:2004 in the provisions of technical indicators and requirements. Single cable combustion Tester is used to test the flame retardant property of the cable's insulating layer under abnormal conditions such as overheat and over current. It can be used in vertical cable or fiber flame spread test, also can be test the state of flaming droplets during combustion.

Standards:

IEC 60332-1-1, IEC 60332-1-2

Specifications:

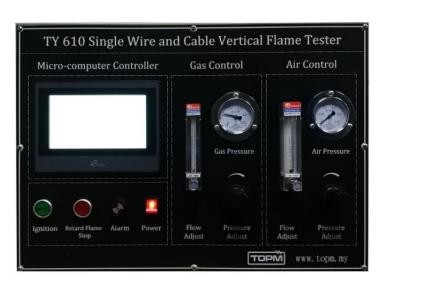

1. The touch screen intelligent control system; Operating interface in English and Chinese;

2. The system automatic ignition, automatic timing, automatic data storage;

3. The test section and control section is combined design in one box for installing and operation;

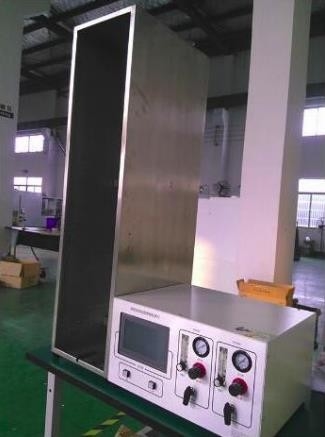

4. Stainless steel test box, and the internal cavity size is height 1200mm, width 300mm, depth of 450mm;

5. A pre-mixed burner, and inner diameter is Ф12 ± 0.5mm, length is 100mm. 1kW mixed type standard burner, which can be provides accurate test fire;

6. Flame time and duration of combustion can be adjusted from 0 to 99 minutes 99 seconds. Automatic control testing process;

7. Import needle valve precisely adjust the flame height, according to standards, the blue flame height is 50mm ~ 60mm, total height is 170mm ~ 190mm;

8. The gas flow rate is controlled by needle valve;

9. Equipped with a steeliness flame height caliper;

10. With a gas flow meter and pressure regulator; automatic ignition;

11. The burner angle can be adjust between 45 ° and 0 °;

12. Flame check device for optional;

13. Size: 600(W)×450(D)×1250(H) mm;

14. Power: AC 220V, 50/60Hz, 3A;

15. Weight: 60kg
