Copper Wire Cable Spark Tester , 250-300mm/Min Elongation Testing Machine

Copper Wire Cable Spark Tester , 250-300mm/Min Elongation Testing Machine

250mm/min cable spark tester

elongation cable spark tester

300mm/min elongation testing machine

Place of Origin:

China

Brand Name:

YUYANG

Model Number:

YYW005

Contact Us
Request A Quote
Copper Wire Cable Spark Tester , 250-300mm/Min Elongation Testing Machine
Copper Wire Cable Spark Tester , 250-300mm/Min Elongation Testing Machine Copper Wire Cable Spark Tester , 250-300mm/Min Elongation Testing Machine Copper Wire Cable Spark Tester , 250-300mm/Min Elongation Testing Machine Copper Wire Cable Spark Tester , 250-300mm/Min Elongation Testing Machine
Product Details
Product Name:
Copper Wire And Cable Elongation Tester
Diameter Range:
0.08 ~ 0.8mm
Drawing Speed:
250 ~ 300mm/min
Starting Length:
250mmu
Extended Range:
0 ~ 48%
Display Accuracy:
0.1%
Input Power:
AC220V 50/60Hz
Size:
50 *21 * 24 (cm)
Weight:
13kg
Highlight:

250mm/min cable spark tester

,

elongation cable spark tester

,

300mm/min elongation testing machine

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
$550
Packaging Details
Wooden Box
Delivery Time
7-30 Days
Payment Terms
T/T, Western Union, MoneyGram
RELATED PRODUCTS
Good price Single Insulated Cable Testing Equipment , IEC 60332-1 Flame Propagation Test Apparatus online

Single Insulated Cable Testing Equipment , IEC 60332-1 Flame Propagation Test Apparatus

Get Best Price
Good price IEC 60332-3 Vertical Flammability Tester For Burning Behaviour Of Bunched Cables online

IEC 60332-3 Vertical Flammability Tester For Burning Behaviour Of Bunched Cables

Get Best Price
Good price IEC60331 Wire Testing Equipment Cable Fire Resistance Test For Circuit Integrity Under Fire Conditions online

IEC60331 Wire Testing Equipment Cable Fire Resistance Test For Circuit Integrity Under Fire Conditions

Get Best Price
Good price Halogen Acid Gas Release Corrosion Testing Equipment IEC 60754-1&2 Test Standard online

Halogen Acid Gas Release Corrosion Testing Equipment IEC 60754-1&2 Test Standard

Get Best Price
Contact Us
+86-13825723571
sales002@yuyangtest.com
86-769-26622869
Contact Now
Product Description

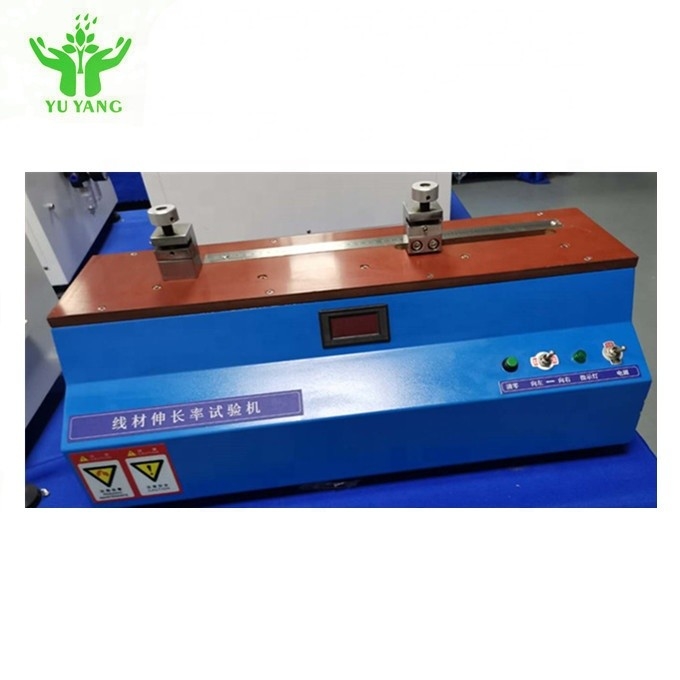

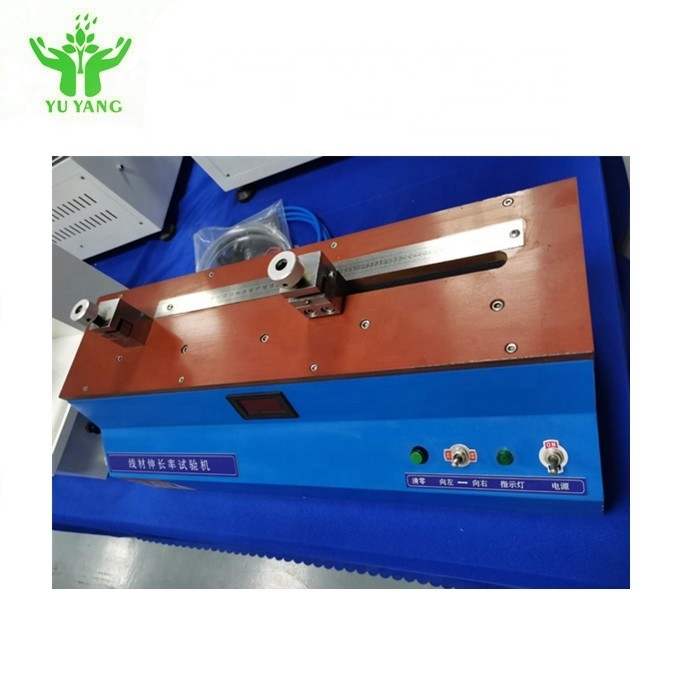

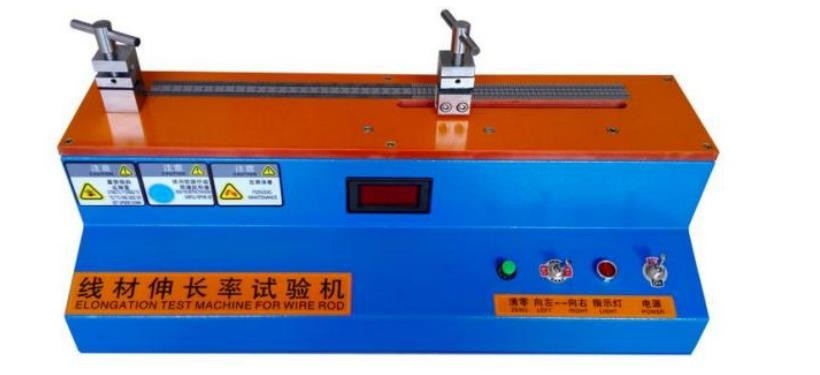

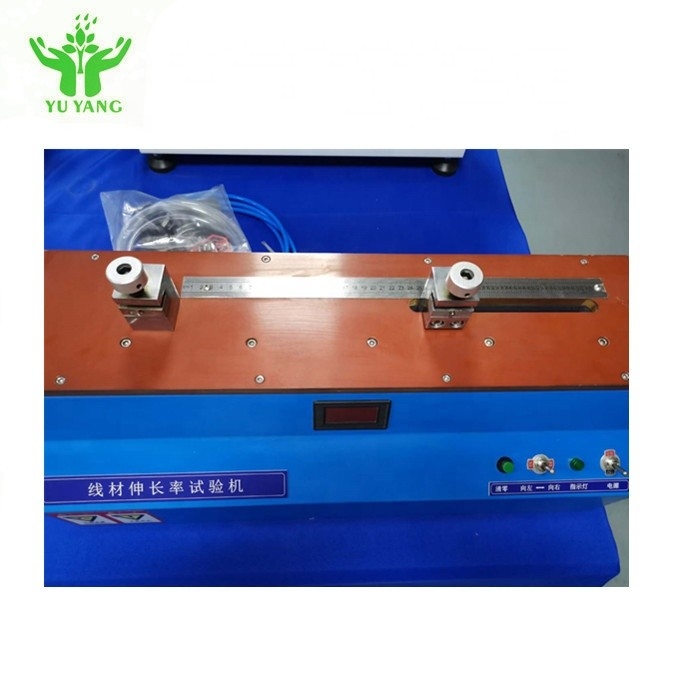

Copper Wire and Cable Elongation Tester



Product Description:

Copper Wire And Cable Elongation Tester For Aluminum is suitable for aluminum, copper, iron and other metal materials to measure elongation. The tester is testing
elongation of metal materials; Using advanced software program and sophisticated electronic sensing
technology to measure the elongation of tensile specimen, Automatically converted into % and the value of
LED display. According to the conductive wire, coupled with advanced control technology to enable this device automatically calculates the high-precision percentage, fully automatic features and simple operate, easy to read, accurate value.

Main features:

According to the conductive wire, coupled with advanced control technology to enable this device automatically
calculates the percentage of high-precision, fully automatic features. Is a wire-like material of choice for elongation testing
equipment.


Technical parameters:

Diameter range: 0.08 ~ 0.8mm
drawing speed: 250 ~ 300mm/minu
Starting Length: 250mmu
extended range: 0 ~ 48%
Display Accuracy: 0.1%
Input Power: AC220V 50/60Hz
Size: 50 × 21 × 24 (cm)
Weight: 13kg
Diameter range:
0.08 ~ 0.8mm
drawing speed:
250 ~ 300mm/minu
Starting Length:
250mmu
extended range:
0 ~ 48%
Display Accuracy:
0.1%
Input Power:
AC220V 50/60Hz
