Place of Origin:
China
Brand Name:
YUYANG
Certification:
GB/T 5169.5, GB/T 4706.1, IEC60695-11-5, IEC60695-2-2
Model Number:
YY008

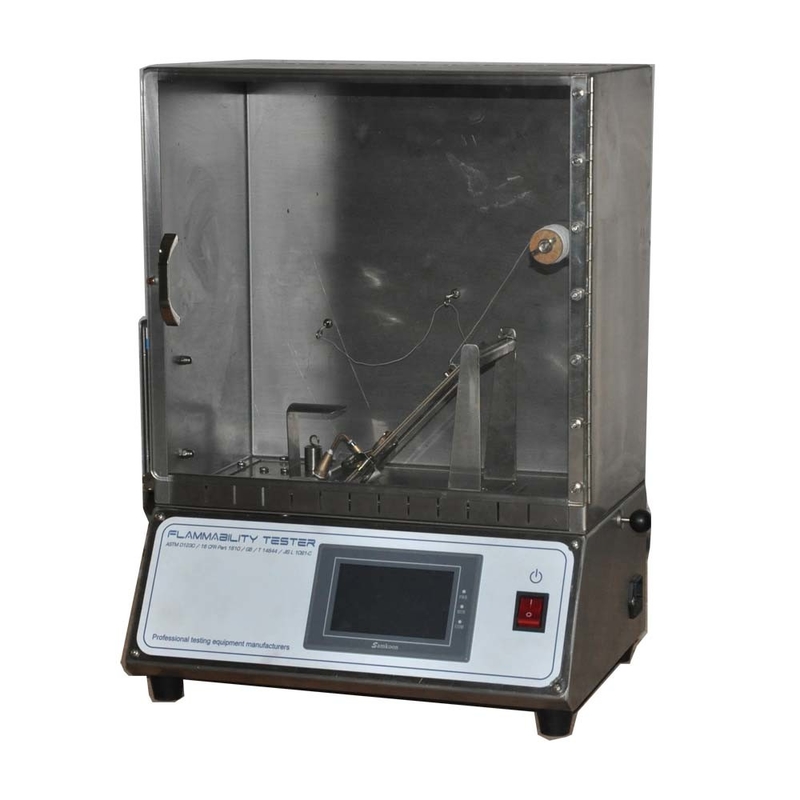

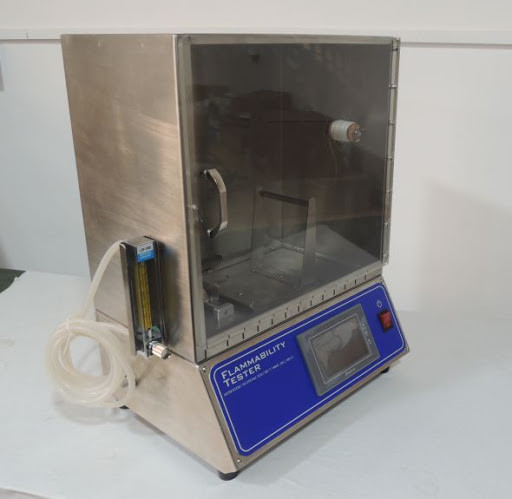

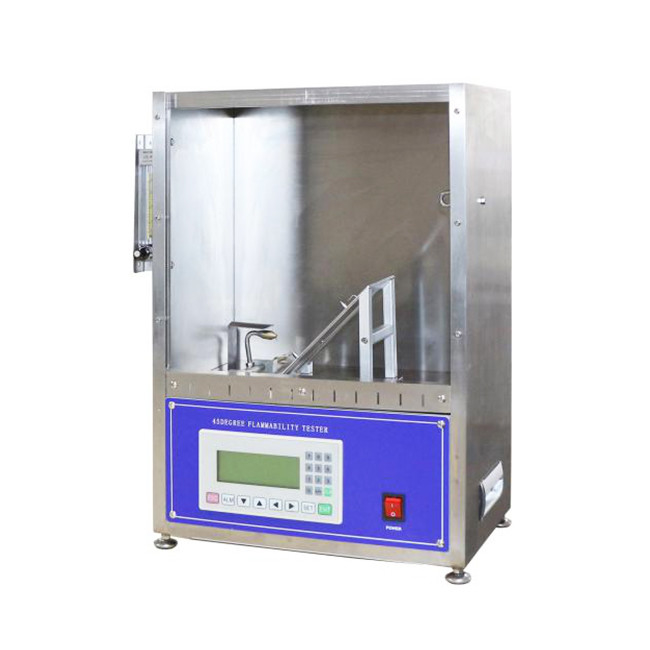

45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610
Use
This machine is suitable for testing the performance of textiles in children's pajamas and pants, or in the hands of consumers or from consumers. Tests for the flammability of textiles used in the manufacture of garments, the introduction of three types of flammability, the determination of the classification of textiles, and the use of single or multi-layer fabrics that are commercially viable as unsuitable garments and have the potential to burn. caveat.
Description
To determine the burning characteristics of textiles under controlled conditions. Stainless steel test cabinet with glass observation panel provided with automatic timing of flame spread in 0.1-second increments from ignition. Brushing Device including Spare Nylon Brush.
Principle

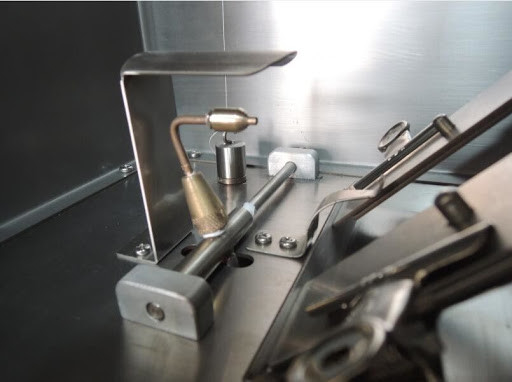

Under the specified conditions, the sample is placed at an angle of 45°, the sample is ignited for 1 s, and the time required for the sample to burn upward by a certain distance is used as a measure for assessing the degree of burning of the textile. Fabrics with surface piles, the ignition or melting of the base fabric as an additional indicator of the severity of the combustion, but need to be noted.
Key Specification
| Time Display | 0-99.9S |
| Test box | 37cm*22cm*35cm, top 12 vents with a diameter of 12.7mm |

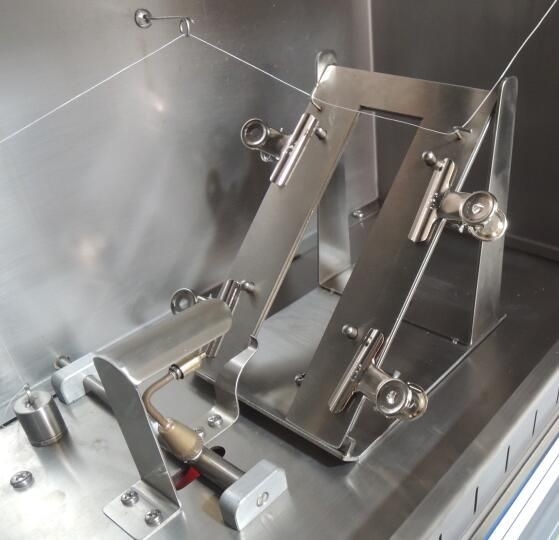

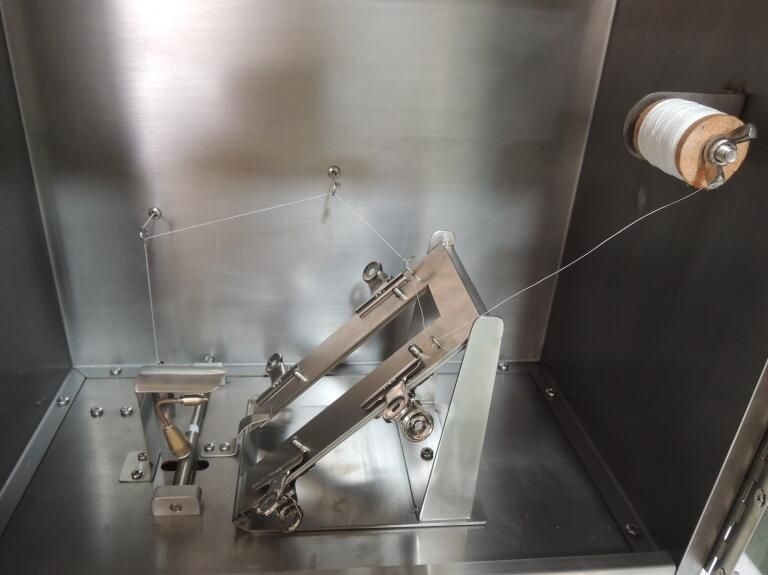

| Sample holder | 45° |
| Sample holder | upper plate slotted 38mm*152mm |
| Sample size | 50mm*150mm |
| Bristle load | 150gf |
| Resolving Capability | 0.1S |
| Ignition time | 1s or set it Set arbitrary |
| Dimensions | 420 x 260 x 520mm (L*W*H) |
| Power | AC 220V / 50Hz / 2A |
| Standards | ASTM D1230, CRF 16-1610 |
| Weight | 20kg |
