Place of Origin:
China
Brand Name:
YUYANG
Certification:
ASTM D1238, ISO 1133, ASTM D3364, BS2782, DIN53735, JIS K7210
Model Number:
YY034

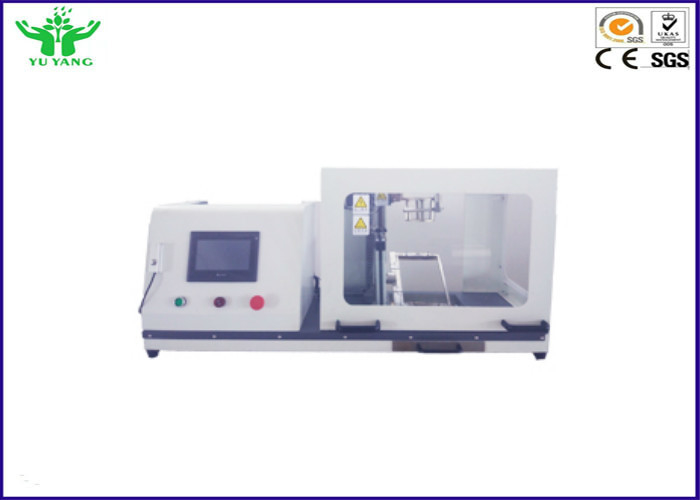

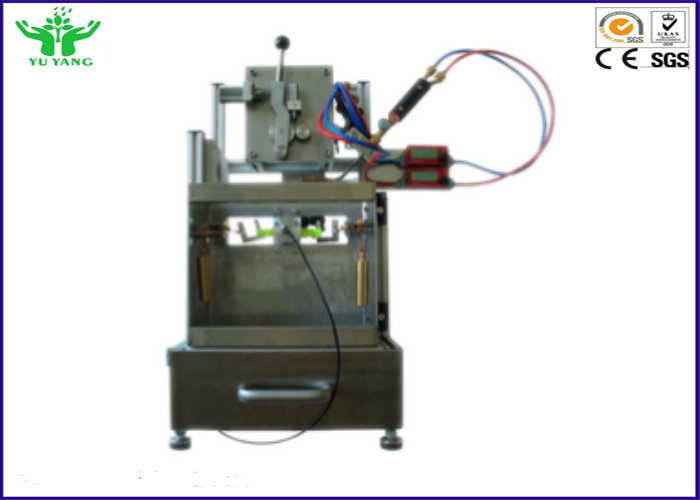

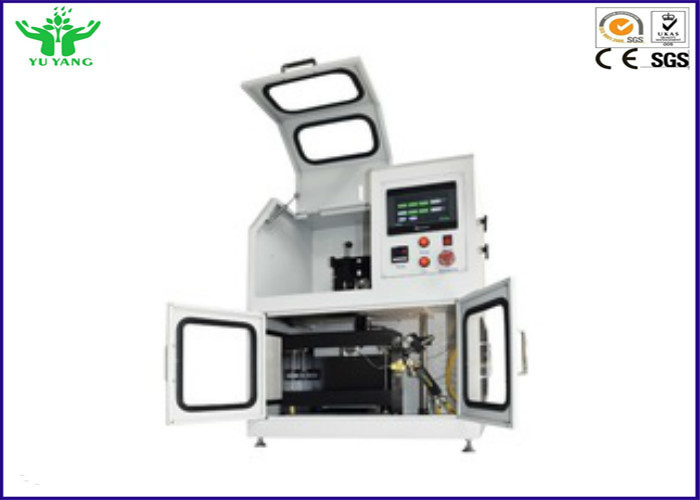

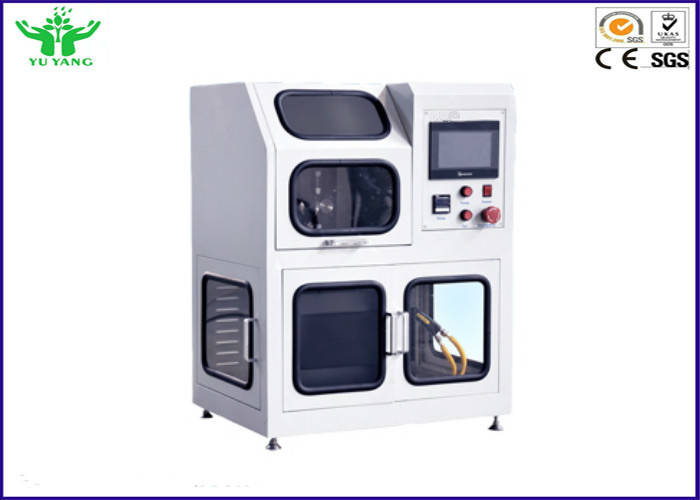

ISO 9150, BS EN 348 Protective Clothing Molten Metal Splashes Impact Resistance Tester
Description:
Molten metal small drops resistance tester or Molten metal splash tester is professional designed to evaluate the behavior of materials used for protective clothing of EN ISO 11611, EN ISO 20349 when such materials are struck by small liquid metal splashes which is designed according to EN 348 and ISO 9150. It is used to determine the protective performance of PPE (personal protective equipment) for wearer against small splashes of molten metal is often submitted to high thermal loads. The test machine can provide solid data for manufacturers or researchers to ensure the protective clothing’s protective function is resistance to heat transfer and useful to avoid the hazards that may cause human injury under conditions of use.
Standards:
EN 348: Protective clothing. Determination of behavior of materials on impact of small splashes of molten metal
ISO 9150: Protective clothing -- Determination of behavior of materials on impact of small splashes of molten metal
EN ISO 11611 Protective clothing for use in welding and allied processes
EN ISO 20349 Personal protective equipment - Footwear protecting against thermal risks and molten metal splashes as found in foundries and welding - Requirements and test method
Feature:
1), Drop guide to collect the drops and to guide them towards the vertically oriented test specimen.
2), Senor for measuring the temperature linked to a recording device.
3), Holding frame and counterweights for the test specimen.
4), Motor speed can be adjust so that the steel rod is fed at the rate of (10 f 1) g/mm.
5), Needle valves adjust the O2 and acetylene flow rate.
6), LCD Screen display and control the motor speed.
7), Coated appearance, beautiful.
Specification
| Item | Detail |
| Gas | Oxygen and Acetylene |
| Gas pressure | Adjustable |
| Welding rod feed rate | Adjustable |
| Diameter of welding burner | (1.2±0.1) mm |
| Temperature measurement | Temperature sensor |
| Loading weight | 175g±0.5g |
| Power supply | 220V 50Hz |
| Dimension | 700mm×500mm×850mm 27.56inch×19.69inch×33.46inch |
| Net weight | 45 kg |
