Place of Origin:
China
Brand Name:
YUYANG
Certification:
ISTA 1A, ASTM D999
Model Number:
YY039

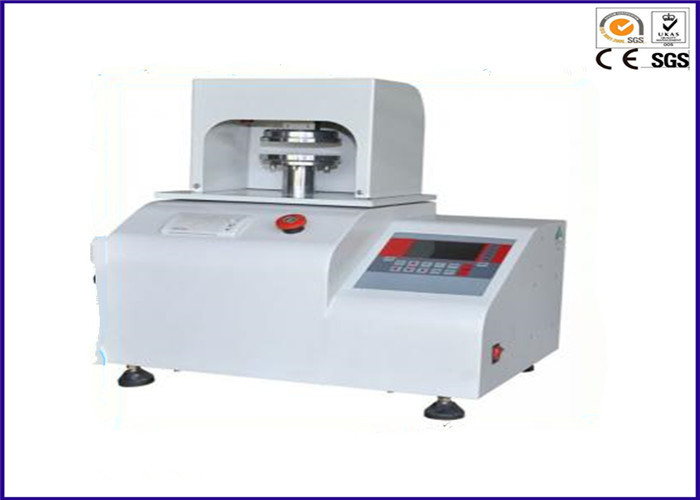

85% Glycerin Electronic Paperboard Fully Automatic Bursting Strength Testing Machine
Uses:
Burst test equipment is used for testing a wide range of materials like paper, paperboards, corrugated board and boxes, leather, filter cloth, rexine, ect, to determine their quality, strength and performance.
Design standard:
JIS-L1004,L1018,L1031,K6328,P8131,P8112, ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539
Main technical parameters
| Capacity (Optional) | High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2) |
| Unit (switchable) | Kpa, psi, kg/cm^2 |
| Accuracy | ±0.5% |
| Pressure Range | 250~5600kpa |
| Speed of Compression | High Pressure 170 10ml/min |
| Specimen Clamping Force | >690kpa |
| Oil | 85% Glycerin; 15% Distilled Water |
| Sensing method | Pressure Transmitter |
| Indicating Method & Display | LCD |
| Material of the Ring | Stainless Steel SUS304 |
| Opening in Upper Clamp | 31.5± 0.05 mm Diameter |
| Opening in Lower Clamp | 31.5± 0.05 mm Diameter |
| Motor | Anti-vibration Motor 1/8 HP |
| Operation Method | Automatic |
| Dimension (LWH) | 445*425*525 mm |
| Weight | Approx. 70 kg |
| Power | AC220 10%, 50 Hz |
| Power Capacity | 120W |
| Standard Configuration | Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle |
| Optional Configuration | Printer, Air Pump |
Characteristics:
1.Advanced micro computer controller and digital processor ensure result precise.
2.Printer facility and fully detailed test reports.
3.Results of the tests are stored for viewing or for printing out as required.
4.User-friendly menu interface
5.Power protection ensure automatic record when power cut off.
