Place of Origin:
China
Brand Name:
YUYANG
Certification:
ISO, CE
Model Number:
YYE-009

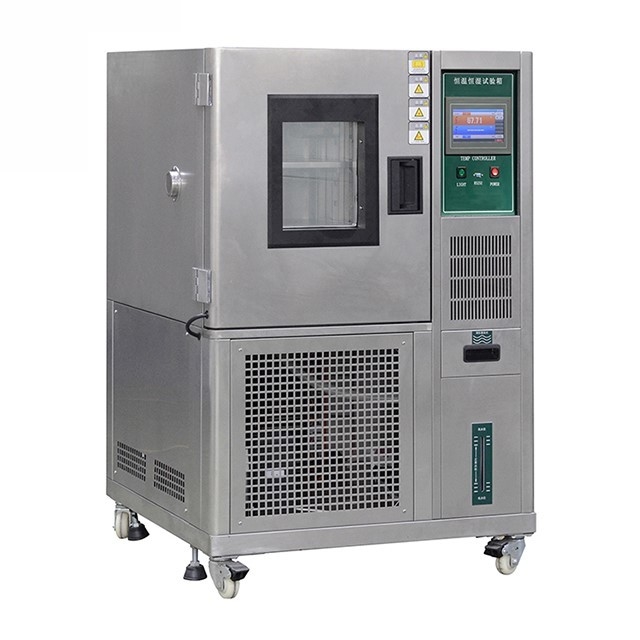

50 Liter Constant Humidity Temperature Test Chamber
Application:
This machine test material heat, cold, dry resistance, humidity resistance. Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials,
aerospace and other products.
Features:
Constant Humidity Temperature Chamber Tester is a precise and durable conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. ±0.5% and-20°C to 150°C ±0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing
Constant Temperature and Humidity test chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
| Model | YYE009-50L |
| Inner size: WHD(cm) | 35*36*40 |
| External size: WHD(cm) | 48*61*110 |
| Temperature range | -20ºC-+150ºC |
| Humidity range | 20%~98% R.H |
| Temp analytic accuracy/ uniformity |
0.1ºC/±2.0ºC |
| Temperature Fluctuation | ±0.5ºC |
| Humidity analytic accuracy/ Humidity control accuracy | ±0.1%; ±2.5% |
| Heat; cooling time | Heat up about 3.0°C/min ; Cooling about 1.0°C/min |
| Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer |
| Insulation materials | Resistant to high temp, high density, formate chlorine, ethyl acetum foam insulation materials |
| Cooling system | Air cooling/single segment compressor(-20°C) |
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system |
| Parts | Watching window, 50mm testing hole, PL internal bulbs, Wet and dry bulb gauze, partition plate, castorx4, Foot Cupx4 |
| Compressor | Original France "Tecumseh" brand |
| Controller | TEMI South Korea |
| Power | AC220V 50/60Hz & 1 |
| weight (kg) | 120kg |
