Place of Origin:
China
Brand Name:
YUYANG
Certification:
ISO, CE
Model Number:
YY099

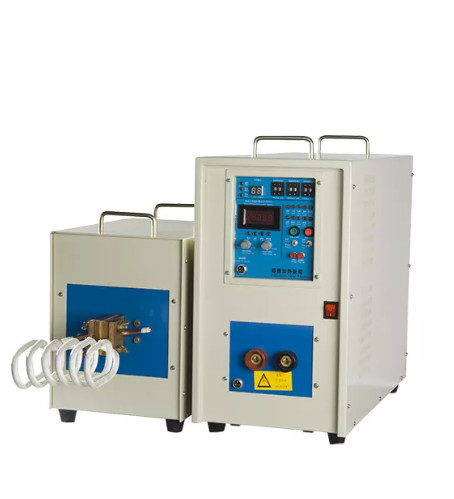

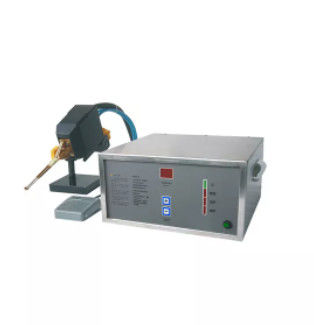

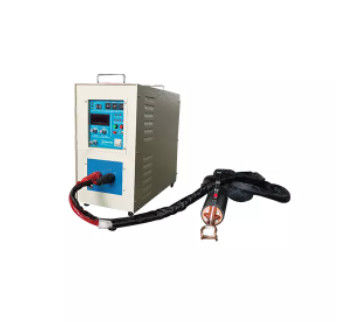

Custon Induction Heating Machine
Application:
1. Metal Hot Forming, Hot Forging, Hot Upsetting, Hot Pressing
Standard components hot forging, bolts & nuts hot forging, fasteners hot forming, automobile and motorcycle parts hot pressing, metallic tools hot forming.
2. Heat Penetration
Bar materials hot forging, round steels forge heating, square steels hot forging, copper bar hot punching.
3. Metals Continues Hot Forging
Hot forging of embryo gear parts, Gears hot forging, axle shaft hot forging, connecting rod continues hot forging, Bearings precision forging.
4. Heat distortion
Pipes Heat distortion, pipe bending, stainless pipe Heat distortion, copper rod Heat distortion, steel billets heat distortion, steel pipe heat bending.
5. Hot Rolling Heating
Steel rod hot rolling, steel billet hot rolling, copper rod hot rolling, square steels hot rolling, bar hot rolling, hot coating.
6. Other forge heating applications
Such as hot extrusion, hot squeezing, partial heating, heating before hot cutting, hot fitting, thermal refining.
7. Suitable for workpiece with various shape and different diameter.
8. Customized forging production solution.
Parameter:
|
Model
|
YY-15AB
|
YY-25AB
|
YY-30AB
|
|
Power supply
|
Single phase 220V50HZ
|
380V50HZ
|
380V50HZ
|
|
Operating voltage range
|
180V-250V
|
340-430V
|
340-430V
|
|
Output Power
|
15KW
|
25KW
|
30KW
|
|
Oscillation frequency
|
30-100KHZ
|
30-80KHZ
|
30-80KHZ
|
|
Output current
|
200-600A
|
200-1200A
|
300-1500A
|
|
Cooling water
|
0.06-0.12MPa, 7.5L/Min
|
0.06-0.12MPa, 7.5L/Min
|
0.08-0.16MPa, 7.6L/Min
|
|
Water temperature protection point
|
40°C
|
40°C
|
40°C
|
|
Dimensions
|
Main: 530*225*450mm
|
Main: 550*225*480mm
|
Main: 640*260*520mm
|
|
Minute: 370*210*370mm
|
Minute: 350*21 5*380mm
|
Minute: 440*260*410mm
|
|
|
weight
|
Main: 18kg
|
Main: 21.5kg
|
Main: 26 5kg
|
|
Minutes: 15kg
|
Minutes: 17kg
|
Minute: 20.5kg
|
