Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:
YY060
Automatic Color Fastness To Crocking Machine AATCC To Determine Textile Color Fastness
Description

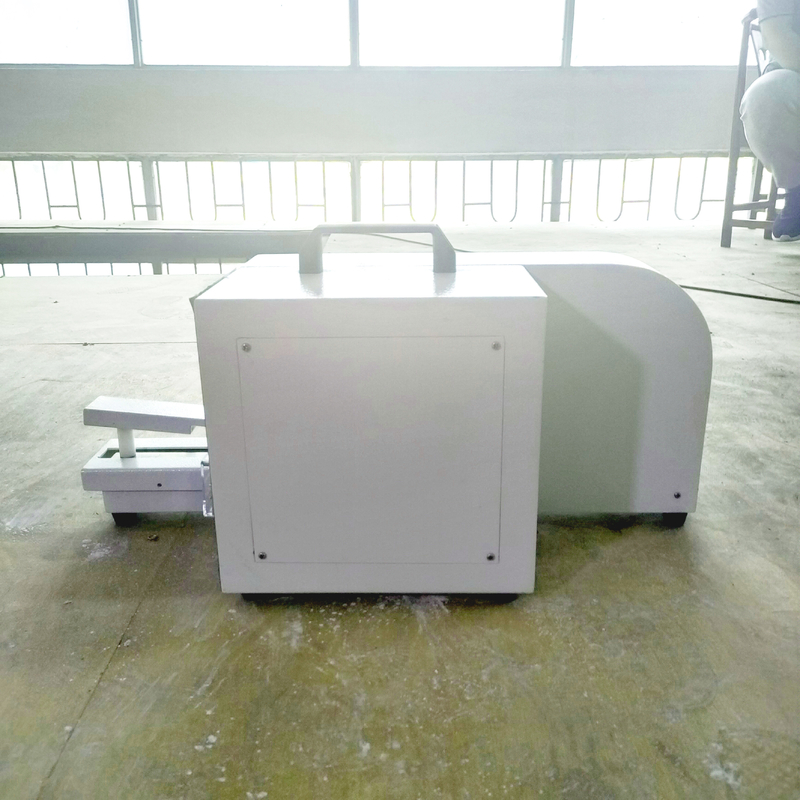

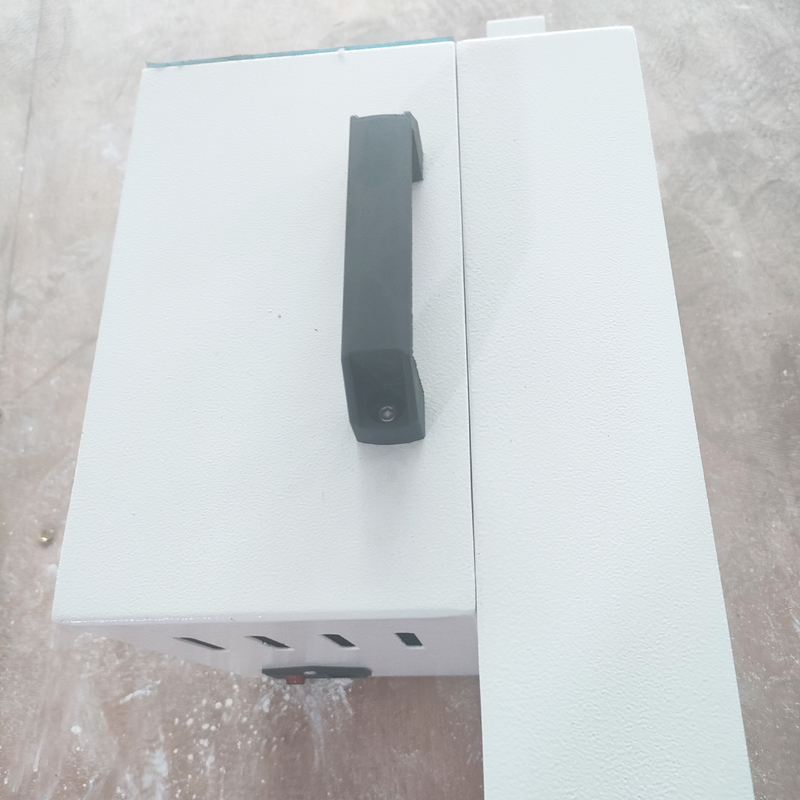

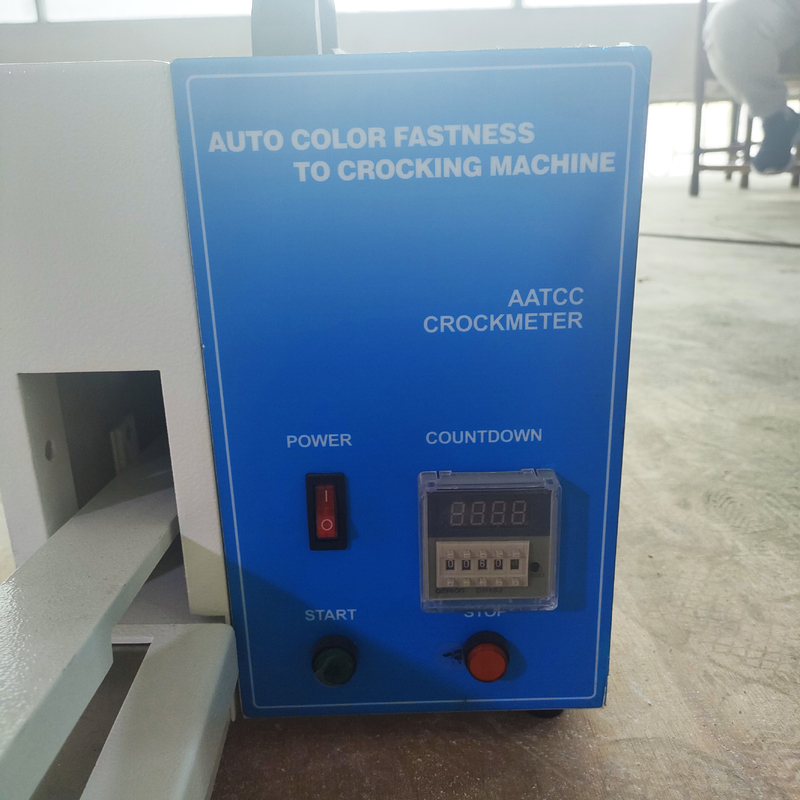

The instrument is of integral design and is mainly composed of a base, a friction transmission mechanism and a counter. The sample and the sandpaper are fixed on one side of the base with a sample clamp, and the handle is shaken to make the friction head with white cotton cloth be specified on the sample. The reciprocating motion of the stroke causes the white cotton cloth and the sample to rub against each other, and after ten times of rubbing, observes and compares the degree of stickiness on the white cotton cloth with the gray card, and judges the dyeing of the fabric sample or the stability of the surface coating. The evaluation and selection provide reference data. This instrument is suitable for all fabrics on or in textiles such as yarn, yarn dyed, printing and dyeing, and toy products.
AATCC 8/165, BS 1006 D02, JIS K6328, L0815, L1084, ISO 105 × 12 / D02, M & S C8, BS 4655
|
Rubbing head diameter
|
16mm±0.1
|
|
Friction stroke
|
104/100mm (adjustable)
|
|
Vertical pressure
|
9N±10% (AATCC standard)
|
|
Rubbing head operating speed
|
104±3mm/min (AATCC standard)
|
|
One test reciprocation
|
10 times
|
|
Friction speed
|
60±1rpm/min
|
|
Instrument weight
|
9.5kg (21lb)
|
|
Instrument size
|
600mm (24 inches) x 230mm (9 inches) x 260mm (11 inches)
|
|
Power connection
|
220V, 50Hz
|
|
Standard rubbing white cloth
|
50 x 50mm, desizing, bleaching, cotton fabric without fluorescent whitening agent and finishing agent.
|
