Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:
YYF045

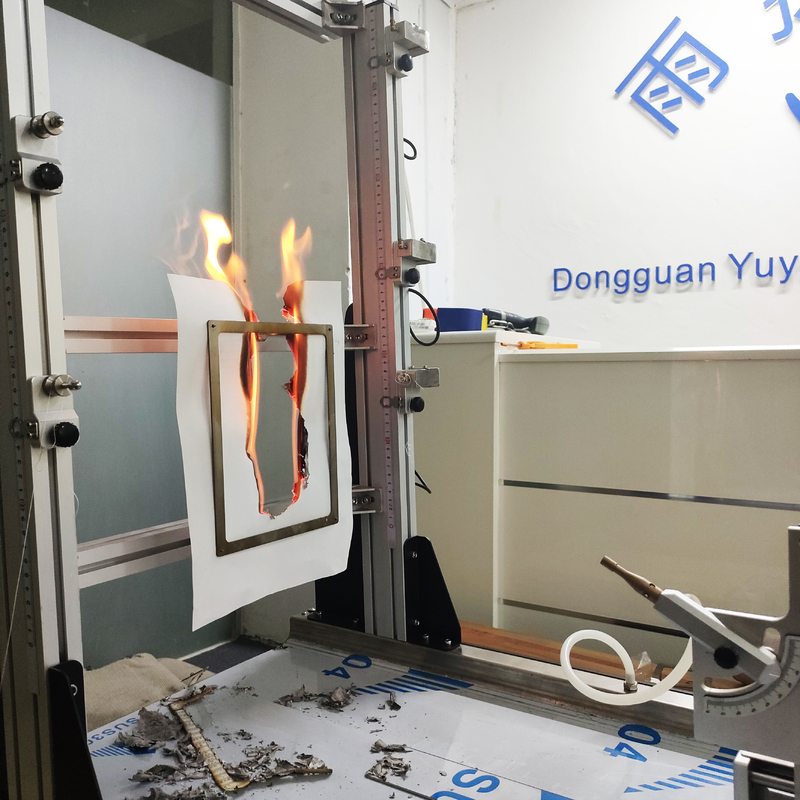

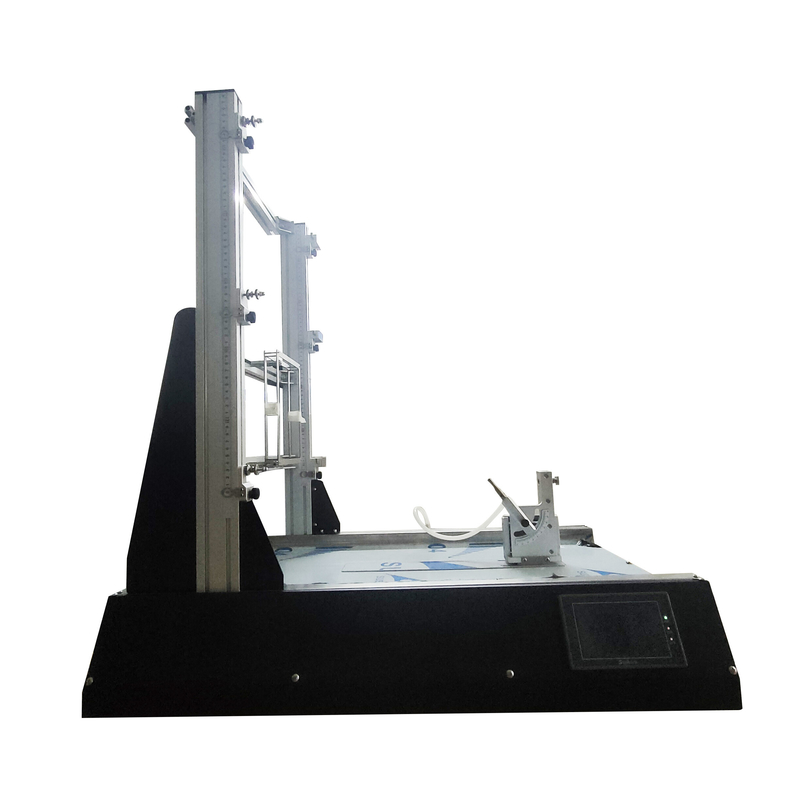

ISO 6941 ISO 6940 Vertical Combustibility Tester For Textile Fabric Testing
Description:
Multi-purpose Flammability Tester, to determine the flammability resistance of textile fabrics and for the flammability test of toys and toy materials.
Its vertical test frame with changeable specimen holders and burner covers offer a wide range of vertical oriented textile fabrics. This machine meet almost all the BS, EN, ISO and other similar standards which is defined as a test method that a vertical oriented fabric subject to a small flame.
Standards:
BS EN ISO 6940, EN ISO 6941, EN ISO 10047,EN71-2.
Feature:
1. PLC control, precise timing, Chinese man-machine interface.
2. Different test methods are equipped with different sample fixtures, and the fixture operation is simple and convenient.
3. Tongming fixture can be adjusted arbitrarily, suitable for different samples.
4. The flame angle and position can be adjusted arbitrarily.
Technical Parameter:
| Product name: | Multi-purpose Flammability Tester |
| Ignition of the time range:: | 0-99.99S |
| Burner: |

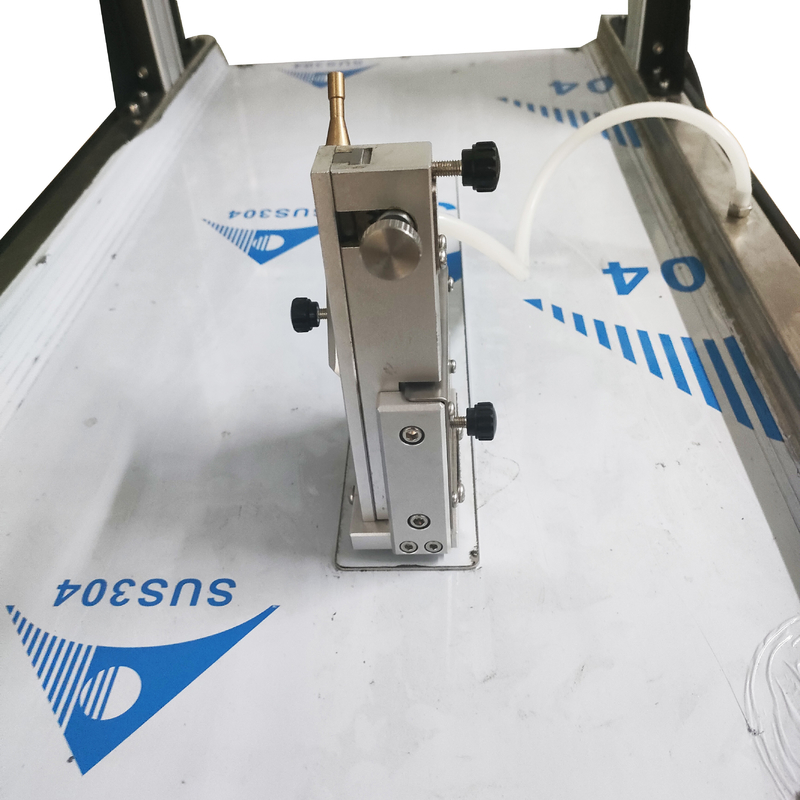

The throat diameter of the burner is Φ0.19+0.02mm, the length is 75mm, and the mixed air outlet is Φ1.7, The air inlet is 4XΦ4 mm according to ISO6941
|
| Accuracy: | 0.1s |
| Timing range: | 0-999.9s |

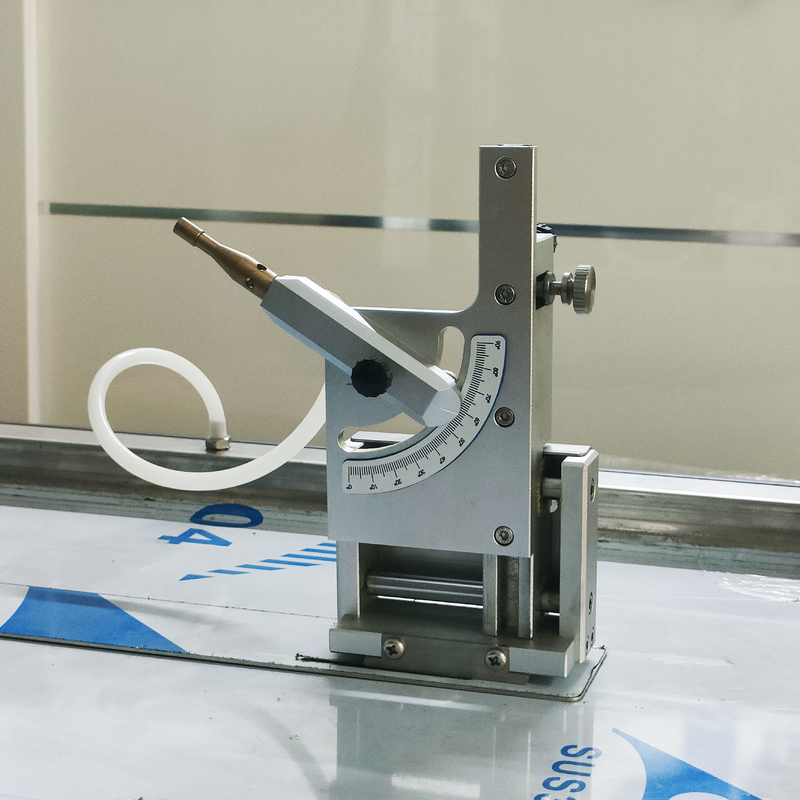

| Fire Mouth angle: | 0°/30°/90°(Adjustable) |
| Flame Measurement Height: | 20mm/40mm |
| Dimension inside U clamp: | 80mmx600mm |
| Mark line on U clamp: | adjustable |
| Standards : | BS EN ISO 6940, EN ISO 6941, EN ISO 10047,EN71-2. |
| Power: |
220 /110 V 50/60 Hz |
