Place of Origin:
CHINA
Brand Name:
YUYANG
Certification:
CE
Model Number:
YYP008C

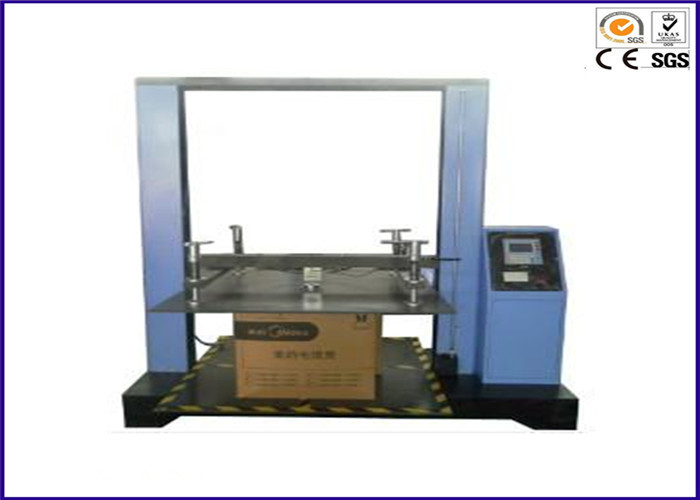

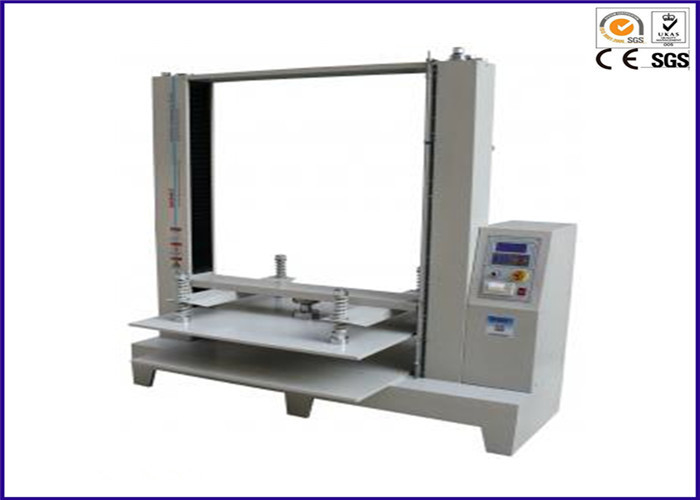

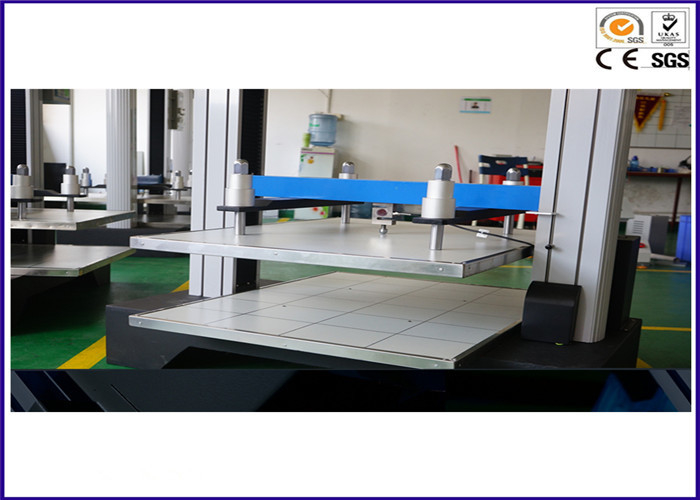

Microcomputer Carton Resist Compression Test Machine Package Testing Equipment
Description:
Electronic carton compression testing machine used to test the compressive strength
of cartons, containers and other packaging structures, It adopts dynamic holding pressure technology,
simulates stacking test , in order to know the compressive strength and impact resistance capacity of
product packaging during transportation and stacking. The test results can used as the reference for
packaging design.
Features:
1.Taiwan AC frequency conversion motor drives, synchronous belt drive;
2. Adopts the gapless ball screw to lift, precise and stable;
3. With the U.S. high-precision explosion-proof type LOAD CELL;

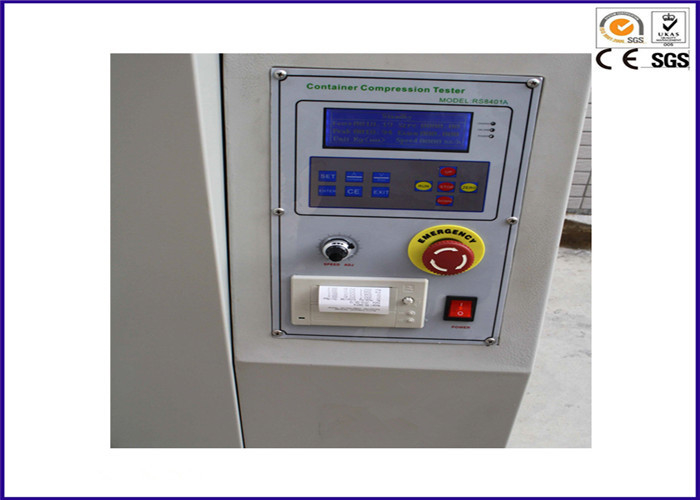

4. Measured using microcomputer control, dual-LCD display: compressive strength value , maximum
compressive strength value (maximum crushing strength), displacement, carton deformation (when
the carton crushing deformation), etc. 4 values
5. to adopt Japan high-precision measurement to measure displacement.
6. automatically print the test data
| Unit exchange | kgf, Ibf, N, |
| Resolution | 1/10,000 |
| Accuracy | ±1% |
| Display | LCD display |
| Compression space | 100*100*100cm(or designated) |
| Control system | AC converter, gear, Motor |
| Test speed | 12～350mm/min |
| Protector | Leakage protection, overload auto-shutdown, displacement limit protection |
| Printing |
Automatic printing the result, Print (maximum power, average, automatic abtained-point value, the breakpoints ratio, date) |
| Volume | 153×121×180cm |
| Power | 1∮ AC 220V 5A |
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(11.00%),Eastern Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Northern Europe(9.00%),South Asia(9.00%),North America(7.00%),South America(7.00%),Western Europe(7.00%),Eastern Europe(6.00%),Mid East(6.00%),Oceania(5.00%),Central America(3.00%),Africa(0.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Testing Equipment,Tensile Testing Machine,Environmental Test Chamber,Fire Testing Equipment,Induction Heating Machine
4. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Send your inquiry directly to us
