Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:
YYF043
Description:

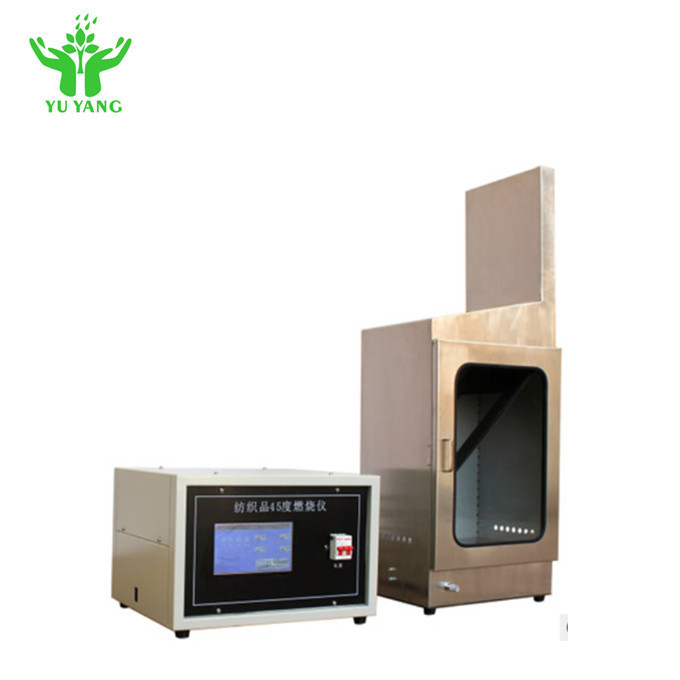

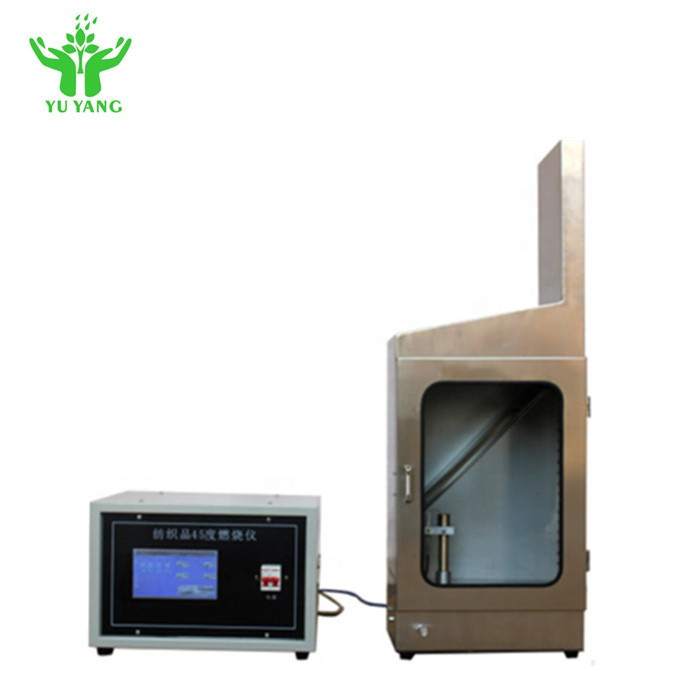

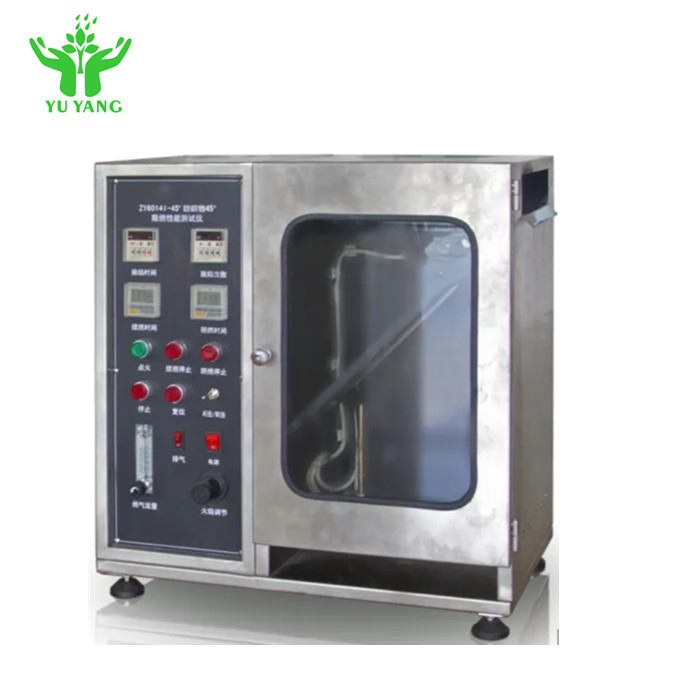

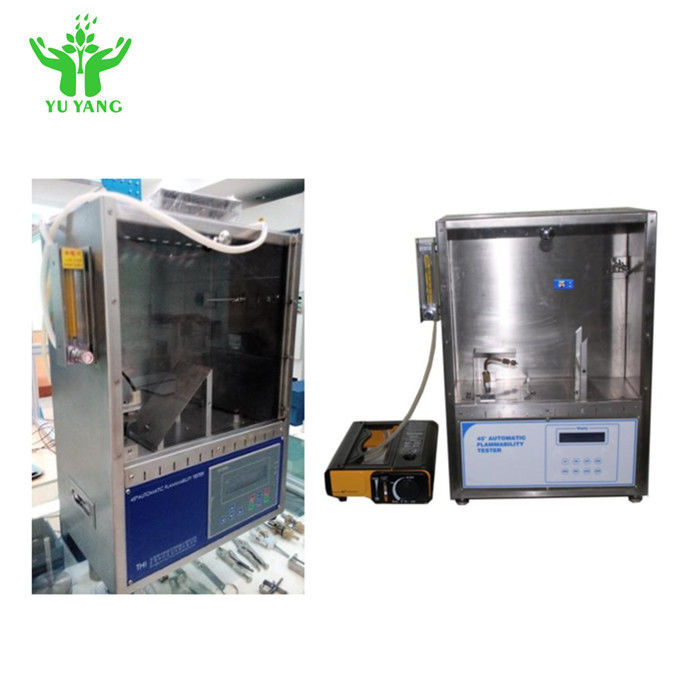

45 degree flammability tester, check the flammable performance of the textile
Stainless testing room with glass window,after ignition automatic time (0.01 second precision) automatic or manual ignition.
Parameters:
Manual firing device, including sample holder and brushing device.
Spread time scope: 0-99.99s
Firing time: 1s or specified
Resolution: 0.01s
Specimens clamp inside dimension: 152×38mm
Flame height: 15.875mm
Dimension: 540×410×300mm(L×W×H).
Igniter model: comply to ASTMD1230
Power Supply: 220V
Accessories: clamps 4pcs, weights, calibration plate 1pcs, Flame Gauge 1pcs
| Spread time scope: | 0-99.99s |
| Firing time: | 1s or specified |
| Specimens clamp inside dimension: | 152×38mm |
| Resolution: | 0.01s |
| Flame height: | 15.875mm |
| Power Supply: | 220V |
Standards:
ASTM D1230,FTMS 191-5908,CRF 16-1610,CALIF TB117,NFPA 702,ISO 8124-2
Net weight: 15KG, Gross weight: 21KG
Plywood box size: 50*42*60cm
