Place of Origin:
China
Brand Name:
YUYANG
Certification:
ISO, CE
Model Number:
YY097
Digital Universal Tensile Machine For Abrasion Testing 300kn
Product Description
30kn universal tensile strength testing machine is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

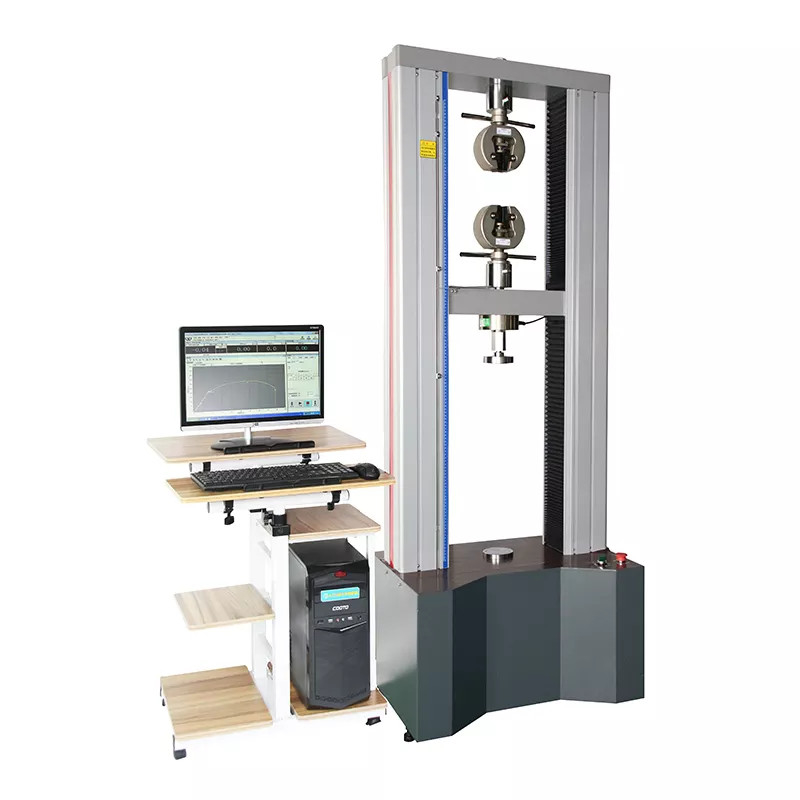

30kn universal tensile strength testing machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Standard
Including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.
Technical characteristics
1. Imported motor, low noise and precise control
2. Computer LCD display, Chinese menu, HP printer
3. During the test, the tensile time and the maximum test force are displayed in real time; and can be displayed.
4. In the 0-50N measurement range, the accuracy can reach 0.001N and the resolution is 0.001N. It is professional for the measurement of the corresponding parameters of waterproof materials.
5. High degree of automation, the instrument design uses advanced domestic and foreign devices, single chip microcomputer for information sensing, with automatic reset, data memory, overload protection
6. Get measurement results directly: After completing a set of tests, you can easily directly display the measurement results and print statistical reports, including averages, standard deviations and coefficients of variation
7. Optional with standard serial RS232 interface, which can provide data communication for the upper computer comprehensive report system
8. Multi-function, flexible configuration: the instrument is mainly used for measurement of metal and non-metal materials, changing the configuration of the instrument can be widely applicable to the measurement of other materials
Parameter
| Model | YYT300 |
| Max. Force | 30000 kg (300KN) |
| Load cell | Germany brand load cell for high accuracy |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 1200mm including fixture |
| Load cell Resolution | 1/250,000 |
| Load Precision | ≤0.5% |
| Test speed | 0.1~500mm/min (adjustable) |
| Test width | 400mm |
| Software | TM 2101 |
| Host size | 750*520*1740mm (size can be customized) |
| Weight | 212kg |
| Power supply |
220V, 50Hz, 1.5kW |
