Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:
YYW17

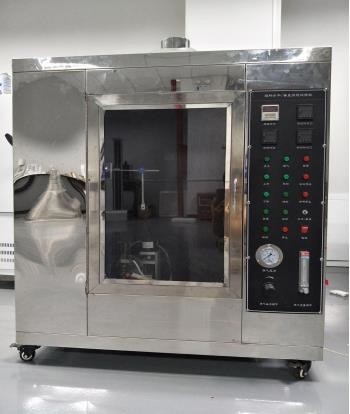

UL94 Flammability Testing Equipment Horizontal Vertical Flammability Tester
Description:
UL-94 Flame Retardant Tester is used for the flammability testing of plastic materials such as V-0 V-1 V-2, HB, 5V, HF-1 HF-2, HBF material or foam, and used in consumer electric devices and appliances for flammability rating assessment. Such as insulating housing of household appliances, switch panel, the printed circuit board and insulating material etc
Horizontal and Vertical Flammability Testing Machine
UL 94 flame chamber. Horizontal flame chamber, vertical flame chamber
For the flammability testing of plastic materials used in consumer electric devices and appliances. Stainless steel construction with black interior and large sliding window for easy viewing. Includes a fully adjustable specimen support and precision gas flow controls.
Main specification:
Test room: 0.85 m³
Time adjustment of continuous flame: 0 ~ 99minutes99seconds
Time adjustment of afterflame: 0 ~ 99minutes99seconds
Time adjustment of afterglow: 0 ~ 99minutes99seconds
Flame height: is easy to adjust, from 20mm to 175mm according to the standard.
Timer: 0~999.9s+/-0.1 s (adjustable)
Burn angle: 20 °,45 °,90 ° (that is 0 °) adjustable
Burner: inner diameter Ø9.5mm±0.3mm, (Bunsen burner) length of 100mm
Gas: 98% methane
Temperature testing range: 0~1000 degree
Power: AC 220V,50Hz
Size:1100mm×700mm×1300mm
Standards:,UL 94<<Test for Flammability of Plastic Materials for Parts in Devices
Appliances>> ,IEC60950:1999, IEC 707 ,ISO1210:1992 ,GB/T 5169, GB/T 4706
Accessories:
Micro gas tanks, Micro gas cylinders 2pcs, lighting device, air extractor Gas flow control valve, Gas pressure gauge, Gas pressure regulator, Gas flow meter, Gas u-shap ed pressure gauge and specimen clamp,, power line 1pcs
Testing Standards
UL 94-2006 IEC 60695-11-3 IEC 60695-11-4
UL94:Tests for Flammability of Plastic Materials for Parts in Devices and Appliances
UL94HB: Horizontal Burning Test
V-0,1,2: 20mm Vertical Burning Test
94-5VA,B: 500W(125mm) Vertical Burning Test
94VTM-0,1,2: Thin Material Vertical Burning Test
94HBF,94HF-1,2 : Horizontal Burning Foamed Material Test
IEC 60695-11-10:Fire hazard testing - Part 11-10: Test flames - 50 W horizontal and vertical flame test methods
IEC 60695-11-20: Fire hazard testing - Part 11-20: Test flames - 500 W flame test methods
IEC 60695-11-4:Fire hazard testing - Part 11-4: Test flames - 50 W flames-Apparatus and conformational test method
IEC 60695-11-3:Fire hazard testing - Part 11-3: Test flames - 500 W flames-Apparatus and conformational test method
What is UL94 Horizontal & Vertical Flammability Tester?
UL94 Horizontal & Vertical Flammability Tester is a testing device which is utilized to conduct the Standard test for ensuring the Flammability performance of Plastic Materials which are used for Parts in Devices and Appliances. This is to note that the test doesn’t show the real hazards faced by the specimen in real-life fire accidents.
