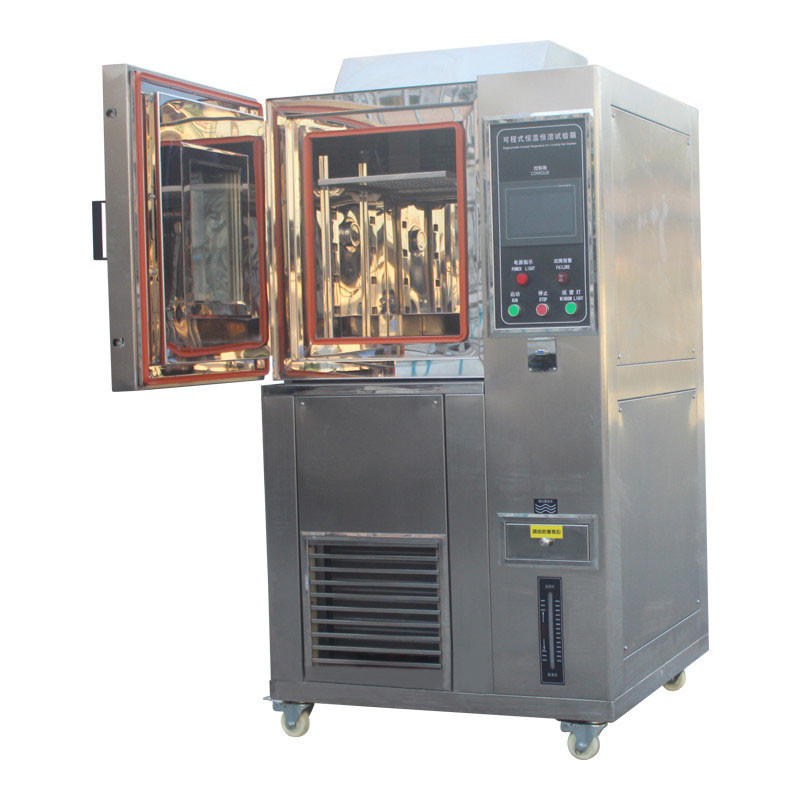

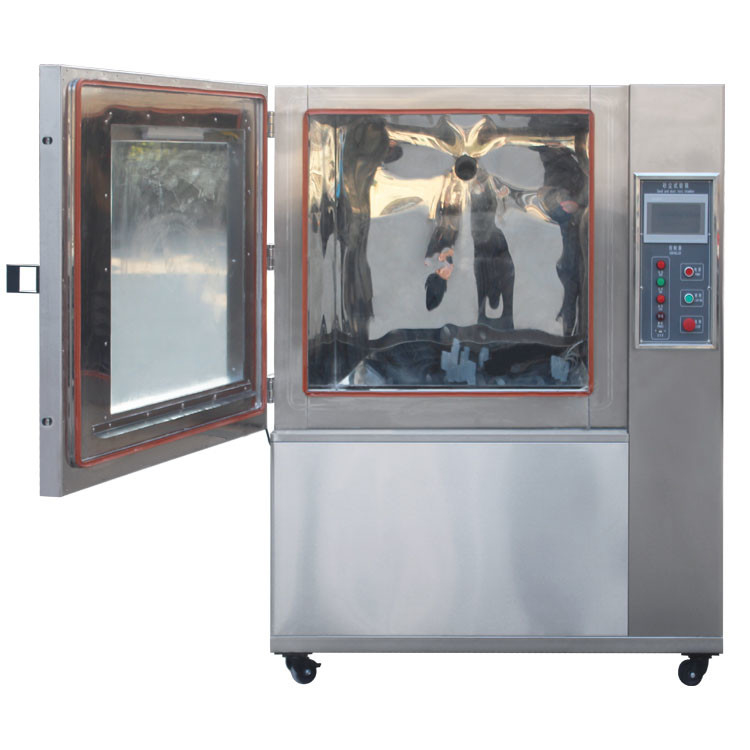

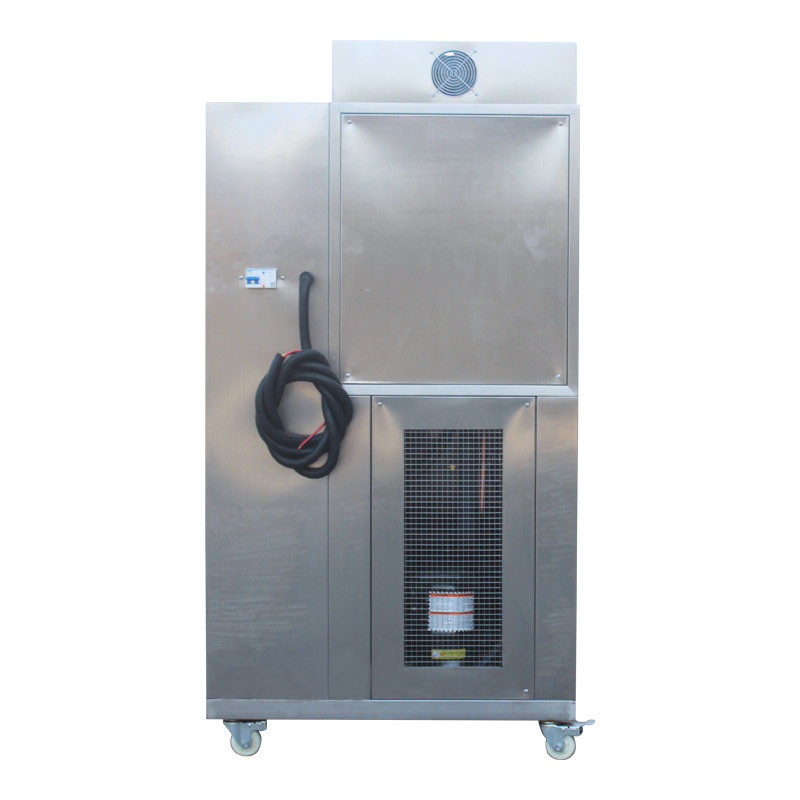

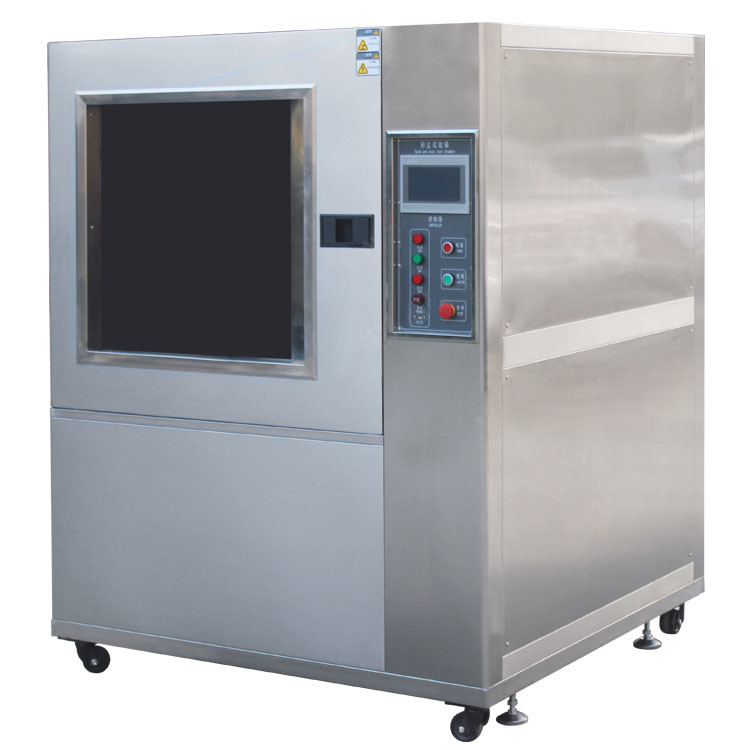

Touch Screen Environmental Test Chamber Constant Temperature And Humidity Test Equipment Lab

Environmental Test Chamber Constant Temperature And Humidity Test Equipment Lab

Description:

The environmental test chamber have temperature change rates from 1 to 3°C per minute in average and controlled humidity from 10% to 95%. There are 6 sizes with interior volumes of 100 to 1000 Liters or we also provide tailor-made chambers of size. On the advance model for Cycling Chambers have temperature change rates from 3 to 15 °C, controlled humidity from 10 to 95%.t.

Features:

1.Import LED touch-screen controller,( Korea TEMI880), User-friendly, operation easy and simple.

2.Style design is perfect,arc type and surface spray coating,high texture appearance,use plane handle,easy to operate,safe and reliable.

3.Huge observation window,wide and bright visio.Use three layer vacuum coating window and energy-saving fluorescent lamp, unnecessary Windshield wiper mist,keep Clear observation effect,observe sample condition in any time.

4.Water and electricity share to ensure safety, Humidifying system channel separate from power,controller and circuit board,to avoide leaking affect circuit,Improve safety.

5. Frozen and control system advanced and reliable,imported France Compressor, eco-friendly refrigerant

The control system:

1, control mode: balanced thermostat humidity control system (BTHC), the PID control SSR, so that the heat and humidification is equal to the amount of heat and moisture loss, so the machine has long-term stability.

2, temperature and humidity controller: "TEMI-850" English interface, the screen displays data and information interactively temperature and humidity control,and single-point and programmable contro, adjustable screen backlighting.

1) Resolution: 0.01 ℃, 0.01% R.H

2) Temperature range: 0 ℃ ~ +150 ℃

3) Humidity range: 10% ~ 99.9% R.H

4) Program segment: 10 groups with 100 program memory segment

5) Each segment can also set the temperature, humidity and time, re-run 999 times

6) The program runs with standby, jump function, and functions to memory

7) the machine has the preseting value of time off and program stop functions

8) Start and stop with the appointment and failure prompts

9) thermoscope: PT-100 2 pcs

10) The main components of the system is equipped with a safety detector interface unit, when the abnormal failure occurs, fault conditions.show immediately from the screen and power supply cut off automatically.

11) the machine has a cumulative run time display, available for machine time and run-time for your reference.

12) the program runs as SV curve window

Specifications:
