Place of Origin:
China
Brand Name:
YUYANG
Certification:
ISO: 3768, 3769, 3770; ASTM: 8117, B268
Model Number:
YYJH37

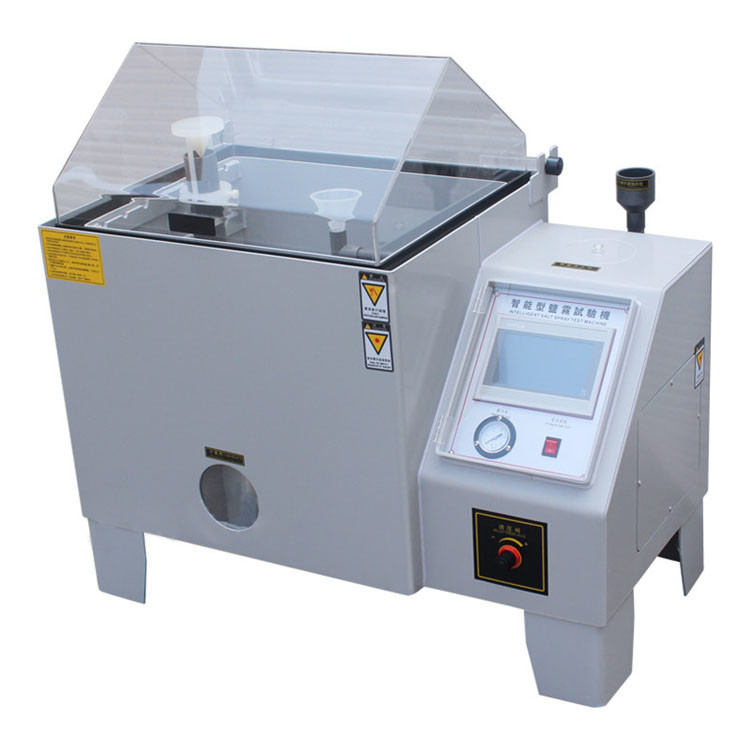

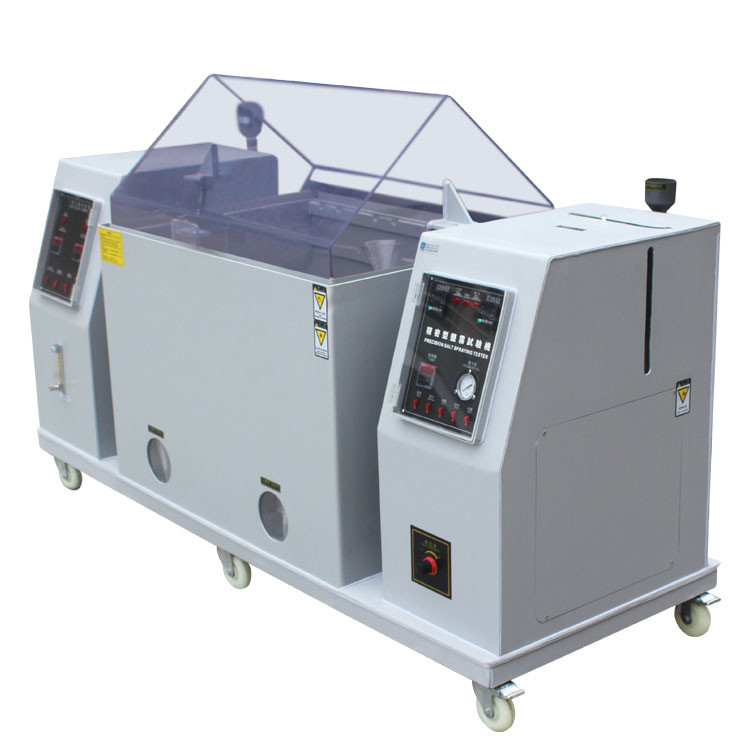

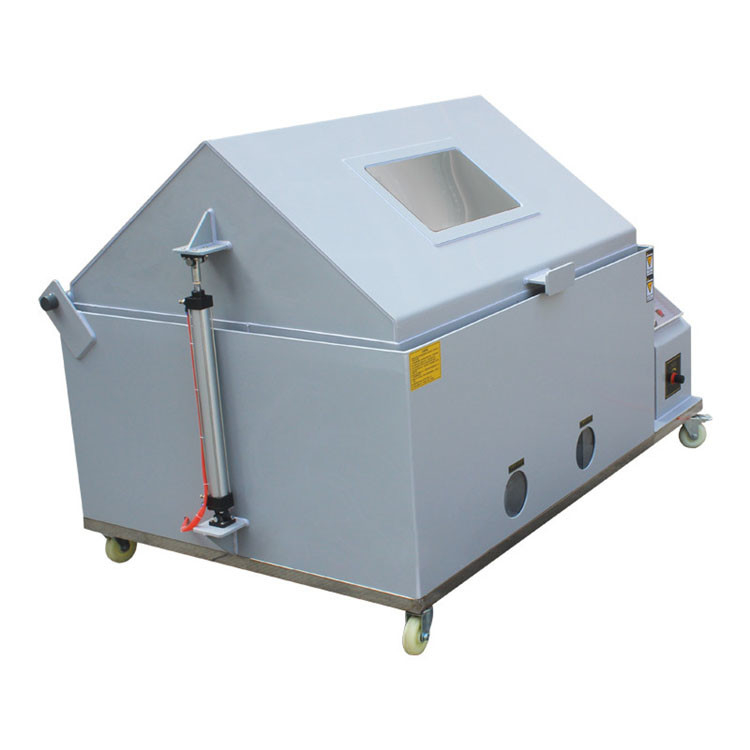

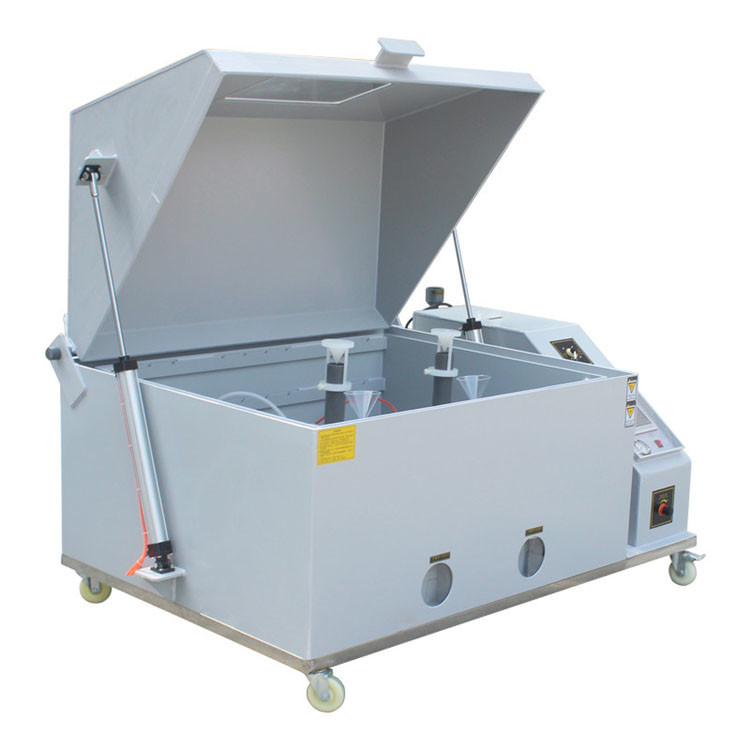

High Configuration Salt Spray Test Machine X-60 Salt Spray Corrosion Test Equipment
Product introduction:
Salt Spray Test Chamber is adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, metal products, it carries out the anti-corrosive treatment to test the corrosion resistance of the products.
adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
Corresponding standard of the Salt Water Spray Test Chamber for CASS, NSS Test:
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
Purpose :
Salt spray test machine is applicable for the salt spray corrosive test for the protection layer of components, parts, electronic and electrical parts and metal materials and industrial products
Control system:
Temperature control:Control the chamber temperature, according to standard, salt test is 35°C, and corrosion test is 50°C.
Saturated air barrel temperature controller:Control the saturated air barrel temperature, salt test is 47°C, corrosion test is 63°C.
Timer:Adjustable, can set the time in 0.1s~9999hr free, shut down automatically when the time is over.
Running timer:Direct read 0-9999.9hr, record the whole work hours.
Heat sink temperature controller:Control the temperature of heat sink, Controller with temperature control of the testing machine laboratory environmental temperature changes around the difference is too large, also need to meet the adjustments, the setting method in the control box.
Salt test :Chamber temperature set 35°C, heat sink temperature set is 47°C(40°C-50°C).
Main technical parameters :
| Model | YY1015-60 | YY1015-90 | YY1015-120 |
| Inner box size: ( L×W×H ) cm | 60×40×45 | 90×60×50 | 120×100×50 |
| Outside box size: ( L×W×H ) cm | 107×60×118 | 141×88×128 | 190×130×140 |
| Equipment material: | P.V.C & P.P | ||
| Temperature range: | 35°C~55°C | ||
| Temperature fluctuations: | ≤±0 . 5°C | ||
| Temperature uniformity: | ≤±2°C | ||
| Temperature precision: | ±1°C | ||
| Test chamber temperature: | NSS ACSS 35±1°C CASS : 50±1°C | ||
| Saturated air barrel temperature: | NSS ACSS 47±1°C CASS 63±1°C | ||
| Brine temperature: | 35°C±1°C | ||
| Spray quantity: | 1 . 0~2 . 0 ml / 80cm2 / hr | ||
| PH: | NSS ACSS6 . 5~7 . 2 CASS 3 . 0~3 . 2 | ||
| Lab volume: | 108L | 270L | 600L |
| Brine tank capacity: | 15L | 25L | 40L |
| Power: | 1AC220V , 10A | 1AC220V , 15A | AC 1 , 220V , 30A |
| Safety Devices: | Overheating prevention circult-breaker,dehydration and overheating prevention mechanism,breakdown indicator light |
||
| Standard accessories: | Test salt, measure bucket, tool etc 1 set | ||
Specifications:
Salt Spray Test Chamber
1. Durable hard PVC construction
2. Anti-corrosion ,
3. Easy clean & operate
4. 1 year warranty
Temperature control:Control the chamber temperature, according to standard, salt test is 35°C, and corrosion test is 50°C.
Saturated air barrel temperature controller:Control the saturated air barrel temperature, salt test is 47°C, corrosion test is 63°C.
Timer:Adjustable, can set the time in 0.1s~9999hr free, shut down automatically when the time is over.
Running timer:Direct read 0-9999.9hr, record the whole work hours.
Heat sink temperature controller:Control the temperature of heat sink, Controller with temperature control of the testing machine laboratory environmental temperature changes around the difference is too large, also need to meet the adjustments, the setting method in the control box.
Salt test :Chamber temperature set 35°C, heat sink temperature set is 47°C(40°C-50°C).
