Place of Origin:
China
Brand Name:
YUYANG
Certification:
ISO, CE
Model Number:
YY095

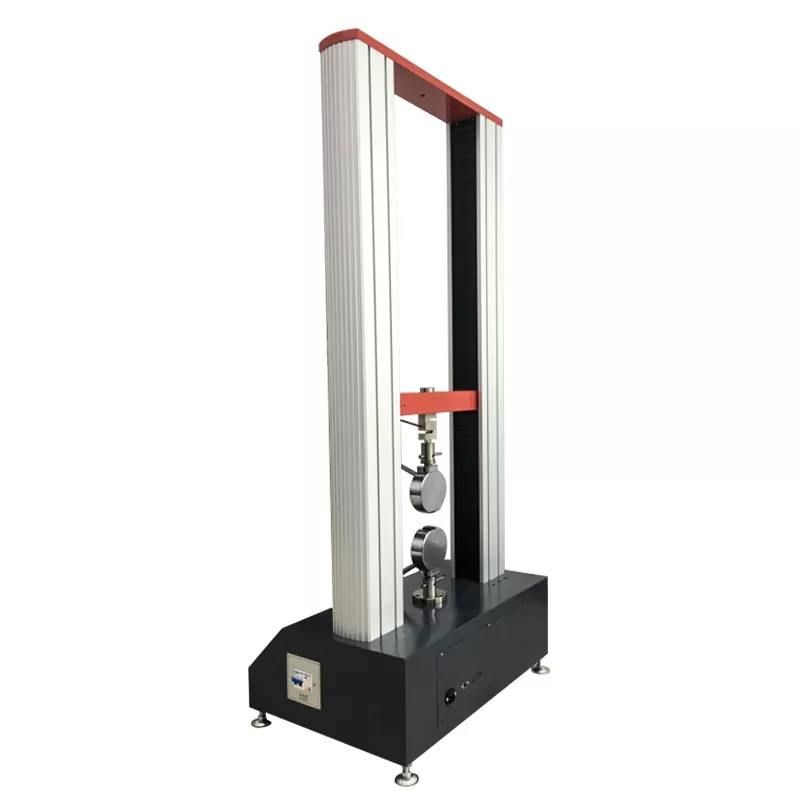

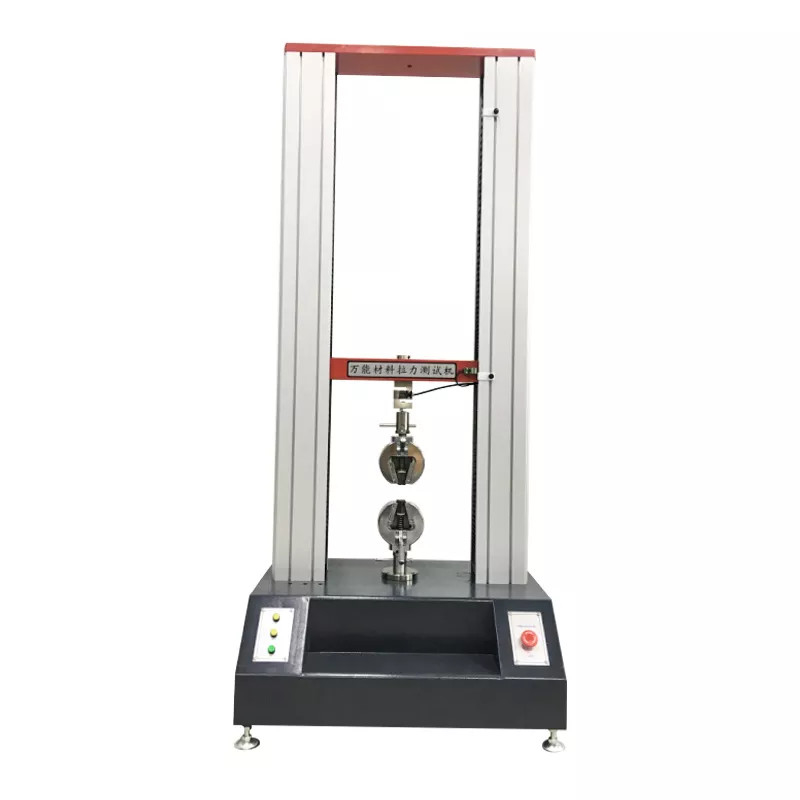

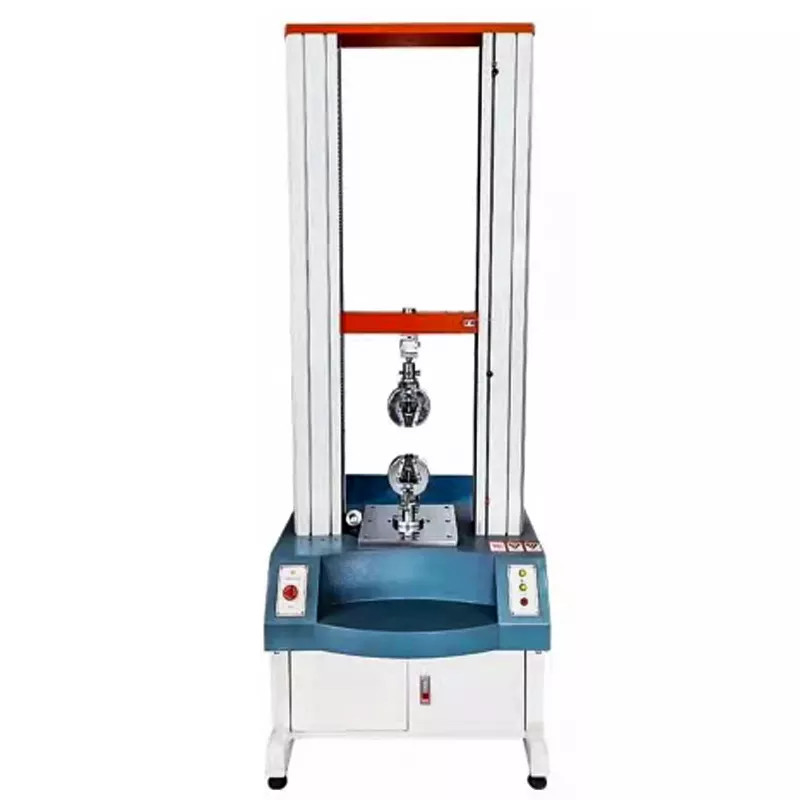

Electro Mechanical Tensile Testing Machine Plastic Tensile Impact Testing Machine
Applications
Universal Tensile testing equipment is the double columns pulling and pressure testing machine,which is suitable for testing the physical property of rubber, plastic film, composite materials, soft packaging materials, plastic hose, adhesive, adhesive tape, adhesive sticker, medical patch, protective film, release paper, combination cover, metal foil, nafion, backplane materials, non-woven fabric, rubber, paper fiber and other materials.
And get the goods relevant physical parameters in tension, compression, bending, shearing, tearing and peeling, puncture, three point bending condition and so on.
Standard:
Including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.
Technical characteristics
1. Imported motor, low noise and precise control
2. Computer LCD display, Chinese menu, HP printer
3. During the test, the tensile time and the maximum test force are displayed in real time; and can be displayed.
4. In the 0-50N measurement range, the accuracy can reach 0.001N and the resolution is 0.001N. It is professional for the
measurement of the corresponding parameters of waterproof materials.
5. High degree of automation, the instrument design uses advanced domestic and foreign devices, single chip microcomputer
for information sensing, with automatic reset, data memory, overload protection
6. Get measurement results directly: After completing a set of tests, you can easily directly display the measurement results and
print statistical reports, including averages, standard deviations and coefficients of variation
7. Optional with standard serial RS232 interface, which can provide data communication for the upper computer comprehensive
report system
8. Multi-function, flexible configuration: the instrument is mainly used for measurement of metal and non-metal materials, changing
the configuration of the instrument can be widely applicable to the measurement of other materials
Parameter
| Model | YYT020 |
| Max. Force | 2000 kg (20KN) |
| Load cell | Germany brand load cell for high accuracy |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 1200mm including fixture |
| Load cell Resolution | 1/250,000 |
| Load Precision | ≤0.5% |
| Test speed | 0.1~500mm/min (adjustable) |
| Test width | 400mm |
| Software | TM 2101 |
| Host size | 750*520*1740mm (size can be customized) |
| Weight | 168kg |
| Power supply |
220V, 50Hz, 1.5kW |
