Place of Origin:
China
Brand Name:
YUYANG
Certification:
ISO, CE
Model Number:
YY095

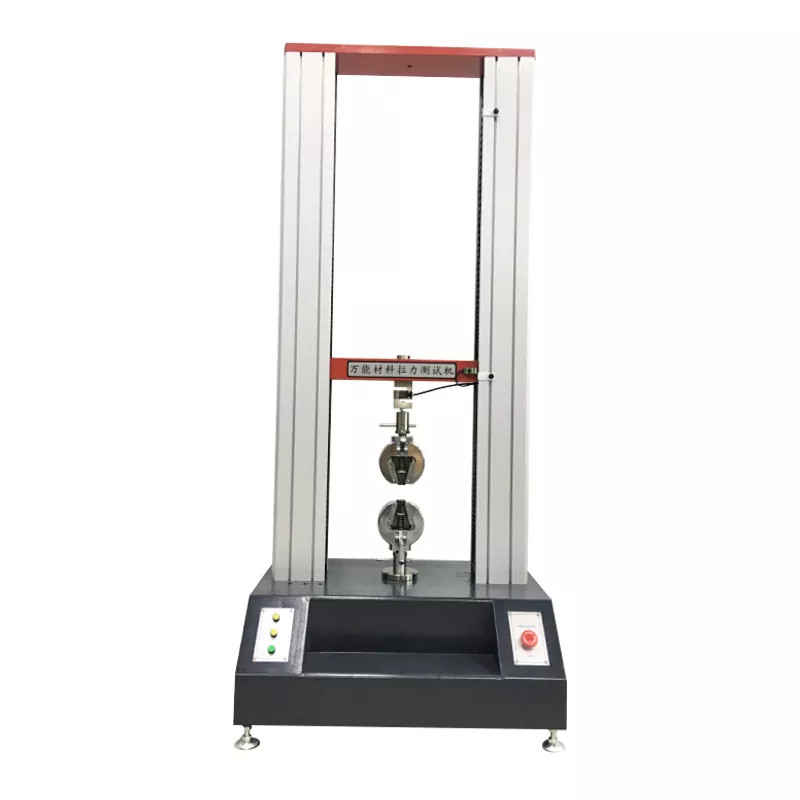

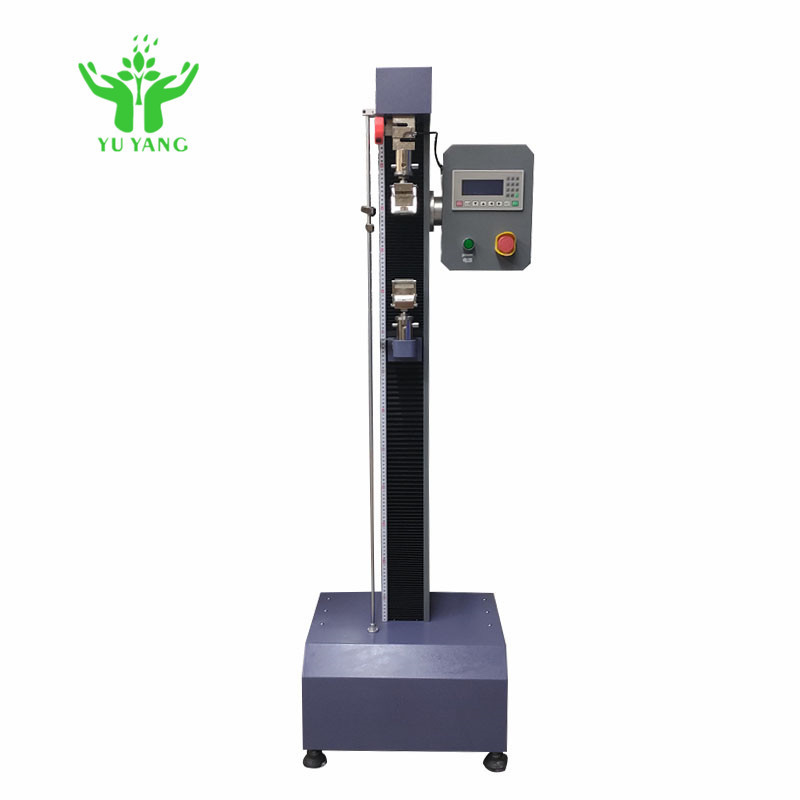

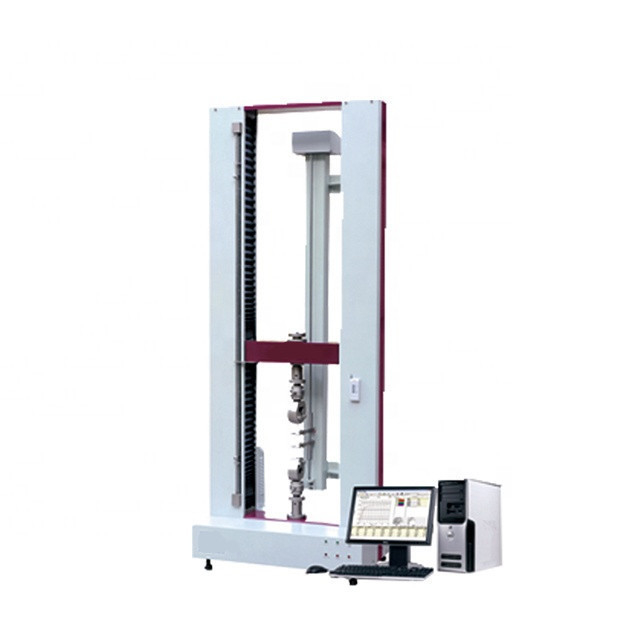

Computer Control New Tensile Testing Machine 100kn Digital Display Tensile Testing Machine
Applications
1. High-precision, high-quality, cost-effective.
2. Professional application software, there are a variety of standard options, you can also compile their own test parameters. Chinese interface, easy operation.
3. The high-definition LCD screen control panel, direct input test parameters and display the force-displacement curve;
4. Can be directly connected printer, print the test results, and convenient.
5. For the tensile test, compression, bending, shear, slip properties. Trades involving metal, plastic, rubber, glass, steel, textiles, paper, yarn, wire, adhesives, films, food, composite materials.
Rubber tape peeling test at 90 / 180 °
Rubber / plastic tensile test
Plastic bending test
Wire / sheet tension / bending test
Fabric tearing test
Drink package compression / bursting test
Standard:
Including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.
Technical characteristics
1. Imported motor, low noise and precise control
2. Computer LCD display, Chinese menu, HP printer
3. During the test, the tensile time and the maximum test force are displayed in real time; and can be displayed.
4. In the 0-50N measurement range, the accuracy can reach 0.001N and the resolution is 0.001N. It is professional for the
measurement of the corresponding parameters of waterproof materials.
5. High degree of automation, the instrument design uses advanced domestic and foreign devices, single chip microcomputer
for information sensing, with automatic reset, data memory, overload protection
6. Get measurement results directly: After completing a set of tests, you can easily directly display the measurement results and
print statistical reports, including averages, standard deviations and coefficients of variation
7. Optional with standard serial RS232 interface, which can provide data communication for the upper computer comprehensive
report system
8. Multi-function, flexible configuration: the instrument is mainly used for measurement of metal and non-metal materials, changing
the configuration of the instrument can be widely applicable to the measurement of other materials
Parameter
| Model | YYT020 |
| Max. Force | 2000 kg (20KN) |
| Load cell | Germany brand load cell for high accuracy |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 1200mm including fixture |
| Load cell Resolution | 1/250,000 |
| Load Precision | ≤0.5% |
| Test speed | 0.1~500mm/min (adjustable) |
| Test width | 400mm |
| Software | TM 2101 |
| Host size | 750*520*1740mm (size can be customized) |
| Weight | 168kg |
| Power supply |
220V, 50Hz, 1.5kW |
