Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:
YYP038

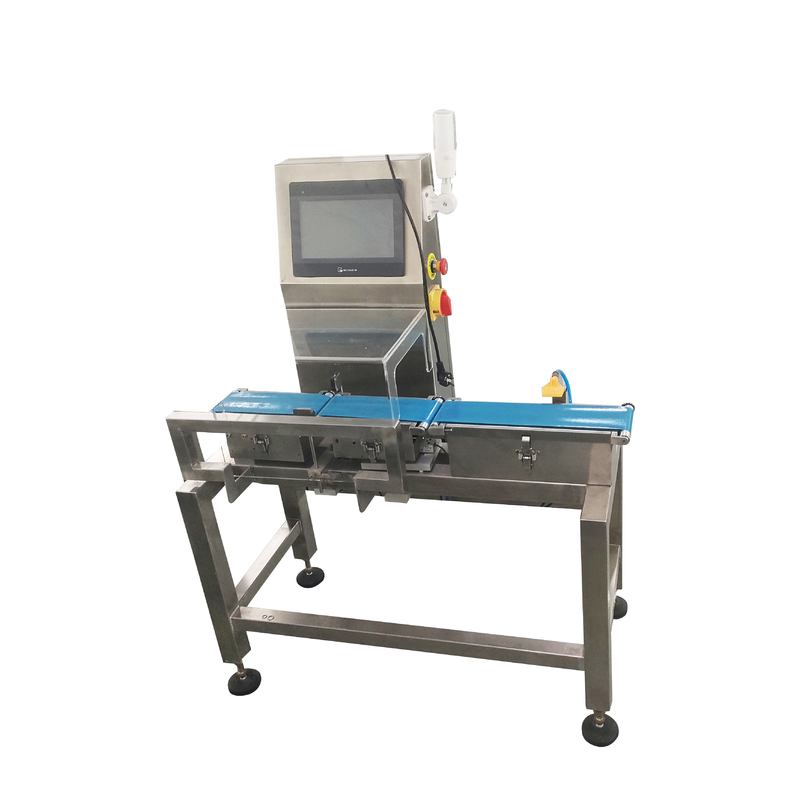

Metal Detector Check Weigher With Rejector Bottle High Speed And Combo Check Weigher
Detailed Descriptions:
Space and cost savings are obtained with Vfinder’'s integrated inspection solution, the combination checkweigher and metal detector system. In one system you can receive high accuracy weighing and metal detection. Cut waste and improve safety compliance within a small footprint while minimizing false rejects. Best performance in the food and pharmaceutical industries
Feature:
1. Large LCD touch screen display, English and Chinese interface, suitable for domestic and foreign customers.
2. High precision sensor, high detection accuracy and fast detection speed.
3. The graph shows the statistical distribution of sorting results to grasp the sorting dynamics in real time.
4. 100 product sorting parameters can be preset, and different products can be switched quickly.
5. High speed and high precision digital filtering algorithm, data filtering parameters, automatic learning.
7. Dynamic zero tracking, including zero tracking during continuous operation of the equipment, can automatically correct the weight value.
8. Frequency conversion motor drive, effectively improve the operation stability of the equipment.
9. Preset data transmission interface. Product sorting parameters can be set or exported via USB.
10. The photoelectric retriggering mode is adopted to effectively improve the accuracy of the equipment.
11. Multiple culling methods are optional. Overweight or underweight products can be eliminated.
12.According to product requirements, protective bars are added to the equipment to prevent samples from being dumped during testing
Parameter:
|
main-machine interface |
10.1-inch color TFT touch screen |
|
Manipulation language |
English |
|
Size |
About L1420mm* W730mm *H1250mm |
|
Detection size |
L(mm):1～250 W(mm):1～100 H(mm):1～150 |
|
Weighing section size |
L400mm*W200mm |
|
The height of the belt from the ground |
680mm |
|
Minimum scale |
0.1g |
|
Small bottle accuracy |
±0.3-0.5 g |
|
Big bottle accuracy |
± 1g |
|
Weighing scale |
2～500g |
|
Weed out way |
Pneumatic blowing type, swinging arm type, flat push rod type, lifting type |
|
Material and surface treatment |
304 stainless steel and surface finish |
|
Input voltage/power |
Single phase AC220V 50Hz/150W |
