Place of Origin:
CHINA
Brand Name:
YUYANG
Certification:
CE
Model Number:
YY-LBDR

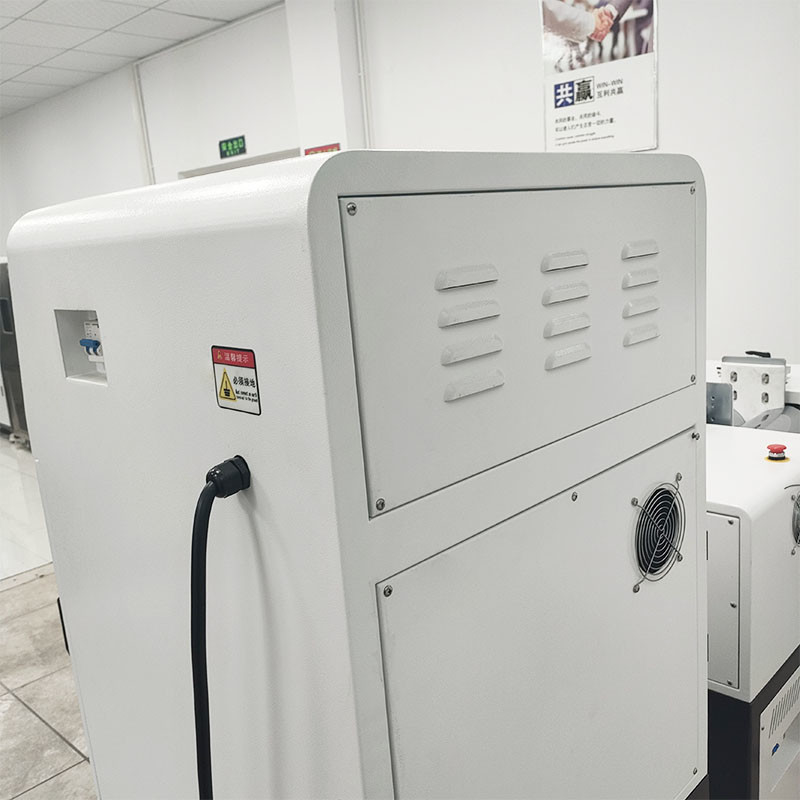

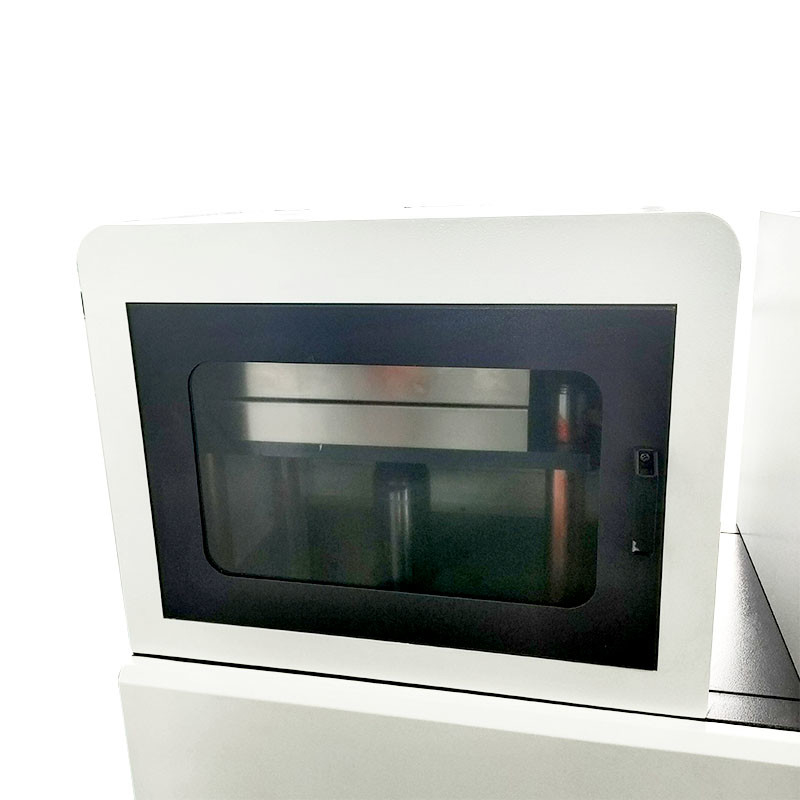

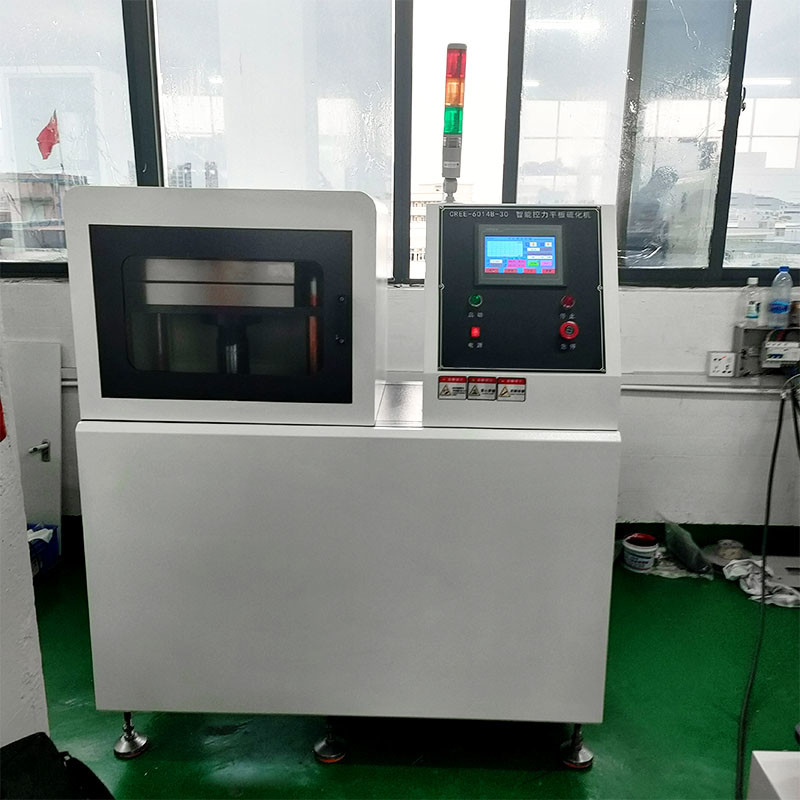

Hydraulic Hot Press For Eva Foam Silicone Plate Vulcanizing Press Machine
Introduction
This series of flat vulcanizing machine is the main equipment that can be used in pressing all kinds of rubber model product and non-model product. In addition, it also can be used in pressing all kinds of thermosetting plastic and foaming rubber and plastic product. With independent actuating unit and electric system, apply button centralized control. Within certain limits, working pressure and heating temperature can be adjusted. This kind of model, can be classified manual operate and semi-automatic operate. The flat vulcanizing machine with the function of a high degree of automation, easy operation,energy conservation and environment protection, and also superior performance.
Specification
| Product name | Rubber Flat Vulcanizing Machine |
| Parameter Capacity | 10,20,30,50,80T |
| Temperature range | Normal temperature~300℃ |
| Temperature precision | 1℃ |
| Temperature controller | PLC touch-screen programmed control mode |
| Heating method | Electric heating |
| Heating up time | Normal temperature to 160℃ about 15min |
| Heat pressure plate size | 250*250/300*300/350*350/400*400/450*450/500*500/1000*1000mm |
| (can be customized) | |
| Cold pressure plate size | 250*250/300*300/350*350/400*400/450*450/500*500/1000*1000mm |
| (can be customized) | |
| Heating plate layers | Single-layer (2-3 layer can be customized) |
| Distance of pressure plate | 300,500mm,800mm (can be customized) |
| Exhaust function | automatically exhaust 3~10 times per minute (Adjustable) |
| Cylinder stroke | Max 250mm |
| Cylinder speed | 11mm/s |
| Pressure gauge | 0~200kg/sq.cm |
| Dimension | 1200x560x1500mm |
| Weight | 500kg |
| Power supply | 380V/60HZ(or 50HZ) |
