Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:
YYM052
Automatic Learning Food Metal Detectors For Sachets And Snacks With 100 Different Kinds Of Products Parameter
Brief introduction:

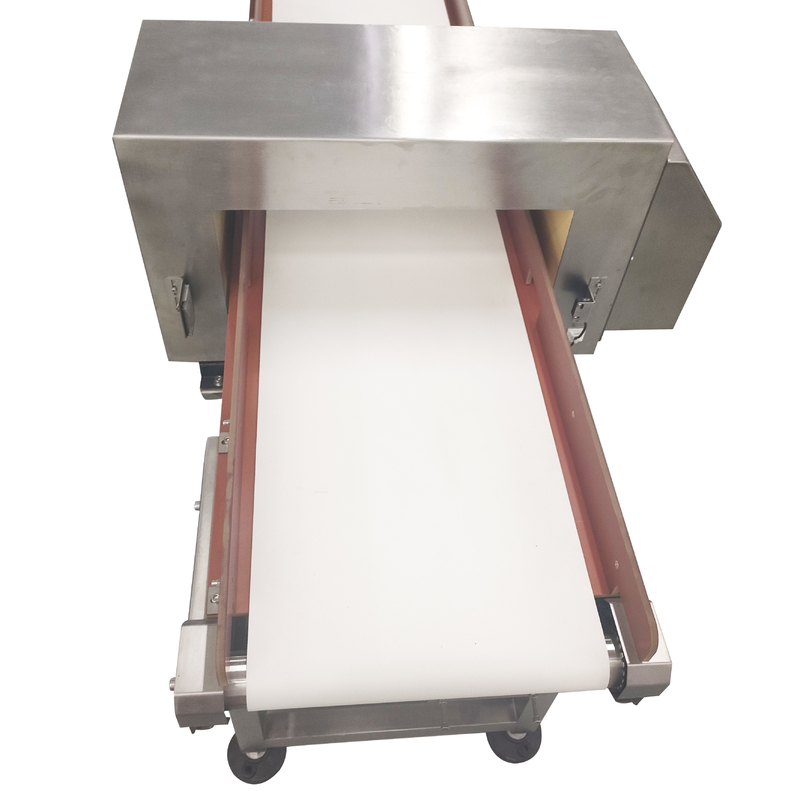

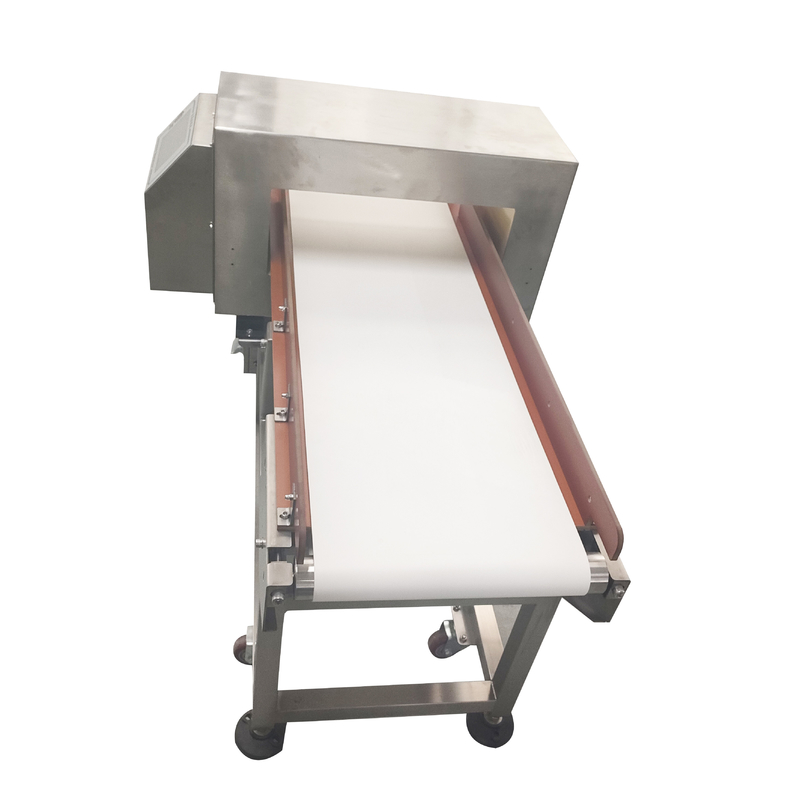

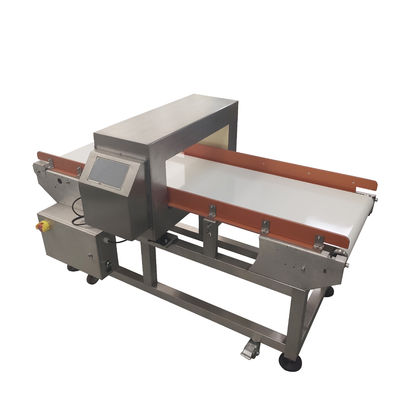

The Conveyer Type Needle Detector is a free-standing conveyorized digital Needle Detector for garments. Accepts non-metals and all approved non-ferrous zips and poppers. It will reject and ferrous or nickle contamination, typically staples and needle fragments equivalent to a 1.0 mm ferrous sphere. The unit has a belt speed of approximately 25 to 30 meters per minute and an aperture size of 24" (700mm) width x 7" (175mm) height. In case of rejection, belt stops with an audible alarm and the signal light is activated. Full digital technology and control.
Product characteristic:
Phase tracking function, which can maintain the stable high-sensitivity detection ability
Product tracking function, which can do adjustment and compensation according to the changes of the product effect automatically
Auto-balanced calibration function, which can ensure the service life of the machine
Applying high functional FPGA, plan with Single Chip Machine
Stainless steel mirror surface, easy design
Above 52 products can be restored in product database
IP66 dust and water proof
The performance of the conveyor belt is complied with the American food sanitation standard (FDA), it can be used for transporting the unpacked food directly.
Can stably work for a long time, with a special design that is suitable for a harsh production environment of strong vibration and high interference, the equipment won't miss alarm even when you tap the probe.
Parameter:
| Detection method | Magnetic induction.digital process double sensor |
| Detection ability | ≥FeΦ0.8 ≥FeΦ0.8 ≥FeΦ1.0 ≥FeΦ1.2 ≥FeΦ1.5 |
| Detection height | 100mm 120mm 150mm 200mm 250mm |
| Detection width | Net width 600mm-non-standard sizes(custom) |
| Detection adjustment | Touch screen adjust the level 1-12 |
| Alarm Method | Sound/light alarm and return, then restarts again |
| Power supply | Ac 220V 50-60Hz |
| Rated output | 140W |
| Machine size | L1820mm×W1050mm×H900mm |
| Weight | 280KG |
FAQ:
1. Are you a manufacturer or trader?
We are a manufacturer, we have our own factory in Dong Guan, we have independent department for purchasing, producing, processing, testing, packing, storing, and transportation, believe our team is the best team in China.
2. Do you sell accessories for products?
Yes. We have matched the parts for our testing equipment. If our machines are damaged by fire, water flood, earthquakes, unsteady power, and other natural disasters, we are willing to supply match parts at lowest price for you.
3. How about the packing for product? Is it easily damaged during transportation?
For light structure products like Gold detector. Hand held metal detector and so on we take of strong carton box.
For heavy structure products like conveyor belt needle detector. Food metal detector X-ray machine. Our packing is Standard Export ploy Wooden Case.
Every prepackage has a plastic bags cover.
4. What’s your main product?
We are professional in needle detectors. Metal detector and other related electronic products and machines.
5. Where is your main sales market?
Our Gold meal detectors customers are all over the world.
Our hand metal detectors and walk-through metal detectors are mainly in Southeast Asia, South America, Middle east, East Europe and Africa.
Our needle and food metal detector mainly customers are from Australia, USA, All Europe and Asia.
6. How about your after-sales policy?
Customer first is our always principle. All of our products normal warranty is 12 months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service.
7. Do you accept customer Logo and customized?
We accept kinds of customized and logo for all of our products for customers.
