Place of Origin:
China
Brand Name:
YUYANG
Certification:
GB/T1040 GB/T1042 ASTM D638 ASTM D790 ISO 178 ISO 527 DIN 53-504 DIN 53-452 ETC, ASTM D903\GB/T16491\GB/T1040\GB/T8808\GB13022\GB/T
Model Number:
YYL-004

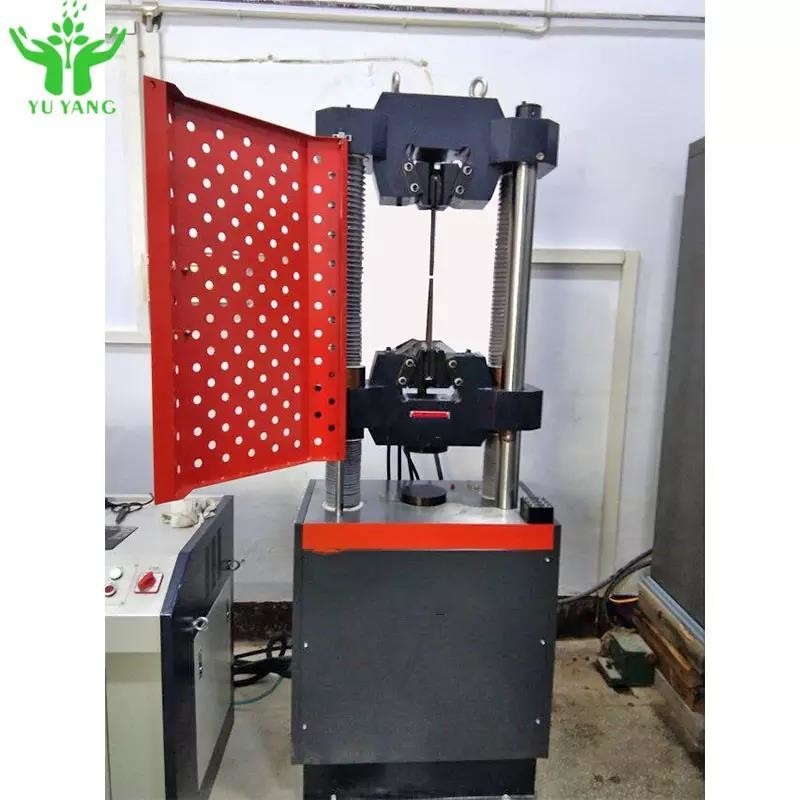

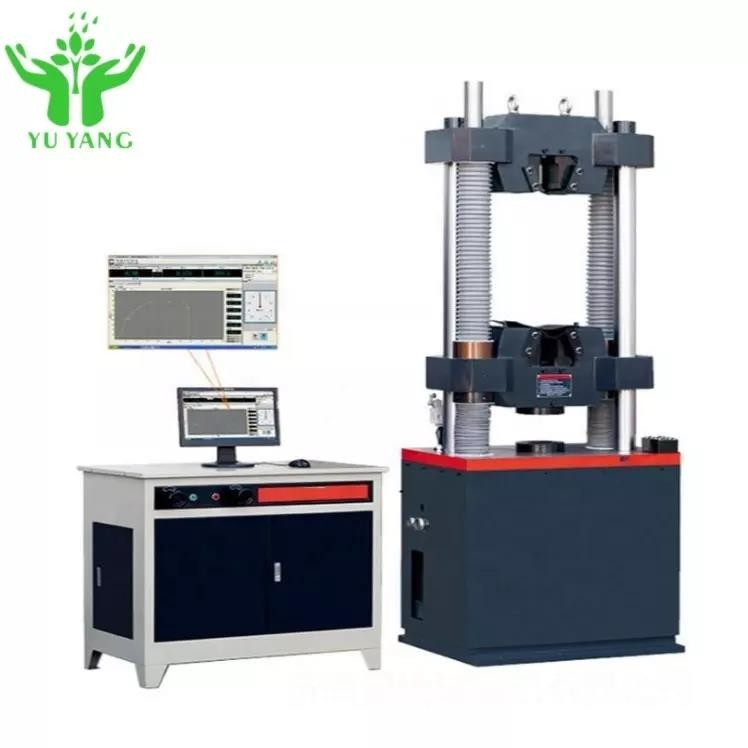

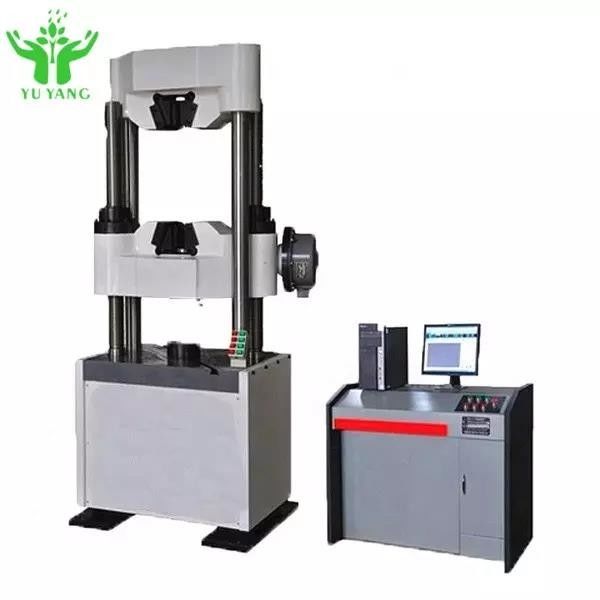

0.1-500mm/Min Servo Motor Universal steel wire Tensile Testing Machine 0.5 class
Product Description:
This machine is applied in analysis and research of statics property testing of tensile, compression, bending, cutting, holding and other items of metal and nonmetal material (including composite material). It can achieve ReH, ReL, Rp0.2, Fm, Rt0.5 , Rt0.6, Rt0.65, Rt0.7,Rm, E and other testing parameters automatically and can also do test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards. The tensile testing machine also known as a materials testing machine , is applicable to testing tensile stress , compressive stress , shearing force , peeling force , and elongation of materials , components , and finished product for metal , plastic , rubber , textile , synthetic chemicals , wire and cable , leather , ect.
Features:
| Name | 0.1-500mm/Min Servo Motor Universal steel wire Tensile Testing Machine 0.5 class |
| Model | YYL-01L, 02L, 05L, 1L, 2L, 5L, 10, 20, 30, 50, YYL-100, YYL-200, 300 |
| Max. test force | 300 kN |
| accuracy class | 0.5class |
| measurement range of force value | 2%-100% FS |
| test force accuracy | ±1% |
| displacement measurement | micrometer gauge |
| speed of test | 0.01-500 mm/min |
| effective testing width | 400 mm, 550mm |
| clamp configuration |
1, Equipped fixture can be based on users' needs or customer made. 2, Alternative transducer is available to extend the measuring range. 3, The tensile space can be heighten on users' requirement.
|
| dimension | 650*330*1730mm, 760*460*1900mm, 1050*750*2100mm, 1050*900*2400mm |
Standard:
GB/T1040 GB/T1042 ASTM D638 ASTM D790 ISO 178 ISO 527 DIN 53-504 DIN 53-452 ETC, ASTM D903GB/T16491GB/T1040GB/T8808GB13022GB/T
