Place of Origin:
China
Brand Name:
YUYANG
Certification:
ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A
Model Number:
YYD10

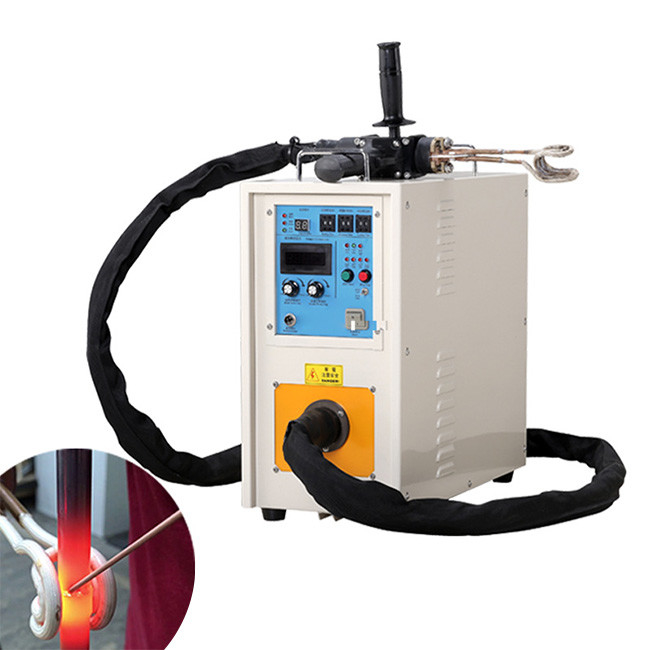

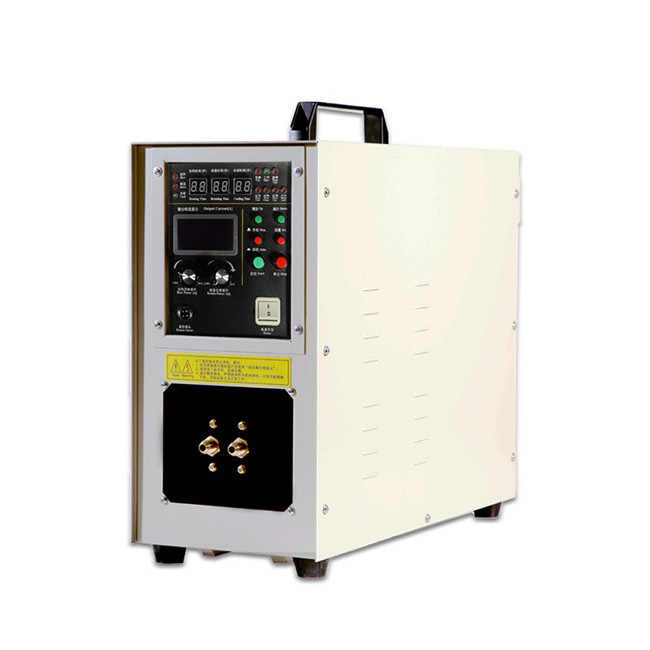

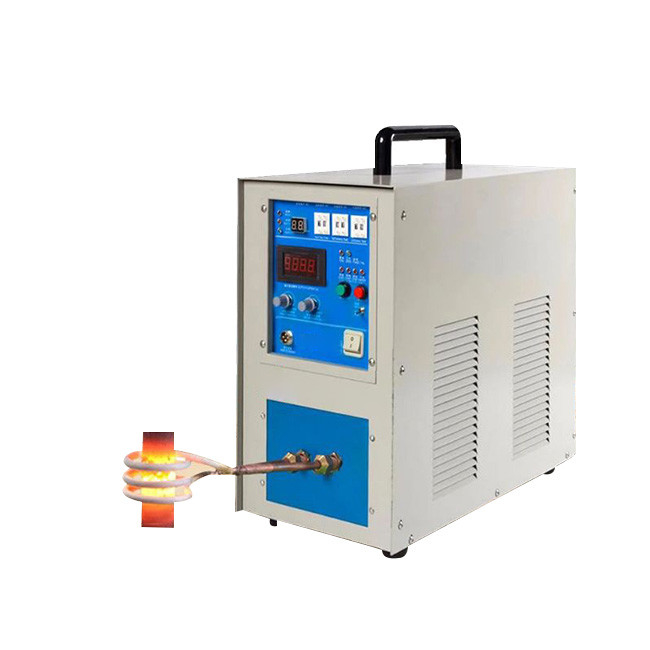

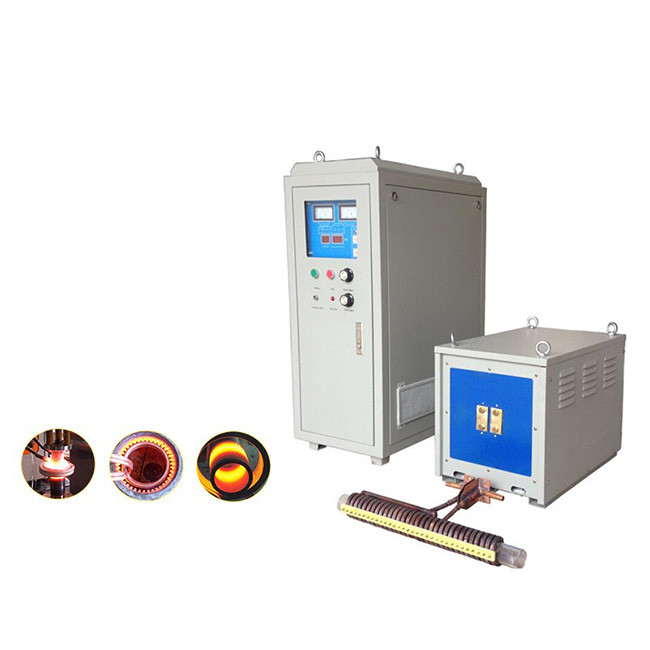

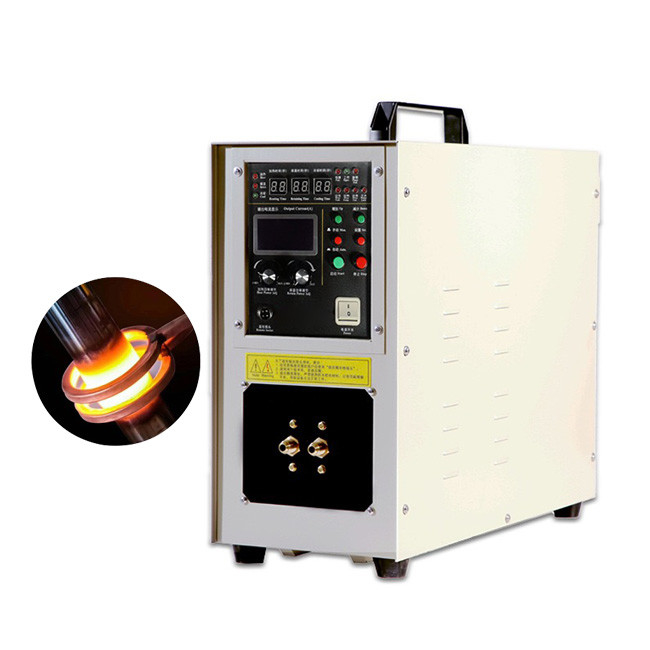

Handheld Heater Machine Quenching Welding Equipment Forging Soldering High Frequency Induction Heating Machine
Description
Induction heating equipment is a kind of three-phase alternating current (ac) power frequency, after rectification into direct current, then laid adjustable current, direct current supply by the capacitor and inductor in the flow of alternating current, generate high density magnetic field lines in the induction coil, induction coil, and cutting in cheng fang of metal materials, produce a lot of eddy current in the metal materials. In Shanghai's feeling electric technology put a metal cylinder has alternating medium frequency current in induction coil, metal cylinder has no direct contact with induction coil, electric coil temperature is very low, but the surfaces are heated to redness, and even melt, and the redness and melting speed as long as adjust the strength of the size and current frequency can be achieved. If the cylinder is placed in the center of the coil, the temperature around the cylinder is the same, and the heating and melting of the cylinder does not produce harmful gases or strong light to pollute the environment.
Application
1. Heat treatment of metals: hardening, tempering, and annealing, normalizing
2. Heating prior to deformation: forging, swaging, upsetting, bending, and piercing.
3. Braze welding and Soldering: brazing of steel, brass, and copper to each other in combination and metal tube, alloy cutter , carbide saw blade, pipe joints, etc.
4. Shrink fitting in any manufacturing process, for example, shrink fitting of motor rotors to shafts, shrink fitting of shell casings for compressors.
5. Coating: dissimilar metals, prior to insulation, and curing, such as paint.
6. Melting: all kinds of metals, like ferrous metals, non-ferrous metal and noble metals
7. Other applications include crystal growing, cap sealing, sintering, carbon vapor deposition, levitation, exit axial deposition, and plasma generation.
Parameters
| Input Voltage | 220 VAC single-phase, 50/60Hz |
| Work Power | 180V-250V |
| Input Current | 32A |
| Max.Oscillating Power | 15kva |
| The Flow Rate Of Cooling Water | 0.06-0.12Mpa 7.5L/Min |
| Auto Heating/Retaining/Cooling Timers | 1-99 seconds |
| Generator Controller Size (L x W x H) | 500x200x450mm |
| Generator Transformer Size (L x W x H) | 450x200x350mm |
