Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:
YY3020AH

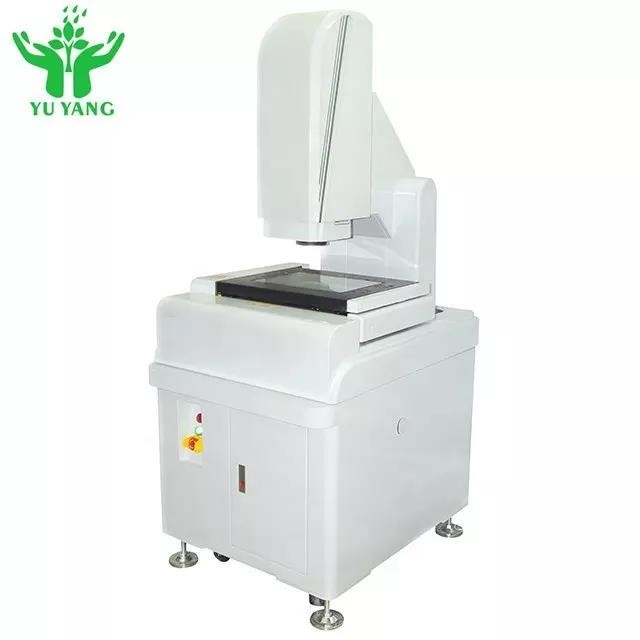

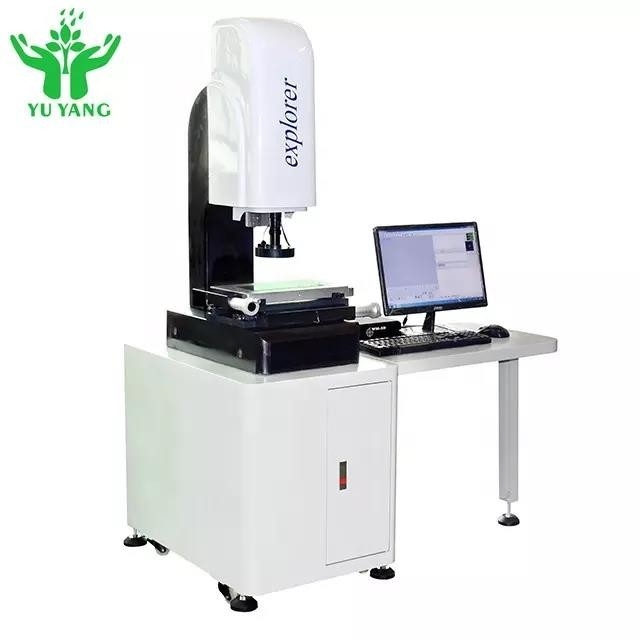

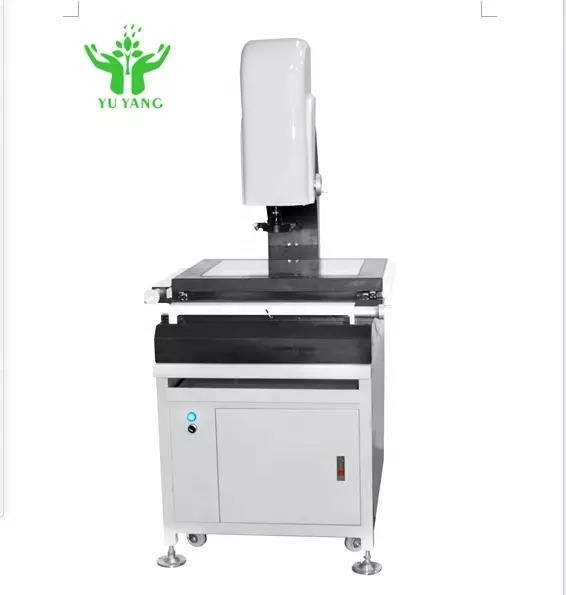

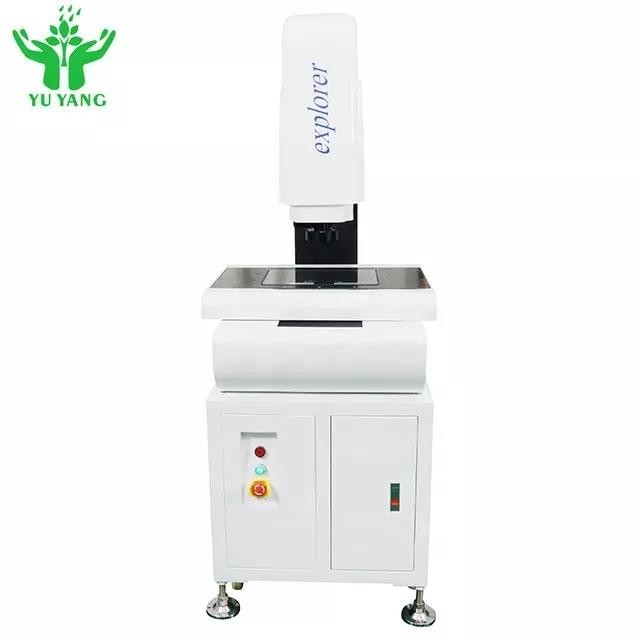

The high-automatic automatic measuring instrument is a cost-effective measuring device independentlydeveloped by the company, which can realize high-efficiency and accurate measurement of large-volumeworkpieces; it is suitable for the detection and quality control of precision parts, In the machineryelectronics, hardware, plastics and other industries have been widely used.
Technical Parameters:
| Model | YY-3020AH |
| External size | 450*350mm |
| Weight | 300kg |
| Glass table capacity | 30kg |
| Focusing range | Z-axis 200mm |
| Drive form | Three axis electric |
| Size of glass table | 330*230mm |
| Rocker | XYZ 3axis rocker ,Three axis electric |
Product Feature:
1.Rich geometric measurement functions (point, line, circle, arc, ellipse, rectangle, groove, 0-ring ,Distance, angle, Open Cloud line, closed cloud line, curve etc.
2.Elemental tectonics has powerful functions. Elemental tectonics provides 10 tectonic methods ([translation], [rotation], [extraction], [combination], [parallel], [vertical], [mirror], [symmetry], [intersection], [tangent], etc.
3.Functional expression: Calculator function, can calculate various complex formulas, and automatically output results to the report, tolerance level color settings.
4.Measuring various complex graphics including curve, area, circumference, contour, position, parallelism, symmetry, perpendicularity, inclination.Concentricity, coaxiality, etc.
5.Editing and viewing edge-finding status: The software can modify and edit the edge-finding range of any measuring element, illuminant brightness, magnification, etc.
6.Re-measurement function: Off-line editing measurement, retaining the product measurement pictures and other powerful error correction functions, no need to re-take product measurement.
