Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:
YY312

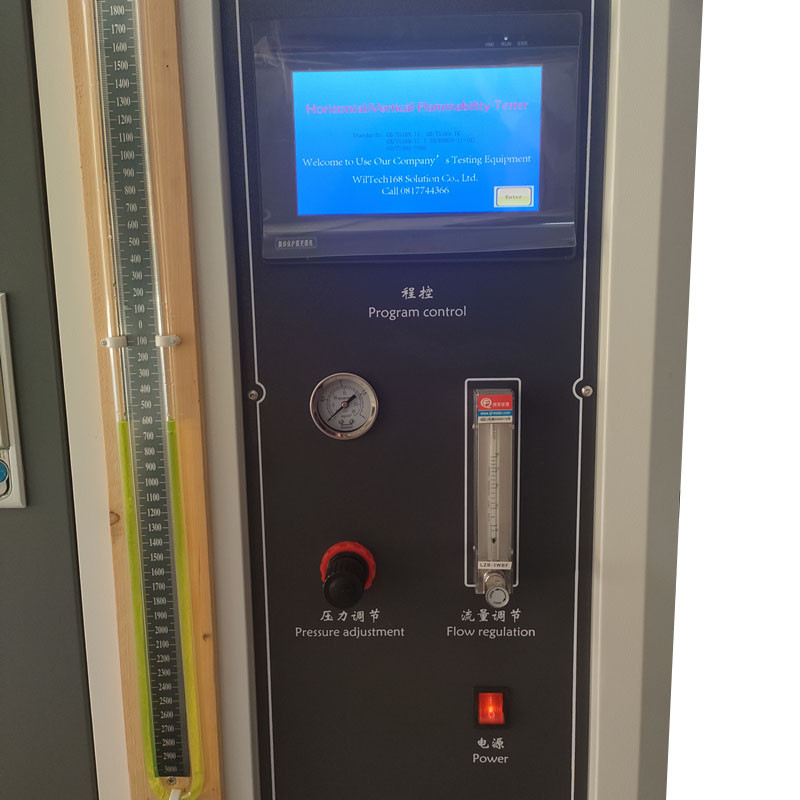

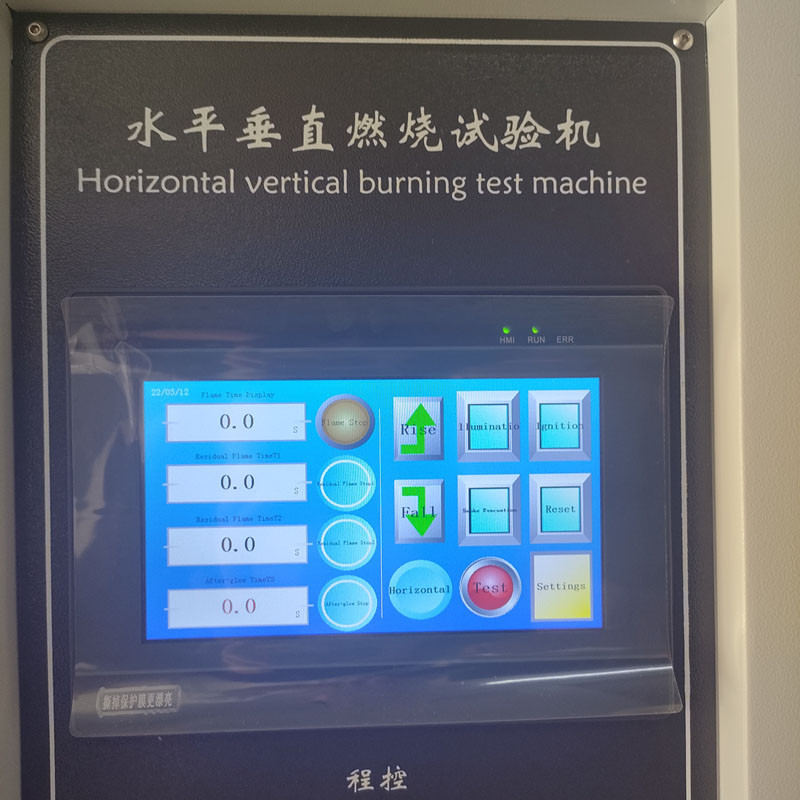

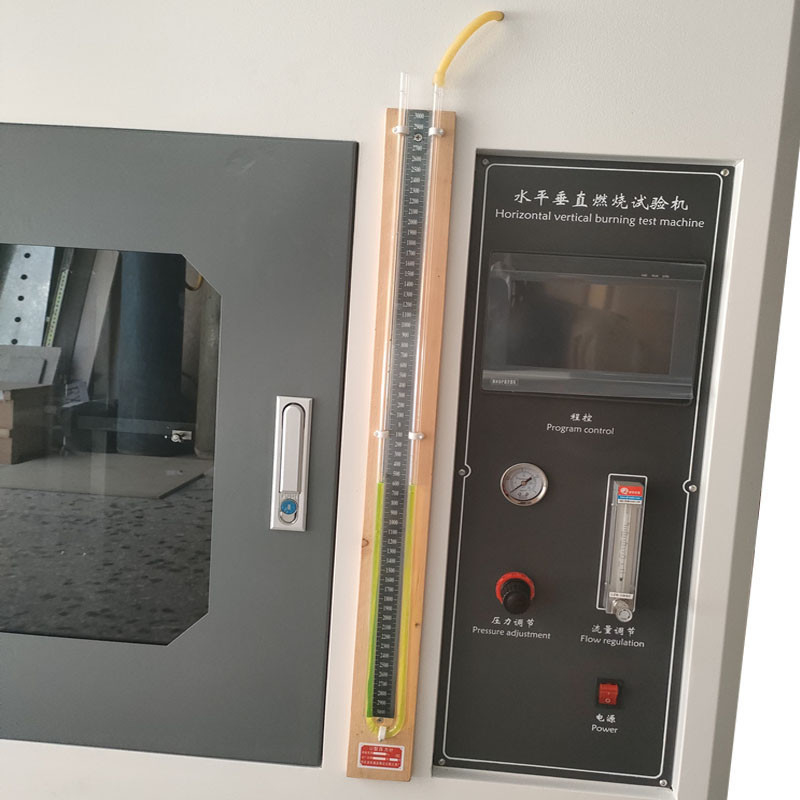

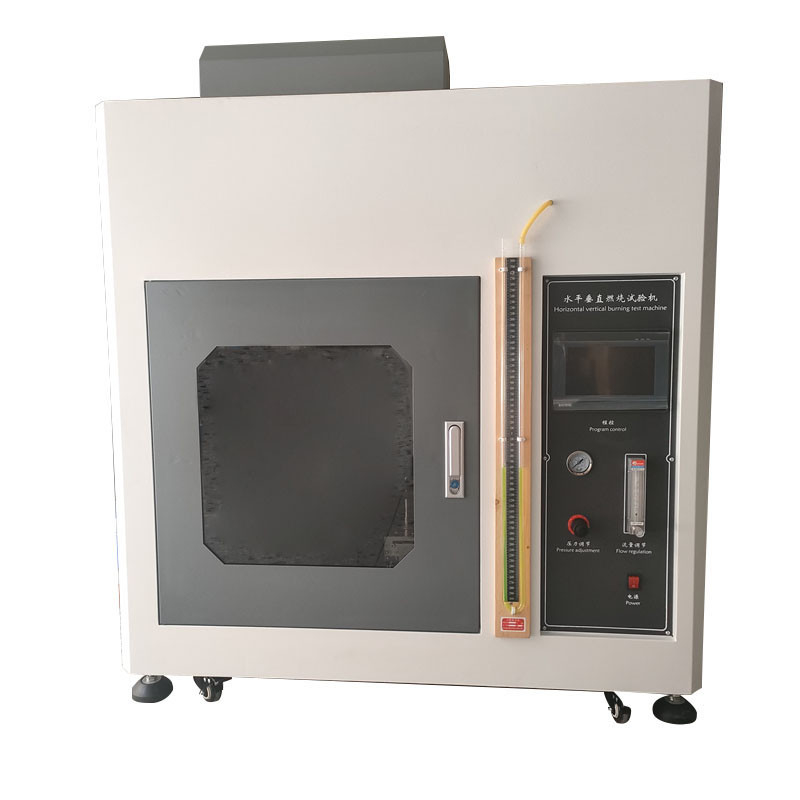

YY312 UL94 Horizontal and Vertical Flammability Tester
Description:
UL-94 Flame Retardant Tester is used for the flammability testing of plastic materials such as V-0 V-1 V-2, HB, 5V, HF-1 HF-2, HBF material or foam, and used in consumer electric devices and appliances for flammability rating assessment. Such as insulating housing of household appliances, switch panel, the printed circuit board and insulating material etc.
Main specification:
Test room: 0.85 m³
Time adjustment of continuous flame: 0 ~ 99minutes99seconds
Time adjustment of afterflame: 0 ~ 99minutes99seconds
Time adjustment of afterglow: 0 ~ 99minutes99seconds
Flame height: is easy to adjust, from 20mm to 175mm according to the standard.
Timer: 0~999.9s+/-0.1 s (adjustable)
Burn angle: 20 °,45 °,90 ° (that is 0 °) adjustable

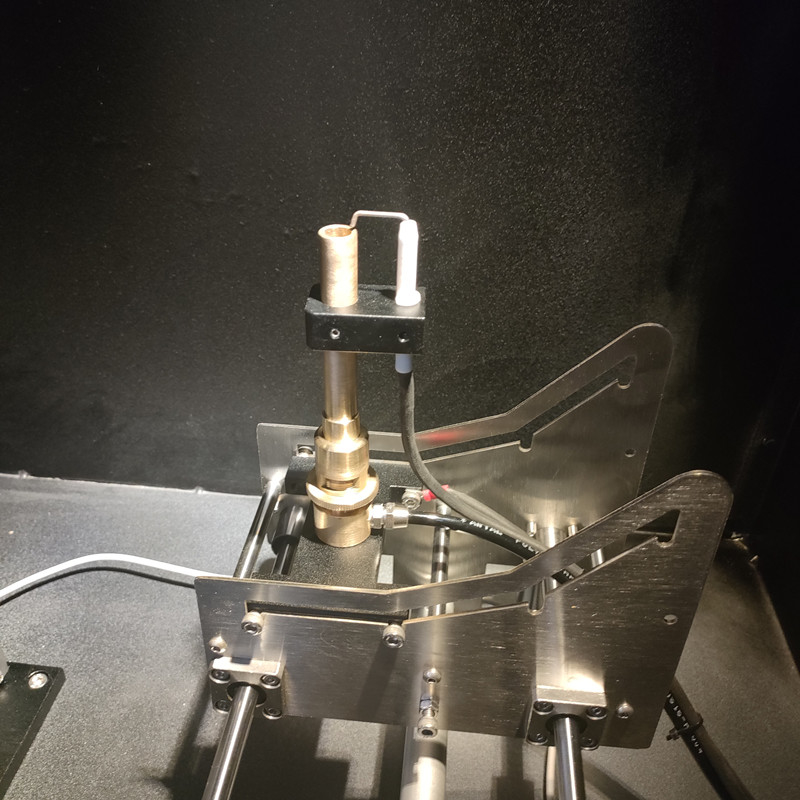

Burner: inner diameter Ø9.5mm±0.3mm, (Bunsen burner) length of 100mm
Gas: 98% methane
Temperature testing range: 0~1000 degree
Power: AC 220V,50Hz
Size:1100mm×700mm×1300mm
Accessories: Micro gas tanks, Micro gas cylinders 2pcs, lighting device, air extractor
Gas flow control valve, Gas pressure gauge, Gas pressure regulator, Gas flow meter, Gas u-shaped pressure gauge and specimen clamp,, power line 1pcs
