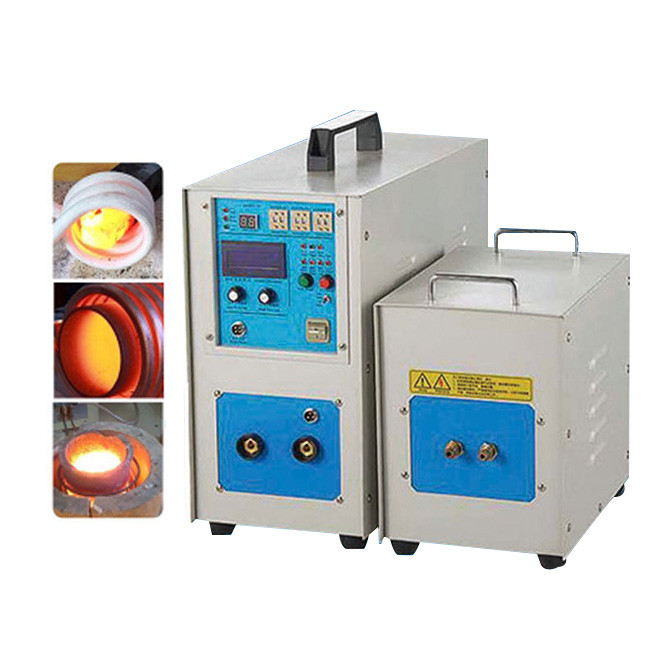

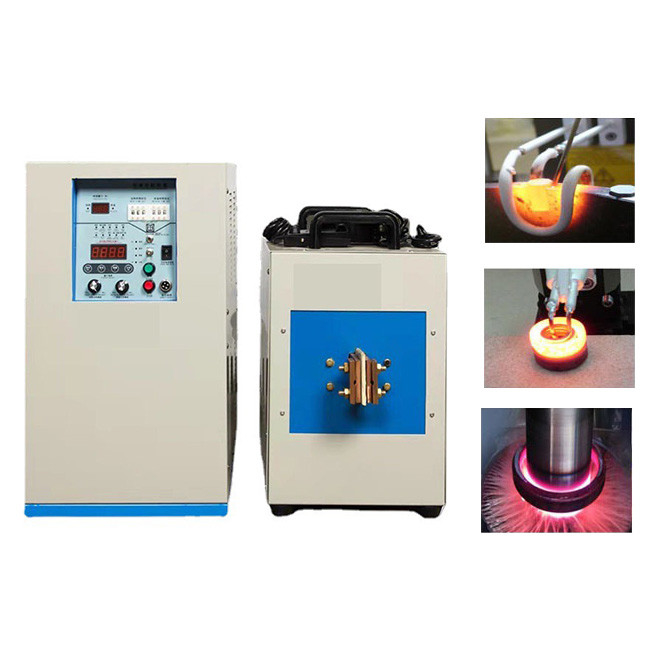

Induction Heating Machine For Copper Tube Instant Heating With High Frequency

Induction Heating Machine For Copper Tube Instant Heating With High Frequency

Introduction

The principle of high frequency induction heating is that apply high frequency alernating current to a conduct that is curled to cyclic (normally copper tube) to produce flux, then put the metal to this area to make the flux to run through it, and eddy current will be generated in the deriction of self-capturing with flux(rotary current), the induced current then generates heat under the influence of the eddy current, so this heating method is called induction heating.the character of the eddy current relies in that the induction heating on the object nearby the coil is outwardly strong but inwardly weak. with this principle. this heating body can be concentratedly heated where needed to achieve instantly effect, thereby the production output and work capacity are both improved.

Product Description

1. Induction Melting Furnace Equipmemt can be used for the melting of steel, stainless steel, brass,gold and so on.

2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux .

3. Wide frequency range from 1KHZ to 20 KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire,  melting efficiency and other factors.

4. Compared with SCR medium frequency furnace, it can be energy at least 20% and up.

5. Small and light, a lot of modes can be selected to melt different amount of metals. Not only it is suitable for the factory, but also suitable for the colleges and researching companies to used.

6. Full load rate 24 hours

7. It’s easy to change melting furnace to different capacity, different materials,different way of pouring out, to suitable for all kinds of requirements.

Specifications

1. For more detail informations, please contact us.

2. We also have the type of 110 V, if you need, we can customized to you.

3. This machine can't be used with a plug, it need a wire to connect the machine to power line directly.

4. We also sell the indutrial water chiller for this JL-15 induction heater, if you need, please send inquiry to us.

5. We can also make customized heating coil, the shape and diameter is determined by the workpiece you will process. If you make customized heating coil, please tell us the detail workpiece information.

Fraction:

1. Brazing, Welding, Soldering
Brazing is a fusion and solidification process which refers to the use of magnetic field induction heating to make the temperature of metal materials junction reach the melting point of welding.
(1). Any industry of add welding material connection.
(2). Do not add welding material connection.

2. Melting(high power)
Mainly used for melting and heat preservation of Cast iron, Alloy steel, Stainless steel, Gold, Silver, Other magnetic materials, as well as Copper, Brass, Bronze, Aluminum, Zinc, and Other non-magnetic materials.

3.Forging Molding
M.F. forging furnace is used for the heating of bars and rods, the material can be steel, stainless steel, copper, brass ,aluminium and so on. The heating can be the whole rod, end of the rod or middle part of the rod.
Application Examples:Fasteners, Hardware tools, Automobile and motorcycle accessories, Rigging, Pipe fittings, Twist drill, Atlas, Table, Mould parts, Standard parts, Handicrafts, Machinery parts, Brass lock, Lock, Rivets, Other hardware and metal accessories.

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2022,sell to Southeast Asia(11.00%),Eastern Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Northern Europe(9.00%),North America(7.00%),South America(7.00%),Western Europe(7.00%),Oceania(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Concrete Floor Grinder,Vending Machine,Induction Heating Machine,Optical Measuring Machine,Metal Detector Machine

4. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Concrete Floor Grinder,Testing Machine,Environmental Test Chamber,Optical Measuring/Metal Detector/Induction Heating Machine,Lawn Mower,PCB Separator,Vending Machine etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese

6.The advantage for us ?

Reasonable price and best services , advanced equipment and strong technology.

7.How to order?

Do not hesitate to contact by online or Email as soon as possible once you are interested in our products. The specific quotation will be offered basing the request dimension and quantity.

8. What about the quality?

All products according to ISO and National highest standard, also we can offer CE, certificate if necessary.

Our Company:

DONGGUAN YUYANG INSTRUMENT CO.,LTD is Located in Wanjiang District (Dongguan City, Guangdong Province,China),a famous historical town with prosperous industry and convenient transportation.

Decades of research and development strengthen the leading edge of YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment. YUYANG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabrix, etc.
