Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:

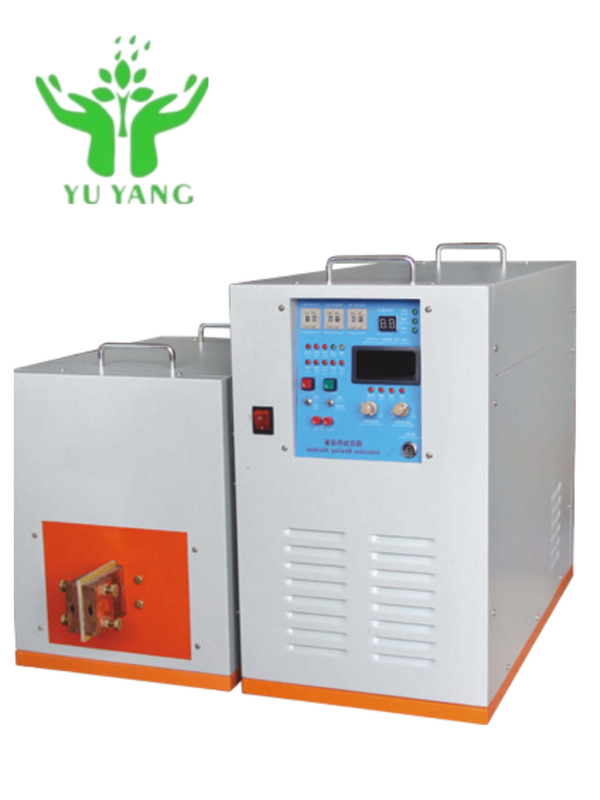

YY - 04W
Hardening transformer technology
Through heating technology
Used for hardening gears, shafts, pipes, bearings, pump accessories, steel plates, rollers, etc
Parameter
| item | value |
| place of Origin | China |
| Brand Name | YUYANG |
| Condition | New |
| Machine Type | Induction Heating Machine |
| Machinery TestReport | Provided |
| Marketing Type | New Product 2021 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Warranty | 1 Year |
| Online support, Video technical support | |
| Key Selling Points | Easy to Operate |
| After Warranty Service | Video technical support, Online support |
| Local Service Location | Malaysia, Saudi Arabia, Pakistan, India |
| Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location | None |
| Rated Power output | 40kw |
| Work power | 340V-430V |
| Maximum input current | 60A |
| Volume(mm 3) |
main:640*350*550mm transformer:510*300*450mm |
| Output current | 400-4500A |
| Gross weight | Host 54kg Extension 43kg |
| Power supply | Three phase 380v 50Hz |
| Time sting(atomatic time) | 1-99s |
| Cooling water | 0.2MPa 6L/min |
Operating Principle
Induction heating equipment functions by leveraging the principle of electromagnetic induction. An alternating current is supplied to the induction coil, which then generates an alternating magnetic field. When a metal workpiece is positioned within this magnetic field, the changing magnetic field induces an electromotive force in the workpiece. This electromotive force drives the flow of eddy currents within the workpiece. As the eddy currents encounter the resistance of the metal, heat is generated, and the workpiece is heated up.
Advantages of Induction Heating Equipment
1. Fast heating: the minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control).
2. Wide coverage of heating: it can be used to heat various metal parts (replace removable induction coil as per different
perating switches).
3. Easy installation: it can be used once it is connected with power source, induction coil as well as water supply pipe and
rising pipe; it is small in size and light in weight.
4. Easy operation: you can learn to operate it within several minutes.
5. Fast start-up: it can be started to perform heating operation on condition that water and power supply is available.
6. Low power consumption: As compared with conventional vacuum tube high frequency equipments, it can save the power
by approximately 70%. The smaller the size of the work piece is, the lower power consumption
would be.
7. High effectiveness: it has such features as uniform heating (it is applicable to adjust the spacing of the induction coil to
ensure the appropriate temperature as required by each part of work piece), fast warming and limited
oxic horizon, and can guard against any waste after annealing.
8. Comprehensive protection: it has such functions as overpressure, over-current, overheat and water shortage alarm indications
as well as automatic control and protection.
9. Controllable temperature: it is applicable to control the temperature for heating work pieces as per the preset heating time,
and thereby control the heating temperature at a certain technical point.
10. Comprehensive full load design: it can work continuously for 24 hours.
11. Small size and light weight: it has a weight of only several dozens of kilograms, of which, the limited floor space can effectively
save the workshop space.
12. Elimination of high voltage: it requires no step-up transformer which may produce approximately ten thousand voltage, and
thus can ensure the maximum safety.
