Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:
GY-30AB(30KW)

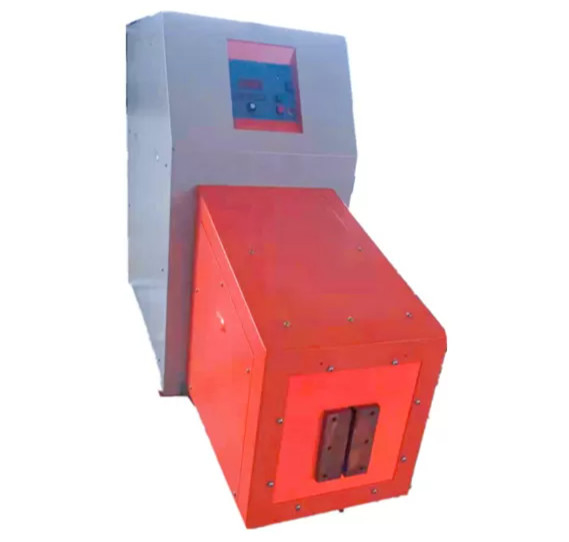

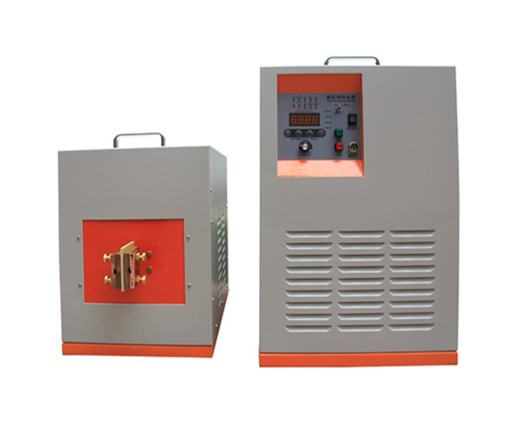

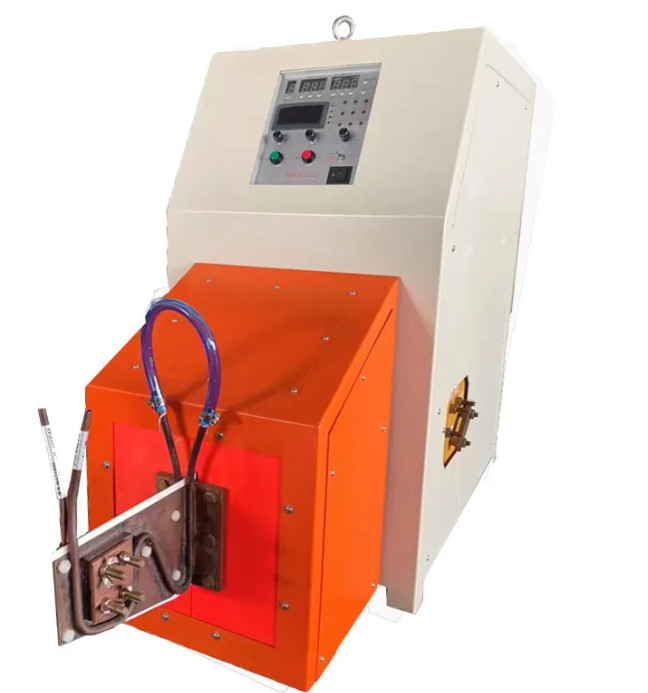

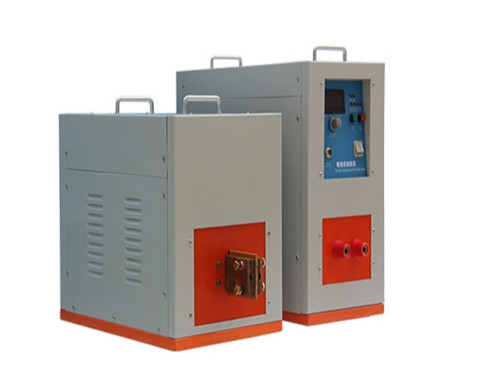

Improved Performance Flammability Testing Equipment for Quenching Parts
Main Applications:
1. Conduct heat treatment on gears and shafts, which effectively boosts their mechanical properties and extends their durability.
2. Perform precision brazing on diamond tools, allowing them to consistently maintain outstanding cutting performance.
3. Carry out efficient brazing of electrical kettle bottoms, thus establishing a dependable and long-lasting connection.
4. Heat tubes for the purpose of coating application, which helps in the even distribution of coatings, thereby enhancing protection and functionality.
5. Apply annealing heating to stainless steel vessels, restoring their structural soundness and improving their ability to be formed into different shapes.
6. Skillfully braze machining tools, increasing their strength and precision, which in turn leads to superior machining outcomes.
7. Melt various metals with high efficiency and accurate temperature regulation, making it suitable for diverse metalworking procedures.
8. Braze copper and brass tubes as well as connectors in air conditioner manufacturing facilities, ensuring the reliable operation of air conditioning systems.
9. Heat rods for forging activities, making the materials more pliable and facilitating the shaping process.
10. Quench parts to attain the required hardness and mechanical characteristics, improving their performance and extending their service life.
Parameter
| item | value |
| place of Origin | China |
| Brand Name | YUYANG |
| Condition | New |
| Machine Type | Induction Heating Machine |
| Machinery TestReport | Provided |
| Marketing Type | New Product 2021 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Warranty | 1 Year |
| Key Selling Points | Easy to Operate |
| After Warranty Service | Video technical support, Online support |
| Local Service Location | Malaysia, Saudi Arabia, Pakistan, India |
| Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location | None |
| Rated Power output | 60kw |
| Work power | 340V-430V |
| Maximum input cur | 10-70A |
| Volume(mm 3) | 660 mmx290mmx410mm 740 mmx340mmx380mm |
| Max input current | 200-1200A |
| Gross weight | Host 54kg Extension 43kg |
| Power supply | Three phase 380v 50Hz |
| Time sting(atomatic time) | 1-99.02s |
| Cooling water | 0.08-0.16MPa 9L/min |
Operating Principle
Frequency conversion electromagnetic induction heating or induction heating for short is a method for heating metal
materials by converting power frequency power supply into that of specific range based on the principle of electromagnetic
induction. This type of heating technique is also applicable to packing industry (such as sealing of aluminum foil used in medicine and food industry), semiconductor material .
Basic components of induction heating system include induction coil, AC power source and work pieces.
Induction coil can be fabricated into different shapes as per different heated objects. The coil is connected with the power source providing alternating current for coil.
Advantages of Induction Heating Equipment
1. Rapid Heating: The minimum heating time is under 1 second, and the heating rate is adjustable and controllable.
2. Broad Heating Application: Suitable for heating various metal parts. You can replace the removable induction coil according to different operation requirements.
3. Simple Installation: Just connect it to the power source, induction coil, water supply pipe, and return pipe, and it's ready to use. It is compact in size and lightweight.
4. User-friendly Operation: You can master its operation within a few minutes.
5. Quick Start-up: It can start heating immediately as long as water and power are available.
6. Low Power Consumption: Compared with traditional vacuum tube high-frequency equipment, it can save about 70% of the power. Smaller workpieces consume even less power.
7. High Efficiency: It features uniform heating (you can adjust the spacing of the induction coil to ensure the proper temperature for each part of the workpiece), rapid warming, and a limited oxidation layer, preventing any post-annealing waste.
8. Comprehensive Protection: Equipped with functions like overpressure, overcurrent, overheat, and water shortage alarm indications, along with automatic control and protection.
9. Precise Temperature Control: You can control the heating temperature of workpieces according to the preset heating time, thus maintaining the temperature at a specific technical level.
10. Full Load Design: Capable of continuous 24-hour operation.
