Introduction

The principle of high-frequency induction heating is as follows: When a high-frequency alternating current is applied to a coiled

conductor (usually a copper tube), it generates a magnetic flux. Subsequently, when a metal object is placed within this magnetic

flux area, the flux passes through the metal. An eddy current, which is a circular current that flows in a self-contained direction

relative to the magnetic flux, is induced within the metal. This induced current then generates heat due to the presence of the

eddy current, and that's why this heating method is known as induction heating. Notably, this allows metals and other objects to

be heated without any physical contact. At this point, an important characteristic of the eddy current is that in the area of the

object close to the coil, the induction heating effect is stronger on the outer side and weaker on the inner side. Leveraging this

principle, the heating can be concentrated precisely where it is required on the heated object, achieving an immediate heating

effect. As a result, both the production output and work efficiency are enhanced.

Product Description

1. Induction Melting Furnace Equipment is versatile and can be employed for melting various metals such as steel, stainless steel, brass, copper, gold, and more.

2. Thanks to the stirring effect generated by the magnetic force, the molten pool can be effectively stirred during the melting process.

This facilitates the floating of the flux and oxides, enabling the production of high-quality casting components.

3. It has a broad frequency range spanning from 1KHZ to 20 KHZ. The working frequency can be customized by adjusting the coil

and compensating capacitor, taking into account factors like the type of melting material, the quantity to be melted,

the desired stirring effect, the acceptable level of working noise, and the melting efficiency.

4. When compared to SCR medium frequency furnaces, this induction melting furnace can achieve energy savings of at least 20% or even more.

5. Compact and lightweight, it offers a wide variety of models to choose from, allowing for the melting of different quantities of metals.

It is not only suitable for industrial factories but also an ideal choice for colleges and research institutions.

6. It has the capability to operate continuously for 24 hours, ensuring uninterrupted melting.

7. Changing the melting furnace to accommodate different capacities, materials, and pouring methods is a straightforward process, making it adaptable to meet a diverse range of requirements.

Specifications

1. For more detail informations, please contact us.

2. We also have the type of 110 V, if you need, we can customized to you.

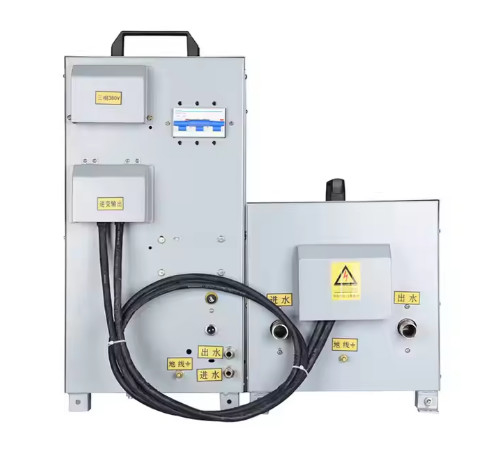

3. This machine can't be used with a plug, it need a wire to connect the machine to power line directly (the cross-sectional area of power line must be larger than 6 square milimeters.)

4. We also sell the indutrial water chiller for this JL-15 induction heater, if you need, please send inquiry to us.

5. We can also make customized heating coil, the shape and diameter is determined by the workpiece you will process. If you make customized heating coil, please tell us the detail workpiece information.

Fraction:

1. Brazing, Welding, Soldering
Brazing is a fusion and solidification process which refers to the use of magnetic field induction heating to make the temperature of metal materials junction reach the melting point of welding, or the temperature of metal materials to reach between nonmetallic material.
(1). Any industry of add welding material connection.
(2). Do not add welding material connection.

2. Melting(high power)
Mainly used for melting and heat preservation of Cast iron, Alloy steel, Stainless steel, Gold, Silver, Other magnetic materials, as well as Copper, Brass, Bronze, Aluminum, Zinc, and Other non-magnetic materials.

3.Forging Molding
M.F. forging furnace is used for the heating of bars and rods, the material can be steel, stainless steel, copper, brass ,aluminium and so on. The heating can be the whole rod, end of the rod or middle part of the rod.
Application Examples:Fasteners, Hardware tools, Automobile and motorcycle accessories, Rigging, Pipe fittings, Twist drill, Atlas, Table, Mould parts, Standard parts, Handicrafts, Machinery parts, Brass lock, Lock, Rivets, Other hardware and metal accessories.
