Place of Origin:
China
Brand Name:
YUYANG
Certification:
ISO, CE
Model Number:
YYJH17

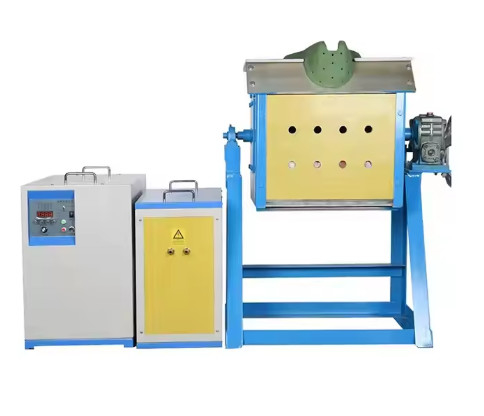

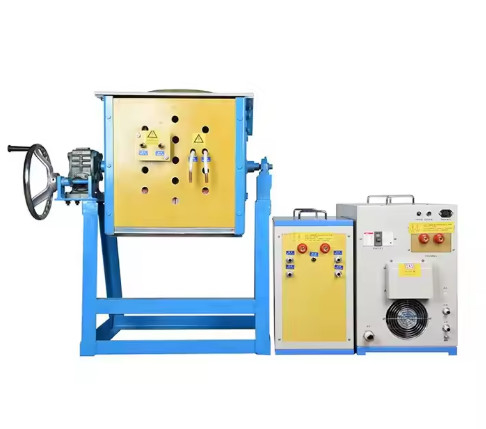

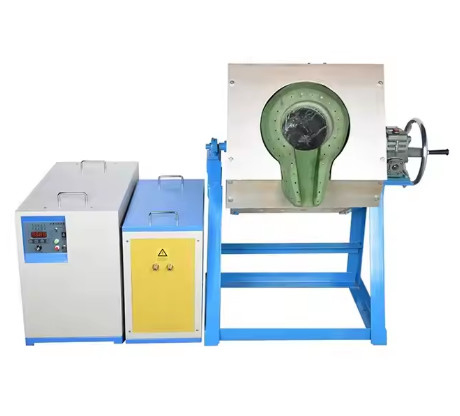

New Hot Selling Products Small Smelting Furnace Gold Smelting Furnace
Main models and specifications:
| Product name | induction melting furnace | ||
| Models | MF-45 | Input voltage | 380V±10% 3-phase, 50/60Hz |
| Maximum input power | 45KW | Power supply cooling water desire | ≥ 0.2 Mpa ≥4L/min |
| Output frequency | 1-20KHz | Whole system cooling water desire | ≥ 0.2 Mpa ≥10L/min |
| Max input current | 68A | Duty cycle | 100% |
| Auto heating time | 1-99S | Generator N.W. | 47 kg |
| Auto retaining time | 1-99S | Generator size (L x W x H) | 650 x 350 x 550mm |
| Auto cooling time | 1-99S | Packing weight | 77KG |
Induction heating power supply main characteristics:
1. With wide frequency range from 1KHZ to 20KHZ, induction heaters can adjust to the best frequency to reach the most efficient overall heating results.
2. With IGBT power component and current inverting control technology, apply parallel oscillating circuit on all MF induction heating generators.
3. due to the parallel oscillating structure, it is convenient to change coil and capacitor to matching the induction heating machine to get best heating efficiency and full power output.
4. With high technologies of inverting control, soft and accurate switching control is realized to assure the high reliability and less maintenance.
5. Vs the SCR controlled induction heating equipment, only 1/10 working space needed, reduce occupation space.
6. 100% duty cycle , 24hours continuous working ability at maximum power.
7. High efficiency and energy saving:,a high power factor and power efficiency within the scope of full power.
8. With wide frequency range from 1-20KHZ automatic tracking ability, no need adjustment at scene.
9. Constant output voltage or power control modes are alternative;
10. Full display of output power, output frequency, output voltage and current.
11. simple operation: operate can be learned in a few minutes.
12. simple installation: connect the machine to 3phase 380VAC and cooling water only.
13. timer can be chosen to preset and adjusted the heating time, heating power, retaining time, retaining power respectively to control the heating curve and heating temperature.
Fraction:

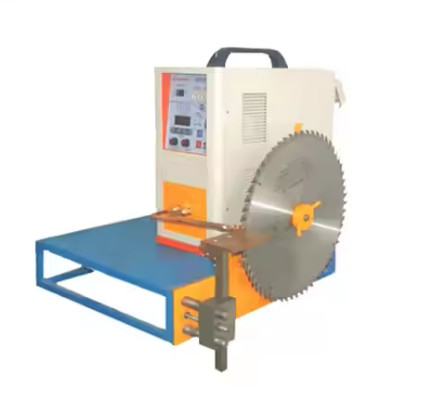

1. Brazing, Welding, Soldering
Brazing is a fusion and solidification process which refers to the use of magnetic field induction heating to make the temperature of metal materials junction reach the melting point of welding, or the temperature of metal materials to reach between nonmetallic material.
(1). Any industry of add welding material connection.
(2). Do not add welding material connection.
2. Melting(high power)
Mainly used for melting and heat preservation of Cast iron, Alloy steel, Stainless steel, Gold, Silver, Other magnetic materials, as well as Copper, Brass, Bronze, Aluminum, Zinc, and Other non-magnetic materials.
3.Forging Molding
M.F. forging furnace is used for the heating of bars and rods, the material can be steel, stainless steel, copper, brass ,aluminium and so on. The heating can be the whole rod, end of the rod or middle part of the rod.
Application Examples:Fasteners, Hardware tools, Automobile and motorcycle accessories, Rigging, Pipe fittings, Twist drill, Atlas, Table, Mould parts, Standard parts, Handicrafts, Machinery parts, Brass lock, Lock, Rivets, Other hardware and metal accessories.
Our Company:
DONGGUAN YUYANG INSTRUMENT CO.,LTD is Located in Wanjiang District (Dongguan City, Guangdong Province,China),a famous historical town with prosperous industry and convenient transportation.
Decades of research and development strengthen the leading edge of YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment. YUYANG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabrix, etc.
FAQ:
Q:who are we?
A:We are based in Guangdong, China, start from 2022,sell to Southeast Asia(11.00%),Eastern Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Northern Europe(9.00%),North America(7.00%),South America(7.00%),Western Europe(7.00%),Oceania(5.00%). There are total about 11-50 people in our office.
Q:How to install your machine?
A:We have paper installation instructions and video, we will teach till you learn it.
Q:Do you have any equipment in stock?
A:Yes, we have some of the best-selling models in stock, and can shipped immediately after payment
Q: Can you provide free samples of the machines?
A: Sorry, but we can't give you free samples because of the high price of the machines. Our machines will certainly meet your requirements and satisfy you
Q:How is your quality control?
A:We have a professional team responsible for product testing and packaging before delivery, you can be assured to purchase.
Q:How many days can the machine arrive after I bought it?
A:Usually 5-10 days(excluding holiday),large machines take 20-30 days
Q: If the machine get damaged, what can I do ?
A: We will give you some spare parts free of charge during the one-year shelf life of the machine.For the customers who have bought the machine, if there is any problem with the machine, they can take a photo or record a video to us. We will guide the customers to perform the repair.If we still cannot solve the problem, we can send our engineers to your factory.
Q.How about the warranty?
A: All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
