Place of Origin:
China
Brand Name:
YUYANG
Certification:
ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN534;EN 1062-4,BS 2782;JIS D0205;SAE J2020
Model Number:
YY1023

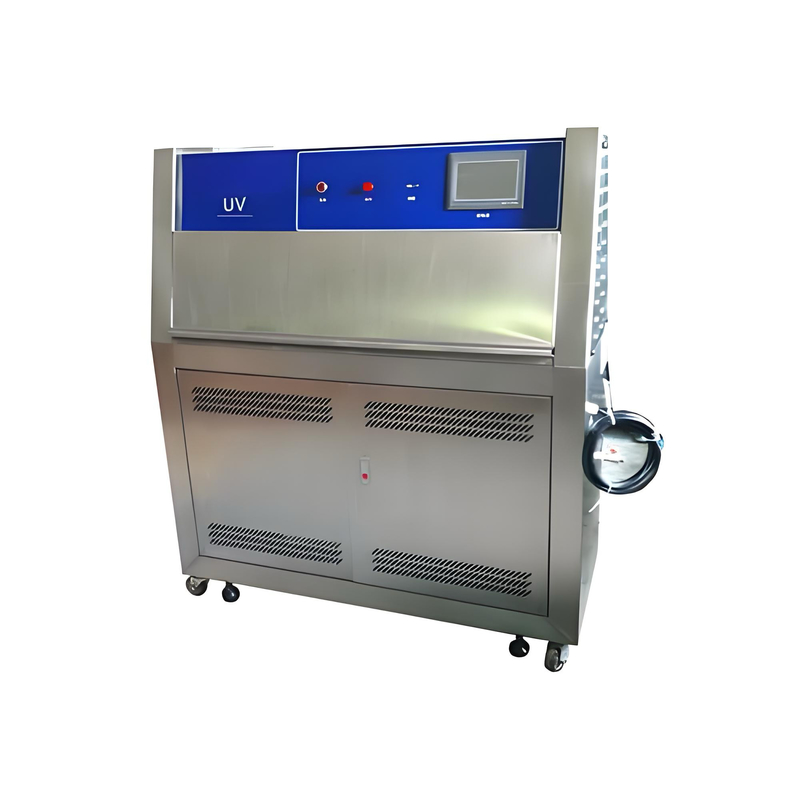

Environmental Test Chamber compliant Xenon Weathering Aging Test chambers
Applications:
A UV accelerated weathering test chamber functions by imitating the harmful impacts that long - term outdoor
exposure has on materials and coatings. It does this by subjecting test samples to diverse conditions of the most corrosive
elements in weathering, namely ultraviolet radiation, humidity, and heat. This type of chamber utilizes fluorescent lamps to
generate a radiation spectrum that is concentrated in the ultraviolet wavelengths. Moisture is introduced through forced
condensation, while the temperature is regulated by heaters.
Main technical parameters:
| Model | YY1023 |
| Inner size | 1170×450×500(L×W×H)MM |
| Outside dimension | 1300×550×1480(L×W×H)MM |
| Whole chamber materials | 304# stainless steel |
| Temperature range | RT+10℃~70℃ |
| Temperature uniformity | ±1℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature control | PID SSR control |
| Humidity range | ≥90%RH |
| Controller | Korean TEMI 880 programmable controller, touch screen, LCD display |
| Control mode | Balance temperature humidity control (BTHC) |
| Communication port | Be able to control the machine via computer using TEMI control software through RS-232 port on the machine |
| Test cycle setting | Illumination, condensation and water spray test cycle is programmable |
| Distance from specimen to lamp | 50±3mm (adjustable) |
| Center distance between the lamps | 70mm |
| Lamp power & length | 40W/Piece, 1200mm/Piece |
| Lamps amount | 8 pieces of UVA-340nm imported Philip lamps |
| Lifetime of lamp | 1600Hours |
| Irradiance | 1.0W/m2 |
| Wavelength of ultraviolet light | UVA is 315-400nm |
| Effective irradiation area | 900×210mm |
| Irradiation black panel temperature | 50℃~70℃ |
| Standard specimen size | 75×290mm/24 pieces |
| Water depth for water channel | 25mm, automatically control |
| Testing time | 0~999H, adjustable |
| Power | AC220V/50Hz /±10% 5KW |
| Protection | Overload short circuit protection, over temperature protection, water lacking protection |
| Corresponding standard | ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN534;EN 1062-4,BS 2782;JIS D0205;SAE J2020 |
Structure of test chamber:
1, using CNC equipment manufacturing, advanced technology, and beautiful appearance;
2, made of stainless steel, 1.2mm thickness;
3, the air path inside the single cycle system, import a axial fan, the air flow increases the light, heat capacity, significantly improves the uniformity of temperature in the test chamber;
4, Lamp: special UV ultraviolet lamp, two rows of eight, 40W / support;
5, lamp life: above1600h;
6, the consumption of water: tap water or distilled water to about 8 liters / day;
7, 8 pieces of UVA lamp installed on both sides;
8, the heating tank for the interior heating, warming fast, uniform temperature distribution;
9, is a two-way clamshell lid, close ease;
10 automatic water tank level to prevent damage to the heating pipe air burning
Protection System:
1, ground protection;
2, the power overload short-circuit breaker;
3, the control circuit overload, short-circuit fuse;
4, water protection;
5, over-temperature protection;
Heat System:
1, using U-shaped titanium alloy high-speed electric heating pipe;
2, temperature control and lighting system is completely independent;
3, the output power by the microcomputer temperature control algorithms to achieve high precision and high efficiency power efficiency;
4, with anti-over-temperature heating system features;
