Name: Tester for Textiles - Robust 4 - Station Setup Complying with ISO 12947 - 2 Standards
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY001
Price: Negotiable USD
Availability: InStock

Home > products > Textile Testing Equipment >

Tester for Textiles - Robust 4 - Station Setup Complying with ISO 12947 - 2 Standards

textile testing instruments

textile testing machine

textile tensile testing machine

Place of Origin:

China

Brand Name:

YUYANG

Model Number:

YY001

Request A Quote

Tester for Textiles - Robust 4 - Station Setup Complying with ISO 12947 - 2 Standards

Product Details

Product Name:

Tester For Textiles - Robust 4 - Station Setup Complying With ISO 12947 - 2 Standards

Usage:

Determine Fabric Abrasion And Pilling Resistance

Application:

Textile

Function:

Abrasion And Pilling

Maximum Dynamic Range:

24±0.5mm, 60.5±0.5mm

Gripper:

200 ± 1g

Working Station:

4/6/8

Dimension:

885mm*600mm*410mm(L*W*H)

Highlight:

textile testing instruments

textile testing machine

textile tensile testing machine

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$1000-$1500

Packaging Details

Wooden Box

Delivery Time

7-30 Days

Payment Terms

T/T, Western Union, MoneyGram

Geotextiles Electronic Disk Sampler Cutting Machine Fabric Sampling

Get Best Price

ISO4920 Fabric Textile Material Spray Rating Tester

Get Best Price

Video

High Sensitivity Mini Pocket Size Hand Held Broken Needle Detector

Get Best Price

Video

Sponge Compression Strength Test Machine Sponge Compression Hardness Tester

Get Best Price

86-769-26622869

Contact Now

Product Description

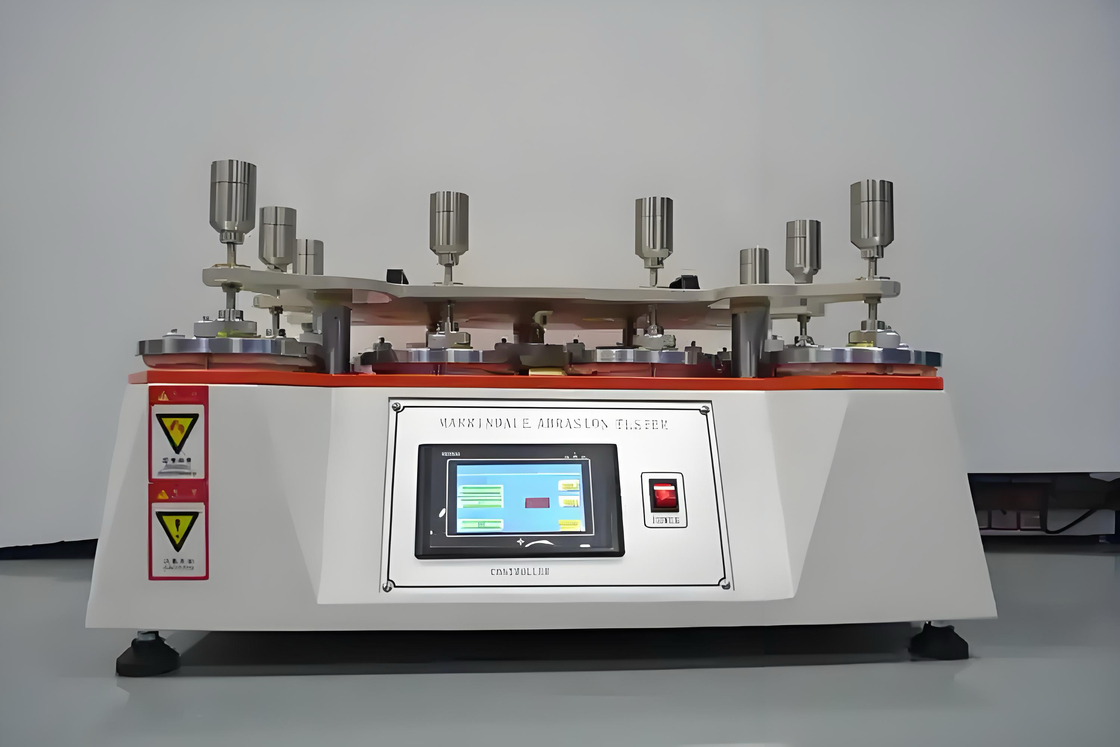

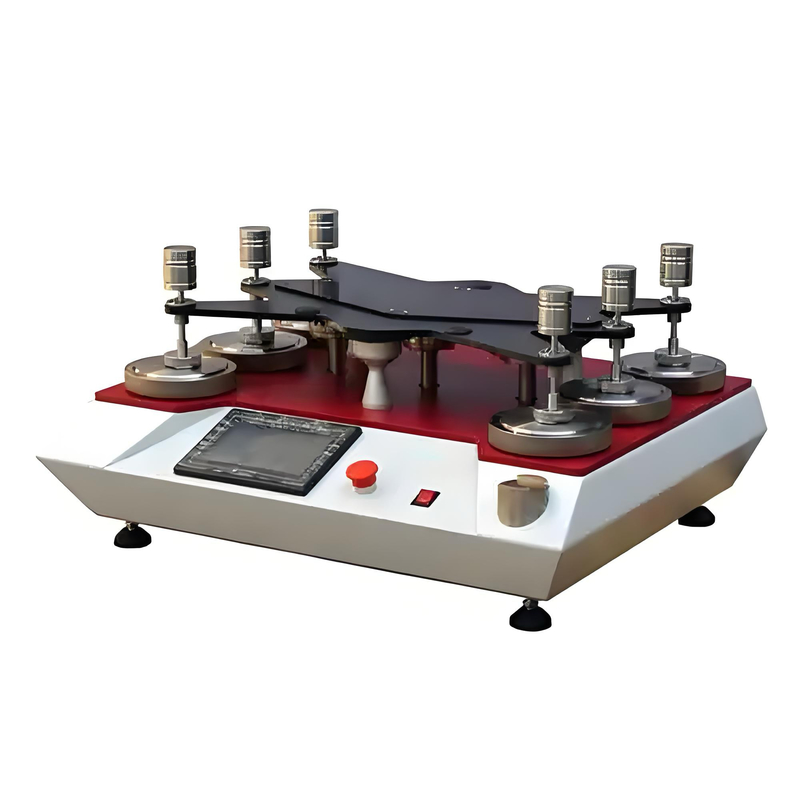

Tester for Textiles - Robust 4 - Station Setup Complying with ISO 12947 - 2 Standards

Description:

To precisely assess the abrasion endurance of woven textiles. Samples are subjected to a controlled rubbing process with specific abradents at regulated low - pressure conditions and in multiple variable directions, and the abrasion degree is evaluated against established benchmarks.

Parameters:

Testing Head: 8 (or 4 and 6 head could be selectable)

Display: LED

Accumulate count: 1~999999

Dimensions (L x W x H) 880×600×410mm

Power supply AC380V, 180W or AC220V, 180W

Effective friction diameter:

(a) wear resistance test: φ28.8mm (b) pilling performance test: φ90mm

Advantages:

Textile Martindale Abrasion Testing Machine learn the advantages of domestic and foreign similar equipment’s design,it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate.

Computer system uses two counting methods, visual appearance, convenient setting, 4 or 6 or 8(optional) station testing at the same time to improve test efficiency.

Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm.

Variety of trajectory matching accessories, can adapt to a variety of test methods standard.

Standards:

BS 3424/5690,IWTO 40-88,BS EN 388/530,IWSTM 112/196,ASTM 4966/4970, IS 12673,JIS L1096, SFS 4328,PR EN ISO 12947-1,PR EN ISO

12945-2,SATRA TM31,ISO 20344

Accessories: ballot sheet 1pcs, bowl shape specimen kit 1pcs,O-rings( 4,6,8), Abrasion weights kit(4,6,8), Pilling weights

kit(4,6,8), power line 1pcs

Optional purchase consumables: wool fabric, felt, sponge, EMPA, scale, SM50 scales

FAQ

1.Which types of textiles are suitable for testing with the Martindale tester?

The Martindale tester is suitable for testing various types of woven fabrics, knitted fabrics, non - woven fabrics, as well as textiles for multiple applications such as upholstery fabrics, garment fabrics, and technical textiles to evaluate their abrasion resistance and pilling resistance.

2.How to prepare samples for testing with the Martindale tester?

The textile needs to be cut into test specimens of the specified size. Ensure that the surface is flat without wrinkles, and avoid causing additional damage to the samples during the cutting and handling process.

3.What is the testing principle of the Martindale tester?

It makes the sample rub against known abradants at low pressures and in continuously changing directions, and then evaluates the performance by comparing the degree of abrasion or pilling of the sample with standard parameters.
