Efficient Martindale Testing Machine For Knitted And Woven Textile Samples

Efficient Martindale Testing Machine For Knitted And Woven Textile Samples

martindale abrasion tester

martindale machine

martindale abrasion machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY001

Contact Us
Request A Quote
Product Details
Product Name:
Efficient Martindale Testing Machine For Knitted And Woven Textile Samples
Usage:
Determine Fabric Abrasion And Pilling Resistance
Maximum Dynamic Range:
24±0.5mm, 60.5±0.5mm
Teasing Load:
1.0 Kg
Iterm:
Single Yarn Strength Testing Instrument
Use:
Non-woven
Light:
CWF Tube
Driver Type:
Motor Load
Vertical Pressure:
9N ± 10%
Highlight:

martindale abrasion tester

,

martindale machine

,

martindale abrasion machine

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
$1000-$1500
Packaging Details
Wooden Box
Delivery Time
7-30 Days
Payment Terms
T/T, Western Union, MoneyGram
Product Description

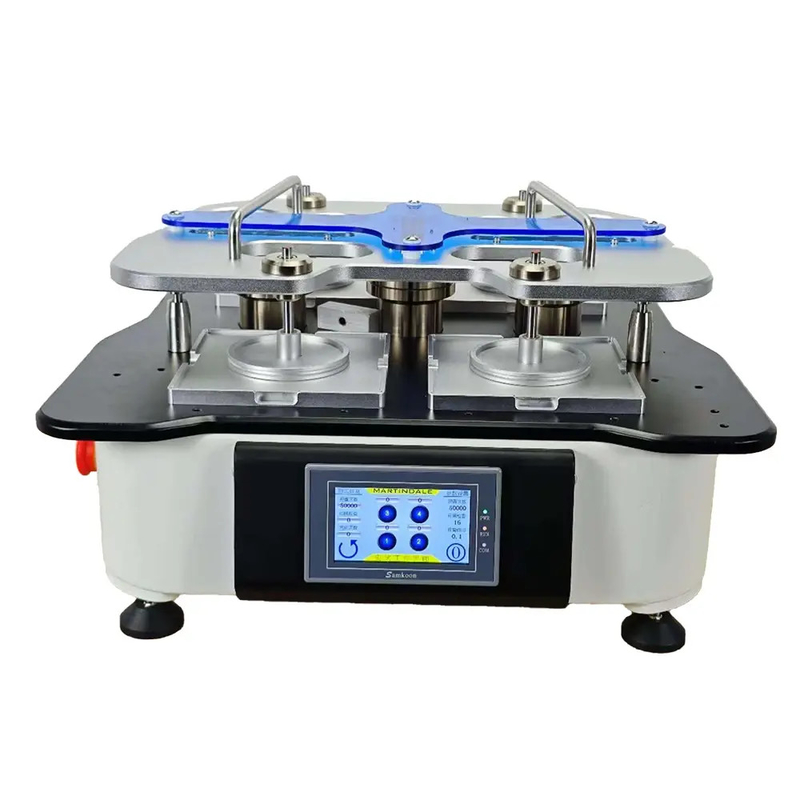

Efficient Martindale Testing Machine for Knitted and Woven Textile Samples

Efficient Martindale Testing Machine For Knitted And Woven Textile Samples 0

Description:

Ideal for analyzing the abrasion resistance of upholstery fabrics. Samples are rubbed against specific abradents at low pressures in various directions, and the abrasion result is judged based on international standards. The load device is compliant with global testing norms.

Parameters:

Testing Head: 8 (or 4 and 6 head could be selectable)
Display: LED
Accumulate count: 1~999999
Dimensions (L x W x H) 880×600×410mm
Power supply AC380V, 180W or AC220V, 180W



Advantages:

1. Textile Martindale Abrasion Testing Machine learn the advantages of domestic and foreign similar equipment’s design,it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate.
2. Computer system uses two counting methods, visual appearance, convenient setting, 4 or 6 or 8(optional) station testing at the same time to improve test efficiency.
3. Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm.



Standards:

BS 3424/5690,IWTO 40-88,BS EN 388/530,IWSTM 112/196,ASTM 4966/4970, IS 12673,JIS L1096, SFS 4328,PR EN ISO 12947-1,PR EN ISO
12945-2,SATRA TM31,ISO 20344



7Efficient Martindale Testing Machine For Knitted And Woven Textile Samples 1Efficient Martindale Testing Machine For Knitted And Woven Textile Samples 2

FAQ
1.Question: How long does a new operator need for training?

- Answer: It depends on the operator's foundation and learning ability. Generally, it may take 1 - 2 days to familiarize with the basic structure and operating principles of the equipment. However, it may take 1 - 2 weeks of practical operation and study to master the complete test process and handle common problems proficiently.



2.Question: Do textiles with patterns or prints have an impact on the test?

- Answer: Patterns or prints may affect the test results because their materials and thickness may be different from those of the base fabric. If the printed part is relatively hard, it may accelerate the degree of friction during the abrasion test. It is recommended to try to avoid large - area complex patterns or printed parts when selecting the sample area, or conduct comparative tests on the patterned and non - patterned areas respectively.


3.Question: What will happen if the abradant is replaced during the test?

- Answer: Replacing the abradant midway will change the testing conditions, resulting in inaccurate results. Abradants have different wear - resistance properties, and the degree of friction on the sample will be different after replacement. If replacement is necessary, the test should be restarted, and detailed records should be made to explain the reason and situation of the replacement.








,FAQ
